| Prod Model: |
PAF-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
PA Mixer Amplifier |
| Type: |
PRO Audio |
| Power Supply: |
110~125V AC or 220~230V AC, 50/60Hz |
| Rated Power Output: |
4X30W |
| S/N Ratio: |
105db |
| Frequency Response: |
50~20, 000Hz(±3db) |
| Weight: |
12.2kg |
| Color: |
Black |
| Size(W*H*D): |
420X109X357mm |
| Working Temperature: |
-10 to +40 |
| Noise: |
≥105dB |
| Application: |
Industrial Places |
| Certification: |
UL |
| THD: |
0.005%-0.01% |
Product Description

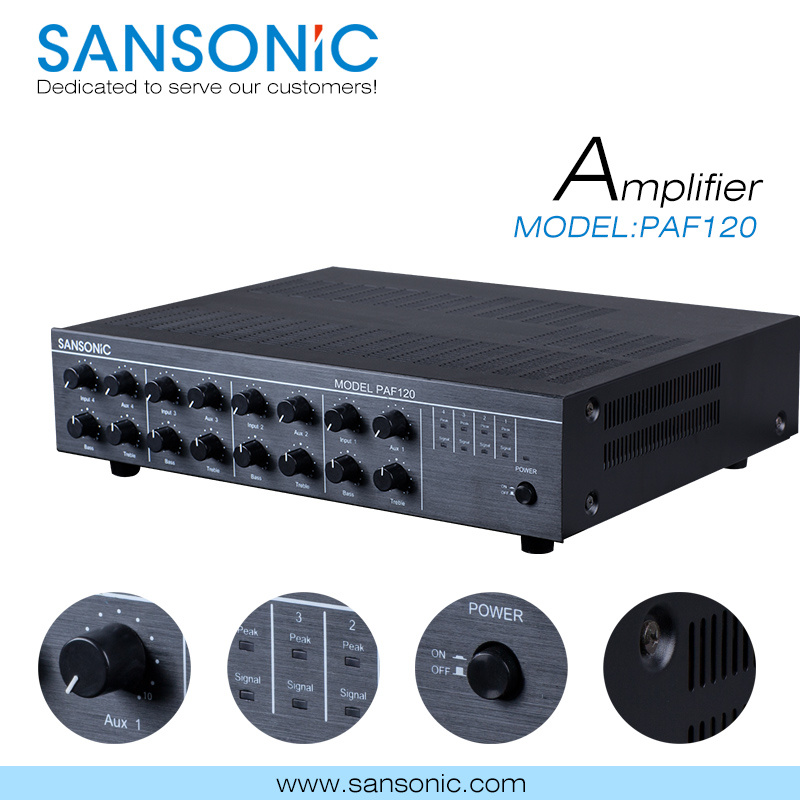

30w mixer amplifier pro audio amplifier
PAF120series is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 30W each line, four line in total, to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 17.5V,25V,35V,75V and 8ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. Input 1-4 line microphone balanced or linear balanced input, AUX1-4 line RCA linear input
3. 1-4 linear RCA output and pre linear output
4. Rated output 17.5V/25V/35V/75V and rated resistance output 8Ω;
5. signal lamp and peaking light display
6. Switch on/off lash the protection loudspeaker
Physic and environment parameter
Output
Pre Output1-4:0dB, 600Ω Unbalanced, RCA pin jack
Linear Output1-4:0dB, 600Ω Unbalanced, RCA pin jack
Linear Output1-4:High Impedance:70V,35V,25V,17.5V screw terminal
Input
Input 1 MIC1-4:3 ~ 10mV balanced Phenix Input
Input 1 Line/Tel 1-4:316mV (-10dBV) 10kΩ balanced Phenix
AUX 1-4:316mV (10dBV) 10kΩ Unbalanced RCA Summing Line
Port allocation:
1. Input 1~4 line microphone balanced or linear balanced input, input sensibility:linear 316mV microphone 3~10mV;
2. Aux 1~4 line RCA liner input, input sensibility: 316mV;
3. 8Ω,17.5V,25V,35V,75V output terminal multi-impedance output
4.1~4 linear RCA output 1V 600Ω;
5. 1~4 pre linear output 1V 600Ω;
Specification of pa mixer amplifier
MODEL
PAF120
Power Requiement
110~125V AC or 220~230V AC,50/60Hz,
Rated output
4X30W
Distortion
Less than 1% at 1kHz
Frequency Response
50~20,000Hz(±3dB)
Outputs
Pre-out 1-4
0dB,600Ω Unbalanced,RCA pin jack
Line out1-4
0dB,600Ω Unbalanced,RCA pin jack
Direct Out 1-4
High Impedance:70V\35V\25V\17.5V screw terminal
Low Impedance:8Ω screw terminal
Inputs
Input1 Mic 1-4
3 ~ 10mV balanced Phenix Input
Input1 Line/Tel 1-4
316mV (-10dBV) 10kΩ balanced Phenix
AUX 1-4
316mV (10dBV) 10kΩ Unbalanced RCA Summing Line
Leve
Operating Temperature
-10 to +40
Color
black
Dimensions(W*H*D)
420*109*357mm
Weight
12.2kg
