| Prod Model: |
E02-U0055 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
White |
| Power Cable Type: |
4pin |

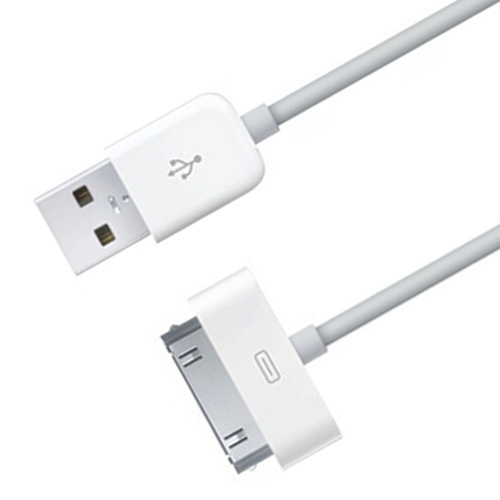

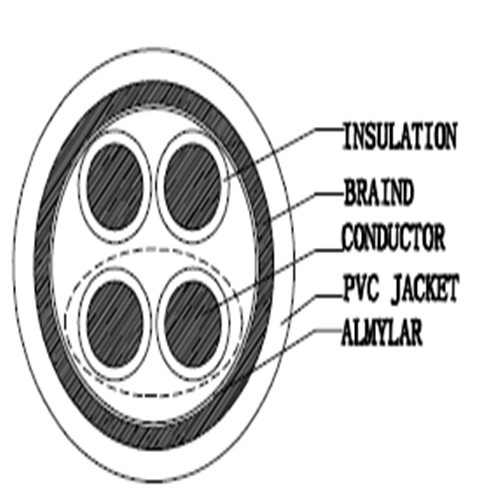

Product Description
:E02-U0055
1.StandardCompliance:
USB Specification R1.1 and R2.0
2.Features:
Plug and play technology,hot pluggable
High speed:480Mb/s;Full speed:12Mb/s;Low speed:1.5Mb/s
3.Electric Characteristics:
Attenuation (dB/Cable) | Frequency (MHz) | 0.064 | 0.0256 | 0.512 | 0.772 | 1.000 | 4.000 | 8.000 | 12.00 | 24.00 | 48.00 | 96.00 | 200.00 | 400.00 |
| USB1.0 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | - | - | - | - | - |
| USB1.1 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | 0.95dB | 1.35dB | 1.90dB | - | - |
| USB2.0 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | 0.95dB | 1.35dB | 1.90dB | 3.20dB | 5.80dB |
| lmpedancestry(Signal Pair) | Differential Mode(Zo) | 90 Ohm ± 15% |
Differential Mode(Zcm) | 30 Ohm ± 30% |
DC Resistance(From Plug Shell to Plug shell) | <0.5Ohm |
Propagation Delay(One Way)(TFSCBL) | 26ns/Cable(USB1.1;5.2ns/m(USB2.0) |

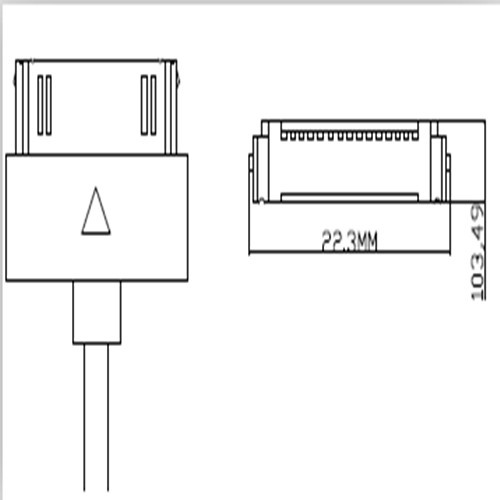

4.Connectors And PIN Assignment:| Connectors | PIN Assignment | | Connectors | PIN Assignment |
| Series A Plug | Contact Number | Signal Name | Typical Wiring Assignment | Mini-B Plug (5 PIN) | Contact Number | Signal Name | Typical Wiring Assignment |
| 1 | VBUS | Red | 1 | VBUS | Red |
| 2 | D + | White | 2 | D + | White |
| 3 | D - | Green | 3 | D - | Green |
| 4 | GND | Black | 4 | D | Not Connected |
| Shell | Shield | Drain Wire | 5 | GND | Black |
| | | | Shell | Shield | Drain Wire |
| Series A Plug | Contact Number | Signal Name | Typical Wiring Assignment | Mini-B Plug (4 PIN) | Contact Number | Signal Name | Typical Wiring Assignment |
| 1 | VBUS | Red | 1 | VBUS | Red |
| 2 | D + | White | 2 | D + | White |
| 3 | D - | Green | 3 | D - | Green |
| 4 | GND | Black | 4 | GND | Black |
| Shell | Shield | Drain Wire | Shell | Shield | Drain Wire
|
