| Prod Model: |
LR-30T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Style: |
Air Cooling or Water Cooling |
| Ice Style: |
Fresh Water Ice or Salt Water Ice |
| Ice Drum: |
Stainless Steel |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Ice Shape: |
Flake Ice |
| Certification: |
SGS |
| Condition: |
New |
Product Description

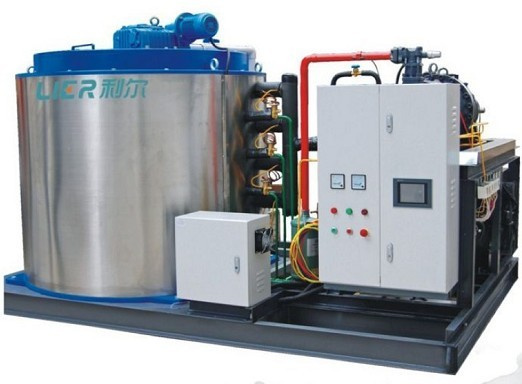

Lier industrial flake ice maker:
Widely used in the industrial field, such as seafood freshness keeping, meat product processing, fowl butchering preservation, dye chemical industry refrigeration, mines cooling, concrete mixing cooling, and so on machinery
Advantage:
A. Low failure and long working life: The System always runs well more than 30000 hours
B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
C. High efficiency & capacity
D. Superior safety and reliability: Dynamic micro-computer control system
E. Energy consumption saving
Power supply: 3P/ 380V / 50Hz and special power is also available
The ice thickness: 1.5-2.5 mm
The different types to meet your request.
1) Cooled Model: Air-cooled, Water-cooled, Evaporative cooling
2) Refrigerant: R22/ R404A / R717
3)Ice making: Fresh water, seawater
For more details, please kindly contact us!
| LR-30T Flake Ice Machine Parts List | LR-30T Flake Ice Machine Data |
| Name | Place Of Origin | Name | Data |
| Compressor | Bitzer | Daliy capacity | 30000kg/24h |
| Evaporator | LIER | Ref.Capacity | 210kw |
| Condenser | Union | Evaporating temp. | -22 |
| Expansion Vvalve | ALCO | Condensing temp. | 40 |
| Filter | ALCO | Standard ambient temp. | 25 |
| Dual-pressure controller | Leili | Standard water inlet temp. | 18 |
| Reducer | KOKI | Total power | 115.7kw |
| Cycle pump | LIER | Compressor power | 150HP |
| Infrared | RIKO | Reducer power | 2.5KW |
| Oil-gas separator | Emerson | Water pump power | 1.5KW |
| Gas filter | Fast | Air fan power | 2.7KW |
| PLC | LG | Power supply | 3P-380V-50Hz |
| Contactor | LG | Water supply pressure | 0.1Mpa-0.5Mpa |
| Thermal relay | LG | Refrigerant | R404A |
| Phase sequence protector | CIKACHI | Flake ice temp. | -8~ -5 |
| Air switch | CHINT | Net weight | 3240kg |
| Ice bin | LIER | Unit dimension | 3695*2090*2265mm |
| Ice scoop | LIER | Ice bin dimension | 4000*3000*2500mm |
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
