300W Solar System for Home Appliances
| Price: |
US $ 1-240/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
TY056B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Accepted |
| Warranty: |
18 Months |
| Color: |
Blue and White |
| Power: |
300W/500W/1000W |
| Application: |
Industrial |
| Specification: |
Mini |
Product Description

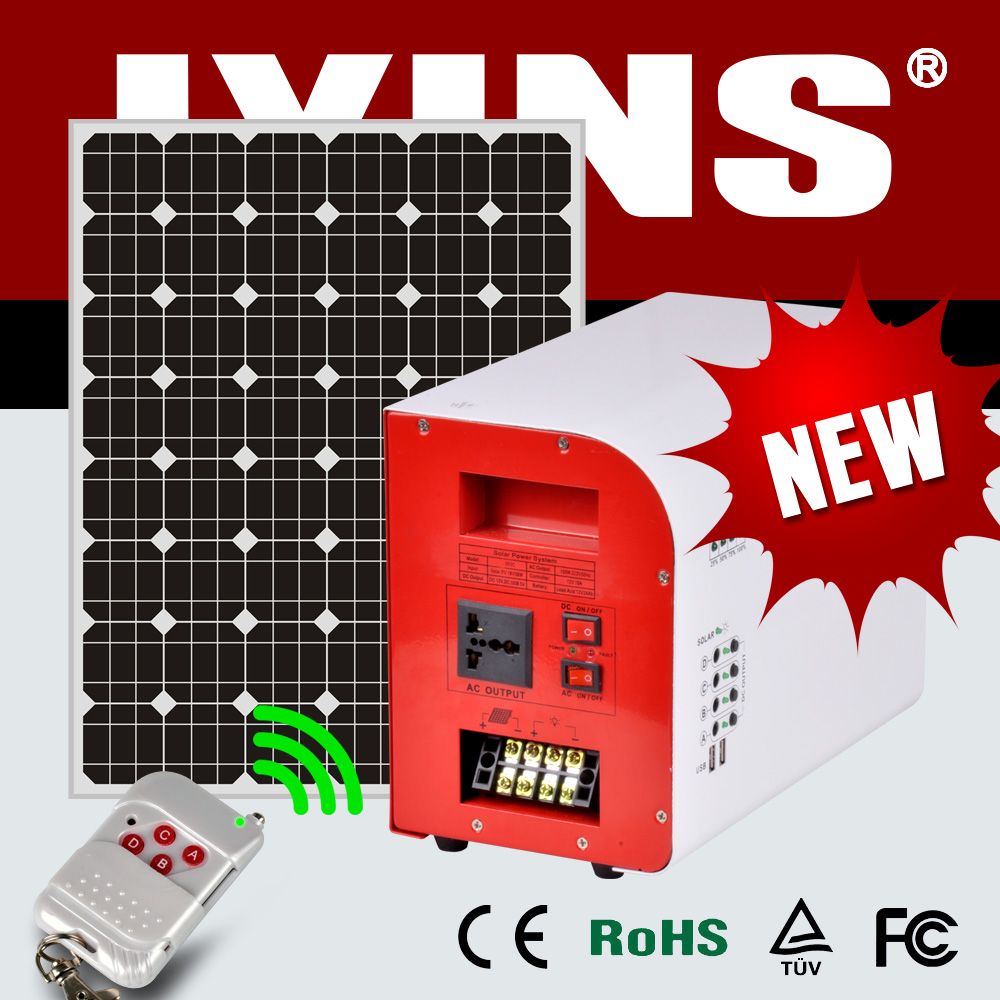

300w solar system for home appliances
This solar power kit can supply power for mobile phones, lights, fan, iron, tablet PC, laptop, printer, TV, Electrograph, washing machine, fridge, desktop computer, squeezer, etc.
| Product Name | Specification | TY056B |
| Solar panel | Model No. | TYP100W(poly crystalline) |
| Rated Maximum Power | 100W |
| Maximum Power | Voltage: 18 Vmp - Current: 5.55Imp |
| Open Circuit Voltage(Voc) | 21.24V |
| Short Circuit Current(Isc) | 6.11A |
| Maximum System Voltage | 1000V |
| Operating Temperature | -40ºC~+85ºC |
| Standard Test Conditions | 1000W/m2, AM1.5, 25ºC |
| Lead-acid battery | Nominal Capacity | 12V65AH |
| Solar controller | Rated Voltage(V) | 12V |
| Maximum charging current(A) | 10A |
| ChargeVoltage(V) | Floating charge: 14.4V,Equalizing charge: 13.8V |
| Voltage range (V) | 11-16.5V |
| Operating temp. | -40ºC~+60ºC |
| Inverter | Continuous power | 300W |
| Peak power | 600W |
| AC output Voltage(V)and Frequency | 110/220/240V ±10% ;50Hz ± 2% |
| Wave form | Pure Sine Wave |
| Input:DC 12V | Working Voltage:11V-15V |
| Efficiency :>93% | Overload Protection:300-360W |
| Thermal protection:≥60ºC | Cooling method:By fan |
| DC Low-voltage Alarm:9.5-11V | Fuse :40A |
| DC Low-voltage Protection:9-10.5V | DC Over-voltage Protection:≥15V |
| Green Led Indicator | Green Light(Working), Flash(Overload Protection) |
| Red LED Indicator | Red Light(Error Protection) |
| DC low voltage shutdown: less 9.5V | Over voltage shutdown:less 15.5V |
