| Prod Model: |
INL-PVDF |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
| Solar Collector: |
Flat Plate Solar Collector |
| Coating Of Solar Collector: |
Black Chrome Coationg |
| Size Of Solar Collector: |
2000*1000*80 |
| Tank Shell: |
Silver Fluorocarbon (PVDF) Plate |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Flat-plate |
| Certification: |
ISO9001 |
| Composition: |
Flat Plate Solar Collector, Water Tank |
Product Description

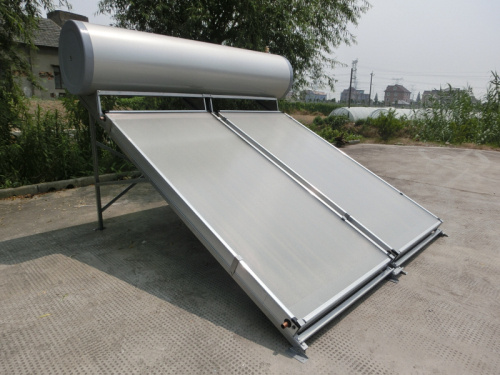

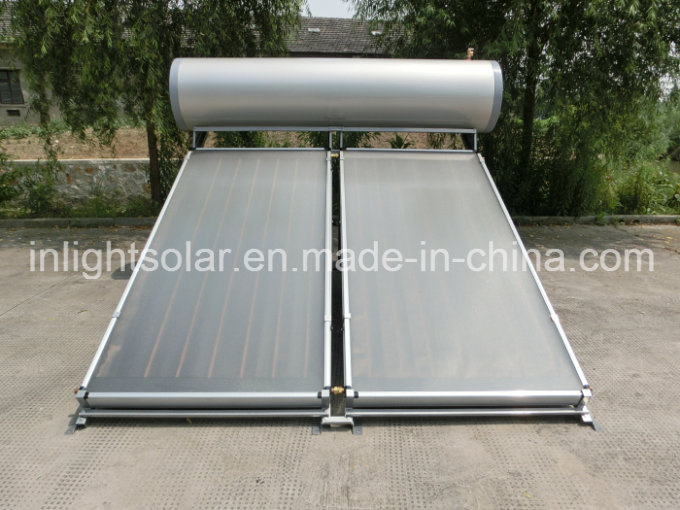

300L Pressurized Solar Panel Water Heater
Solar Panel Water Heater consist of Flat Plate Solar Collector,Flat Plate Solar Collector,Workstation, solar accessories tec.
Flat Plate Solar Collector:
1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.
2) Three high-tech methods of coating (Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your upper needs
3) Ultrasonic technology ensures seamless jointing of copper core and pipes
4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed
Pressurized Water Tank
1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures long lifespan (15 years) with good pressure bearing.
2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements.
3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly
4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable
5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating.
Workstation System:
1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve
2) More intelligent operation, when temperature discrepancy between collector and water tank reaches set value, the controller shall start the circulation pump automatically for heat exchange to raise the water temperature in storage tank
Accessories:
1) Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply
2) Anode magnesium Bar: Soften hard water in system so as to protect storage tank and copper coil from water scale effectively

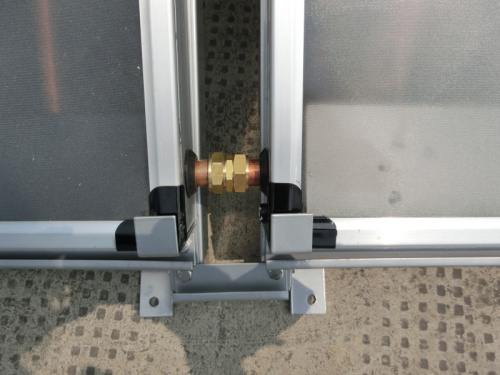

3) T/P valve, copper joints and collector clamps make their life as long as other parts of the system
Warranty: 3 years international responsibility for integrated system due to original quality problems
Certificate: CE, ISO9001: 2000, CCC
Flat Plate
Solar Collector | Spec. (mm) | 2000*1060*70 2000*1060*80 2000*1060*90 |
| Cover Glass | Tempered/ Tempered woven / tempered low-iron woven glass |
| Coating | Black Chrome |
| Core | All red copper core & pipes |
| Insulation | Glass wool + benzene plate/ Glass wool + polyurethane foam |
| Water tank | Capacity | 100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L |
| Inner tank | Food-grade stainless steel SUS304-2B |
| Copper coil | All red copper Φ 12 X 1.0mm |
| Insulation | Imported polyurethane integrated foam-forming 50mm |
| Tank shell | Color steel plate / Silver fluorocarbon (PVDF) plate/ Stainless steel |
| Bracket | Spec. (mm) | 1.2 ~ 1.5mm in thickness |
| Material | Hot-dip galvanized steel / Stainless steel / Aluminium alloy |
| Accessories | Workstation, Electrical heater, Magnesium rods, T& P valve |
| Pressure | 7 bar |
| Tilt angle | 0° ~ 90° |
| Water output | 45~95 o C |
