| Prod Model: |
P30A-10IPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
10.7million |
| Constrast Ratio: |
1000/1 |
| Response Time: |
8ms |
| Visual Angle: |
178° |
| Input Interference: |
VGA, DVI, HDMI, Dp |
| Luminance: |
370 CD/M2 |
| Panel: |
IPS LG Panel |
| Resolution: |
2560*1600 |
| DOT Pitch: |
0.25 |
| Output: |
Lvds Putput |
| Type: |
TFT |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:10 |
| Feature: |
LED Backlight Display |
| Screen Size: |
VGA, DVI, HDMI, Dp |
| Interface Type: |
VGA, DVI, HDMI, Dp |
Product Description

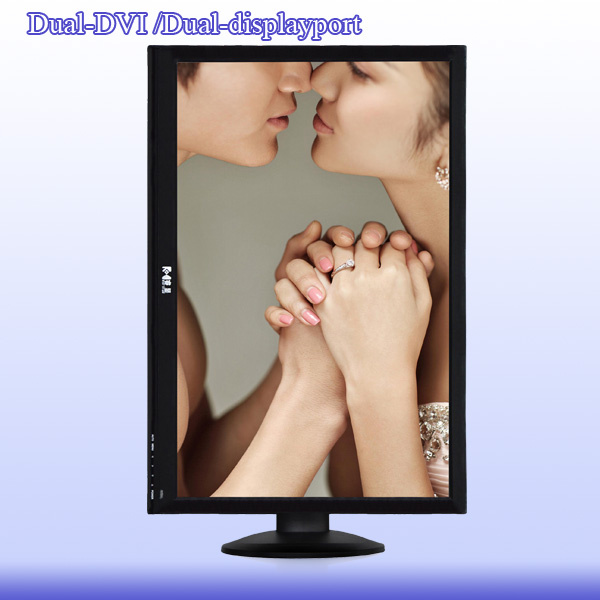

30 inch LCD monitor with VGA, DVI, HDMI and display port interferences
System requirement
Equipped with DVI-D, VGA, HDMI, NETBOOK
WINDOWS/NT/2000/XP/VISTA/7
Provide DVI-D or VGA or HDMI ports PC or NETBOOK
WINDOWS/NT/2000/XP/VISTA/7
RX display passed below design to reduce the impact of environment.
Not contain arsenic display glass
Not contain mercury
(BFR)Not contain bromination BFR
Not contain (PVC) 1
Highly recyclable aluminum and glass shell
Earn CCC
Display
30 inch (Visible picture diagonal size)
Thin film filed effect transistor (TFT)
Active matrix LCD, equipped with an in-plane swithching (IPS) technology.
Port of HDMI is supported
Limited warranty and serve
RXLCD 30 inch monitor has semi-annual toll free call support and one year warranty period.
RXLCD 30 inch monitor
AC power line
DVI-D (dual-link) +VGA wire
Power adapter
Pedestal and sustain parts
User's manual
|
Height |
44.3cm (17.5inch) |
|
Width |
68.5cm (27inch) |
|
Depth (with standard) |
5.4cm (2.1inch) |
|
Support resolution |
2560 x1600pixel,1920x1200pixel , 1280x800pixel |
|
Color (maximum) |
10.7million color |
|
Aspect ratio |
16:10 |
|
Visual angle |
178 °horizontal; 178°perpendicular |
|
Luminance (standard) |
Luminance (standard): 370cd/m 2 |
|
Contrast ratio (standard) |
1000:1 |
|
Response time |
8ms |
|
Speaker |
build-in |
|
Speaker system |
less than 2w
|
|
Input voltage |
100V to 240V AC; 50-60HZ |
|
Maximum power consumption |
120W (10 0% when the white screen brightness) |
|
Energy conservation made |
1.5W or under |
|
Operating environment |
10°C to 35°C (50°C to 95°F) |
|
Storage temperature |
-20°C to 47°C (-4°C to 116°F) |
|
Relative humidity |
20 % to 80% among non condensation state |
|
The highest use seal level elevation |
3,000m (10,000 feet) |
|
certification |
CCC |
