| Prod Model: |
EM-400140/M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
3 Wires Surveillance Earpiece for Motorola Radios |
| For Radios: |
Gp328/Gp338/Gp339/Gp340/Gp680/Ht1250/PRO5150, etc |
| Connector: |
M1 Connector for Motorola 2 Pin Radios |
| Material: |
Surgical Grade Acoustic Tube |
| Cable Material: |
Environmental PU Cable Reinforced with Kevlar |
| Application: |
Swat, Police, Fire Fighter, etc |
| Use For: |
Two Way Radios Communication |
| Communication: |
Wired |
| Functions: |
Microphone |
| Warranty: |
10 Months |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
One Size |
| Wire Material: |
PU |
| Jack Type: |
K3 Single Pin Connector |
| Use: |
Two Way Radios/Walkie Talkies |
| Color: |
Black/Beige |
Product Description

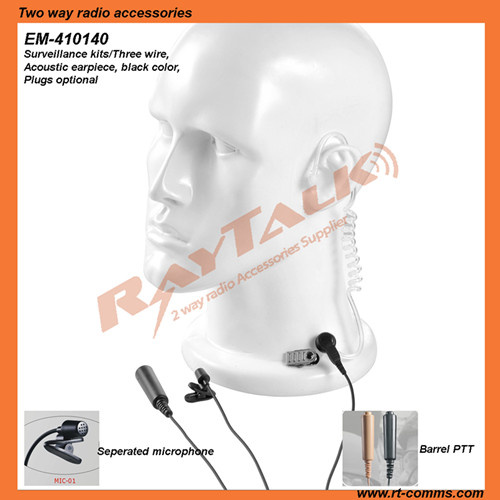

3 Wires Surveillance earpiece for Motorola radios GP328/GP340/GP380Feature:
1, Acoustic clear tube earpiece
2, #40 Barrel PTT design make holding in the palm of hands for easy operation
3, All units feature heavy grade industrial jacketed cables and excellent strain relief for maximum life
4, Designed for surveillance, security, public safety, etc
5, Compatiable for Motorola, Kenood, HYT, Vertex, Icom... Two way radios
6.Designed for high level of covert communications.
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
