| Prod Model: |
YMR-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Brief Introduction:

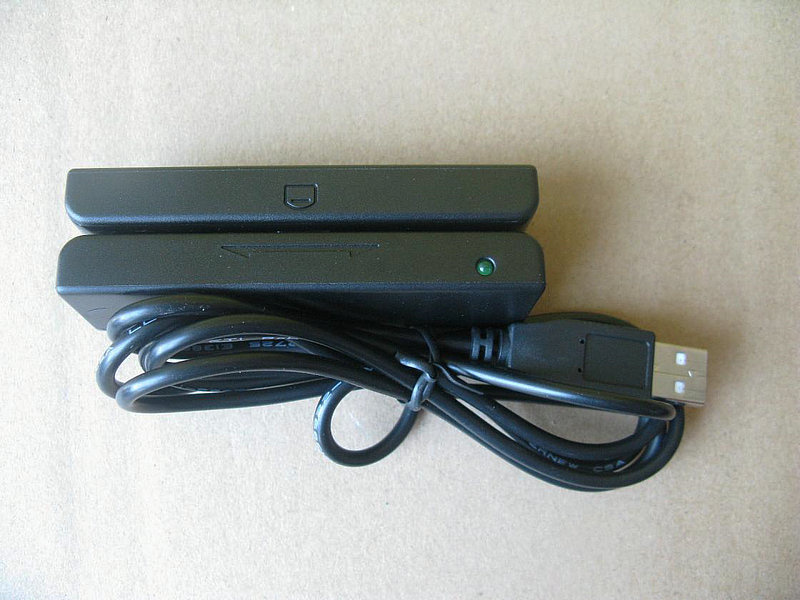

This products are hand swipe operated magnetic card reading machine with USB interface, adopting high integrated magnetic card decoding chip. They have small electricity consumption and strong interference resistance. They comply with ISO-7811\7812 magnetic card decoding standard completely. It can read card bi-directionally, free to choose data with or without enter key and has intelligent lights to alert if card data is read correctly. Exquisite magnetic installation structure makes card reading more stable and reliable, which is our patented technology. Reasonable product design makes products small and compact.
2. Technical Feature:
Bi-direction card reading, high capacity program design, high card reading ability. Can free to choose enter key between data of each track. Can customize tract starting character. 3-Dimensional magnetic head design makes magnetic head contact well with cards, and ensures cards to have least abrasion.
Adopting arm suspension type magnetic head assembly method enables machine with soft elasticity and good hand feel. Elasticity will not change in 10, 000, 000 times, which greatly increases life span of magnetic head.
Installing magnetic head in the magnetic head box makes track position of magnetic head more precise to ensure success card reading rate, and appearance of product looks more beautiful.
Specific integrated circuits guarantee AMP 15% of the card can work properly. Dual-track static current of the whole machine is below 4mA/5V. Strong interference resistance.
Precise electric circuit disposition can read high magnetic card at 4000Oe completely.
Magnetic head adopts platinum manganese alloy material, which makes it life span over 800, 000 times.
3. Lights indication:
1. When power connects well, indication light will show green.
2. When card swiping succeeds, indication light will blink one time.
3. When card swiping fails, indication light will blink continuously three times.
4. Caution during operation:
1 Cards should be inserted in the designated direction, and the speed of card inserting should be almost same.
2 Cards using on the standard machine should comply with ISO7811.
3 Magnetic track on the card should not have foreign material, scratch or incompatible default
4 Cards should not put in the position close to magnetic iron to avoid degaussing to card signal.
5 If you need to change the usage of products, please contact us or operate by technical person.
6 If you swipe card too hard or have trouble in swiping card, please clean magnetic head (Use cleaning cards).
5 Application:
1 POS terminal
2 Membership management system
3 Inquiry system
4 ID authentication
|
Magcard standard |
ISO7811/7812 |
|
Magnetic track position |
ISO1(1ATA) |
ISO2(ABA) |
ISO3(MINTS) |
|
Recording density |
210BPI |
75BPI |
210BPI |
|
Recording characters |
79 characters |
40 characters |
107 characters |
|
Power supply |
DC+5V± 5% |
|
Current |
65mA(max) |
|
Magnetic head function |
Read magnetic track width: 1.5mm |
|
Card thickness |
PVC 0.76± 0.08mm |
|
swipe speed |
15~120cm/sec |
|
Accuracy rate |
Above 99.5% |
|
Telecom Interface |
USB interface |
|
Operation location |
Indoors |
|
Head life |
800.000 passes |
|
Weight/Size |
About 100g/90*27*25mm |
|
Cabel length |
About 145cm |
