| Prod Model: |
Y-J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Eer: |
2.41 |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

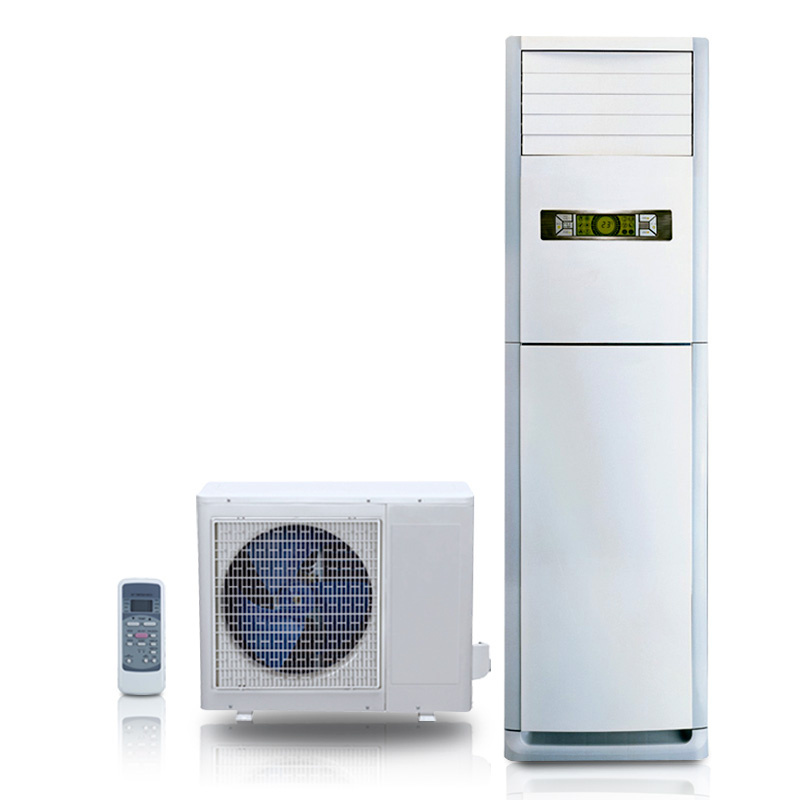

3 Tons Floor Stand Air Conditioner With Rotary Compressor
Feature
1. Cold catalyst technology
2. The setting of timed switch-on/off can be made according to the end-user's needs
3. Currugate high effcient filter screen
4. Independent de-humidifying
5. Intelligent control, easy opration
6. Intelligent defrosting
7. Air exchange device
8. Extra quiet operation
9. Hydrophilic film aluminum foil
10. Super-quality internal threaded copper pipe
11. Saw-teeth fan wheel design for noise reduction
12. Auxiliary electric heating system
13. Three-dimensional swinging pattern air delivery technology
14. Sleep mode operation
15. Multi-folds evaporator
16. Elaborate designing, highly efficient refrigeration
Specification
| Power supply | Ph-V-Hz | 1Ph, 220-230V~, 60Hz |
| Cooling | Capacity | Btu/h | 36000 |
| Input | W | 4400 |
| Rated current | A | 21.6 |
| EER | W/W | 2.41 |
| Moisture Removal | L/h | 3.8 |
| Max. input consumption | W | 5000 |
| Max. current | A | 25 |
| Starting current | A | 98 |
| Refrigerant type | g | R22/2300g |
| Design pressure | MPa | 2.6/1.0 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ12.7/Φ19(1/2"/3/4") |
| Max. refrigerant pipe length | m | 25 |
| Max. difference in level | m | 10 |
| Connection wiring |
| - - |
| Plug type |
| - - |
| Thermostat type |
| Remote Control |
| Operation temp | ºC | 17-30 |
| Ambient temp (cooling/heating) | ºC | 18-43/---- |
| Application area | m2 | 51-85 |
