3.0" Rugged Airborne TFT LCD Display for Aviation Displays
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
ZXD-030P0700-J1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Military Field |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
3.0" |
| Aspect Ratio: |
1:1 |
| Optimum Resolution: |
480X480 |
| Interface Type: |
RS422 |
Product Description
Product Name3.0" Rugged Airborne TFT LCD Display for Aviation DisplaysProduct Function and PerformanceResolution: 480x480 pixels
Brightness: Max Brightness>700cd/m2 , Min Brightness<0.17cd/m2
Contrast ratio: more than 200:1
110000Lx illuminance contrast: more than 3:1
Coordinate of white field color: U'=0.18±0.015, V'=0.48±0.015
White color temperature: 6400K~7800K
Work temperature: -45ºC~+60ºC
Communication interface: RS422
Vibration: Meet GJB 150-86 standard
EMC: Meet GJB151A-97 requirementsTechnical Features

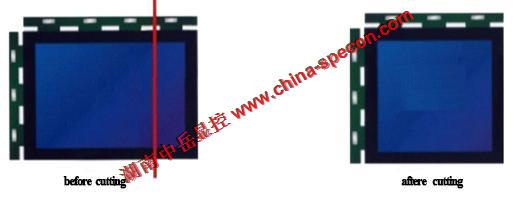

1), LCD screen secondary cutting technology
2), Optical bonding technology
No bonding Bonding3), High brightness backlight technology
The highest brightness can reach 2000 CD/m2 and can reach 20000 CD/m2 at
some special military occasions;4), Specifical image drive board and low-consumption mainboard design
technologies for military aviation, marines and ships;5), Extremely low and high working temperature: -45ºC~60ºC;6), The Anti reflection coating (AR) and ITO EMI two-in-one glass; 7), Full night-vision compliance (optional); 8), Shimmer night vision, the minimum brightness can achieve 0.17 nit; 9), Infrared night vision (with double backlight design), comply with MiL- L3009,
Type 1 Class B for Multi - Color (according to the customer request custom); 10), BIT technology; 11), Low air pressure technology;12), Ultra-low power consumption technology;
13), Supporting 4 line, 5 line resistance touch function, or Surface acoustic wave
touch screen (optional);
14), High reliability and security;
Hunan Zhongyue Display Control Technology Co., Ltd is a high-tech joint-stock enterprises, specialized in research and development, production and technical service for military products. The company, founded in 2013, covers an area of 2000 square meters, having 20 million RMB registered capitals. At present, we have more than 40 employees and most of them have great experience in the field of military industry. We have a mature and solid team and have become an excellent military products supplier after many years of experience.
R&D capabilities and production capacity of our company at a leading position in the same industry, has assumed a large number of military and national defense scientific research mission. Our company has made a large number of high-level results in display technology, graphics display control card and military board field, with a number of patented technologies of independent knowledge ownership, such as: Low temperature transparent heating technology, highlighting dual LED backlight technology, optical bonding technology, multi-PIP technology, ultra-low power consumption dual-core three-display CPCI mainboard. Our company has sophisticated LCD screen secondary cutting technology platform, optical bonding technology platform, LED backlight technology platform, sophisticated image processing technology and high reliability military board technology that the monitor, graphics display control and all kinds of military boards can be customized according to customer requirements of different shapes, different sizes, different brightness and different resolution or other special requirements.
Currently, rugged LCD display module and graphic image display control card developed and produced by our company has been widely used in airborne, vehicle, ship and other military fields as well as airports, railway stations and outdoor display equipment and other civilian areas. The display size from 0.63 inch to 65 inch and resolution from 480X480 to 4096X2160 full-coverage. High product reliability, has been highly praised by customers and military. The display drive technology of our company lives in the national front. Among them, large-size high-resolution rugged display with resolution 4096X2160 becoming the earliest company successfully developed this resolution LCD drive technology by EPGA. 0.63-inch, 1-inch and 1.8-inch image display source are successfully used in airplane head-up system and helmet head system. In addition, the company has developed a variety of 3U, 6U series ARM, X86, POWERPC architecture low-power motherboard. All boardcards are embedded with complete BIT fault diagnosis. At the same time, we also produce display and control platform, all-in-one microcomputer, military notebook and other variety of electronic devices.
To allow users to enjoy a more simple, quick and more comprehensive services, through the integration of application of innovative hardware and software integration technology, our products and application solutions of the same strain, allowing users to system compatibility, stability, reliability and maintainability greatly enhanced.
In the future, we will grasp all opportunities to achieve company development sustainably and scientifically, making ourselves better contribute to national defense.
