| Prod Model: |
ICM-300N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Commercial |
Product Description

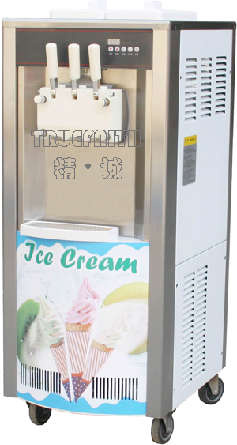

Soft Ice Cream Machine
3-selection Series Stand style
Model No. # ICM300N
Description:
1. Capacity: 18~46 L/H
2. Flavors: Three flavors
3. Cooling Vat Capacity: 1.9L*2
4. Hopper Capacity: 4.3L*2~6.5L*2
5. Power Supply: 220V/110V, 50Hz/60Hz
6. Power: 1.9 ~ 4.2 KW
7. Compressor: Chinese Dongbei, or Italian brand, or French brand
8. Refrigerant: R22/R404a
9. Cooling mathod: Air cooling
10. Weight: 165~230KG (net)
11. Machine Dimension: 54*73*(138~153)cm
12. Packing: Plywood Case
13. Packing size: 61*84*(162~177)cm
Optional parts -
1. Inflatable Valve
2. Single refrigerating box
3. Air pump
4. Operating platform
Features -
1. Micro-computer controllde sustem with the temperature digitally shown
2. Equipped with the leading completely-sealed comperssors
3. Highly-efficient fast-cooling evaporator with speedy direct-cooling method and excellent effect of low temperature
|
Model |
ICM-318T |
ICM-326T |
ICM-318 |
ICM-326 |
ICM-336 |
ICM-346 |
|
Output |
18—20L |
26—30L |
18—20L |
26—30L |
36—40L |
46—50L |
|
Power Supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
Power |
Agitation |
1100W |
1100W |
1100W |
1100W |
1500W |
1500W |
|
Refrigeration |
750W |
1125W |
750W |
1125W |
1313W |
1500W |
|
Fan Motor |
75W |
75W |
75W |
75W |
75W |
75W |
|
Dimension |
L |
535mm |
535mm |
535mm |
535mm |
535mm |
535mm |
|
W |
730mm |
730mm |
730mm |
730mm |
780mm |
780mm |
|
H |
850mm |
850mm |
1380mm |
1430mm |
1480mm |
1530mm |
|
Volume of Cooling Vat |
1.9L*2 |
1.9L*2 |
1.9L*2 |
1.9L*2 |
2.3L*2 |
2.3L*2 |
|
Volume of Preserving Barrel |
6.5L*2 |
6.5L*2 |
6.5L*2 |
6.5L*2 |
12.5L*2 |
12.5L*2 |
|
Refrigerant |
R22/404a |
R22/404a |
R22/404a |
R22/404a |
R22/404a |
R22/404a |
|
Cooling Method |
Air cooling |
Air cooling |
Air cooling |
Air cooling |
Air cooling |
Air cooling |
|
Expansion Rate |
40% |
40% |
40% |
40% |
40% |
40% |
|
Evaporator |
Stainless Cooling Vat |
Stainless Cooling Vat |
Stainless
Cooling Vat |
Stainless
Cooling Vat |
Stainless
Cooling Vat |
Stainless
Cooling Vat |
|
Net Weight |
150 Kg |
155 Kg |
155Kg |
160 Kg |
165 Kg |
170 Kg |
|
Attention |
Pre cooling or Gas Pump |
Pre cooling or Gas Pump |
Pre cooling or Gas Pump |
Pre cooling or Gas Pump |
Pre cooling or Gas Pump |
Pre cooling or Gas Pump |
|
Loading |
20GP |
54pcs |
54pcs |
27pcs |
27pcs |
27pcs |
27pcs |
|
40GP |
120pcs |
120pcs |
57pcs |
57pcs |
57pcs |
57pcs |
