| Prod Model: |
ME |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
3 Channels Transformer |
| Frequency Response: |
20Hz-20kHz |
| Safe Protection 1: |
DC Protection |
| Safe Protection 2: |
Short Circuit Protection |
| Safe Protection 3: |
Sensitivity Overheating Management System |
| Safe Protection 4: |
Overheat Protection |
| Safe Protection 5: |
Input Overload Protection |
| Safe Protection 6: |
Output Overload Protection |
| Safe Protection 7: |
Soft Start Protection |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Usage: |
Professional Performance |
| Sound Channel: |
3 Channels |
| Output Number: |
3 |
| Voltage: |
AC220V or AC110V |
Product Description

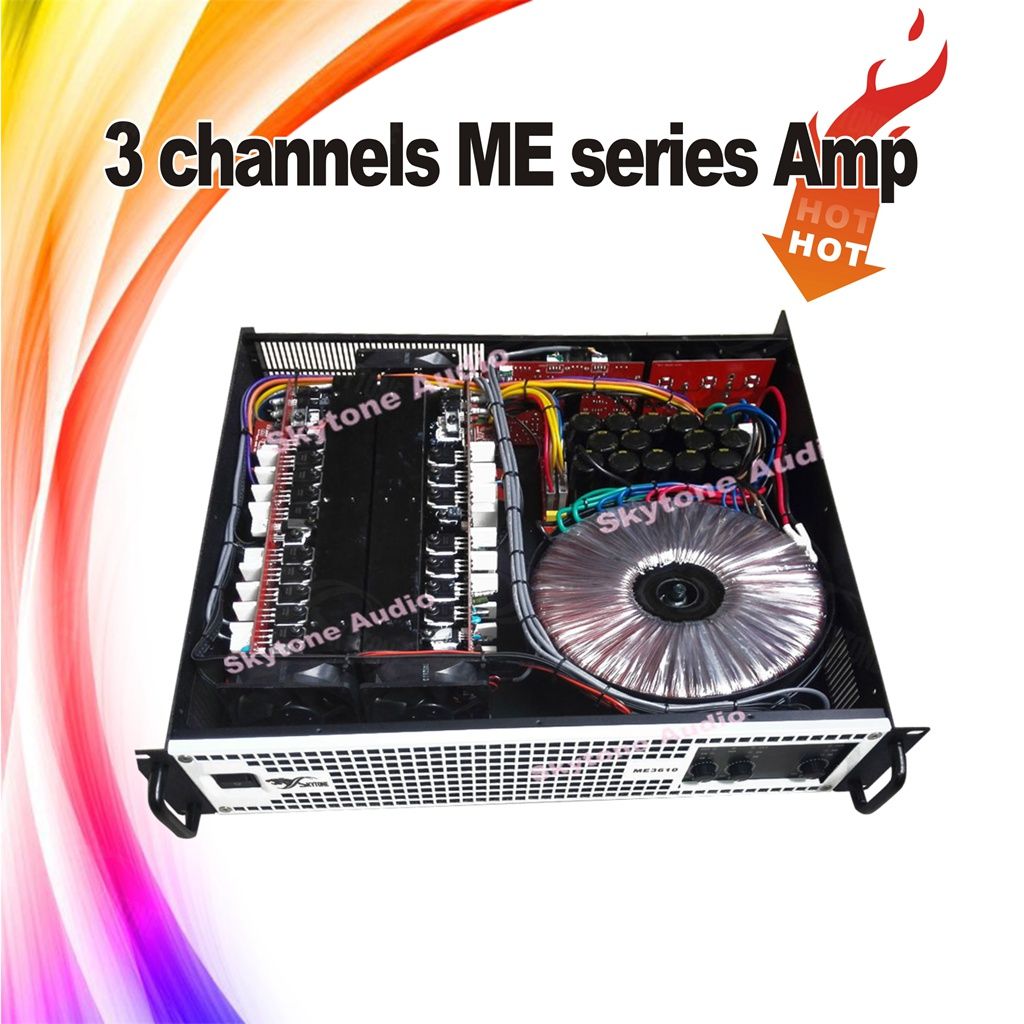

3 channels power amplifier(ME series)
power amplfier
3 channels amplifier
ME series power amplifier are the new product of Skytone audio.
Features:
excellent quality
3 channels power amplifier
nice appearance
| Technical Specification | ME340 | ME360 | ME3306 | ME3408 | ME3610 | ME3812 | ME3602 |
| (20Hz-20KHz,≤0.1%THD) (rated power) | 4 ohms Bridge | CH1+CH2=1600 | CH1+CH2=2400 | CH1+CH2=1400 | CH1+CH2=1600 | CH1+CH2=2300 | CH1+CH2=2600 | CH1+CH2=2300 |
| 8 ohms Bridge | CH1+CH2=1300 | CH1+CH2=1900 | CH1+CH2=1200 | CH1+CH2=1300 | CH1+CH2=1800 | CH1+CH2=2200 | CH1+CH2=1800 |
| 8 ohms Stereo | 400W*3 | 600W*3 | 300W*2+600W | 400W*2+800W | 600W*2+1000W | 800W*2+1200W | 600W*2+200W |
| 4 ohms Stereo | 700W*3 | 900W*3 | 500W*2+900W | 700W*2+1200W | 900W*2+1400W | 1150W*2+1700W | 900W*2+600W |
| 2 ohms Stereo | 920W*3 | 1200W*3 | 700W*2+1150W | 900W*2+1500W | 1200W*2+1700W | 1400W*2+2200W | 1200W*2+800W |
| Max peak | 4 ohms peak | 900W*3 | 1150W*3 | 800W*2+1000W | 900W*2+1600W | 1200W*2+1600W | 1300W*2+2000W | 1100W*2+700W |
| (safe protection) | Dc protection | √ |
| Short circuit protection | √ |
Sensitivity overheating
management system | √ |
| Overheat protection | √ |
| Input overload protection | √ |
| Output overload protection | √ |
| Soft start protection | √ |
| Limiting protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±0.5dB) |
| Sensitivity(8ohms 1KHz) | 0.775v26/36dB |
| Link | Input link | XLR |
| Output link | SPEAKON |
| Input impedance | Balance input | 20Kohms |
| Unbalanced input | 10Kohms |
| String sound attenuation(20Hz-20KHz,8ohms) | ≥68dB | ≥65dB | ≥65dB | ≥63dB | ≥62dB | ≥60dB | ≥60dB |
| S/N(Rated power:8ohms) | ≥112dB | ≥110dB | ≥108dB | ≥108dB | ≥108dB | ≥106dB | ≥105dB |
| Damping coefficient(1KHz&8ohms) | ≥600 | ≥750 |
| Intermodulation distortion(20Hz-20KHz) | ≤0.02% |
| Total harmonic distortion(20Hz-20KHz) | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% |
| Phase response(1W&8ohms,20Hz-20KHz) | ≤±3º | ≤±3º | ≤±3º | ≤±3º | ≤±3º | ≤±3º | ≤±5º |
| Conversion rate | ≥35V/μs | ≥60V/μs |
| Output circuit type | AB | H+II |
| Power consumption | 2.5A | 3A | 3.6A | 4.2A | 4.8A | 5.2A | 6.8A |
| Installation space | 2U |
| Cooling system | intelligent system, automatic adjustment according to changing temperature |
| Size(W×H×D) | 482Wx 495Dx 88H |
| Net Weight | 16kg | 17kg | 19kg | 22kg | 23kg | 24kg | 26kg |
