| Prod Model: |
VX-S99821A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
<5 Inches |
| Application: |
Household Appliances Related |
| Screen Type: |
Capacitive |
Product Description

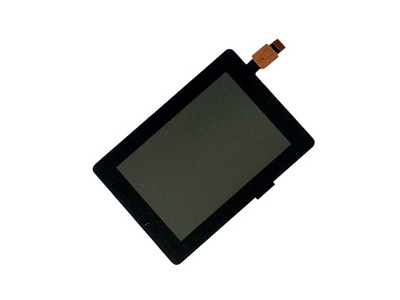

3.5inch 320*480 TFT with capacitive touch screen moudle
Outline Size: 66.86*94.94*3.4mm
Active Area: 48.96*73.44mm
TFT viewing angle: 6 clock
Interface: 18bits RGB+SPI
CTP outlinesize: 66.86*94.94
CTP VA: 74.94*50.36
SENSOR Glass: 0.4 mm
Cover glass: 0.7 mm
Total thickness: 4.1mm
Operating voltage: . 2.8V-3.3V
Transmittance; 86%
Surface hardness: 6H
TFT driver IC: HX8357D
Mstar touch controller: MSG2133A, , touch can be realized with water, extreme environment can also be used.
Working environment: -20' ~ +70', ≤ 90% RH
Storage environment: -30 ' ~ +80 ', ≤ ; 90% RH
Victronix Science and Technology Ltd. Is a professional LCD & touch panel supplier, dedicated to provide professional solutions to customers with good service and support. Victronix has number of advanced LCM automatic and semi-automatic production lines in our factory, which can produce LCM from 1.77inch-65inch. We have a professional design, management team, perfect quality management system, experienced stall, as well as pioneering and innovative enterprise culture. Company products are widely used in industrial control system, portable handheld equipment, medical instruments, financial POS, GPS navigation, security monitoring system and intelligent Home Furnishing ect.
More than ten years of service in the industrial and medical fields, has been successfully provide or assist in the development of hundreds of high-end products for global customers.
Those achievements own to all the R&D engineers of Victronix, and combine with new technology application, creative product design, effective productions and focusing on customers.
Our Capacitive Touch Screen can be achieved AG(ani-glare), AR(anti-reflection), AF(anti fingerprint)effect, also support touch with water, touch with gloves, multi touch and other requirements of product for the customer to choose.
'' Survive by quality, service and development'' is the purpose of our development, our products passed RoHS testing, meet the requirements of enviromental protection.
In order to further enhance the company's overall customer service level, we have built strategic cooperation with Varitronix and Success. Varitronix Ltd. Was founded in 1978, customers are all over the world in various fields, the main customers are: Mercedes Benz, Toyota, Audi, Porsche, Toshiba, Siemens, GE, Omron etc.
