| Prod Model: |

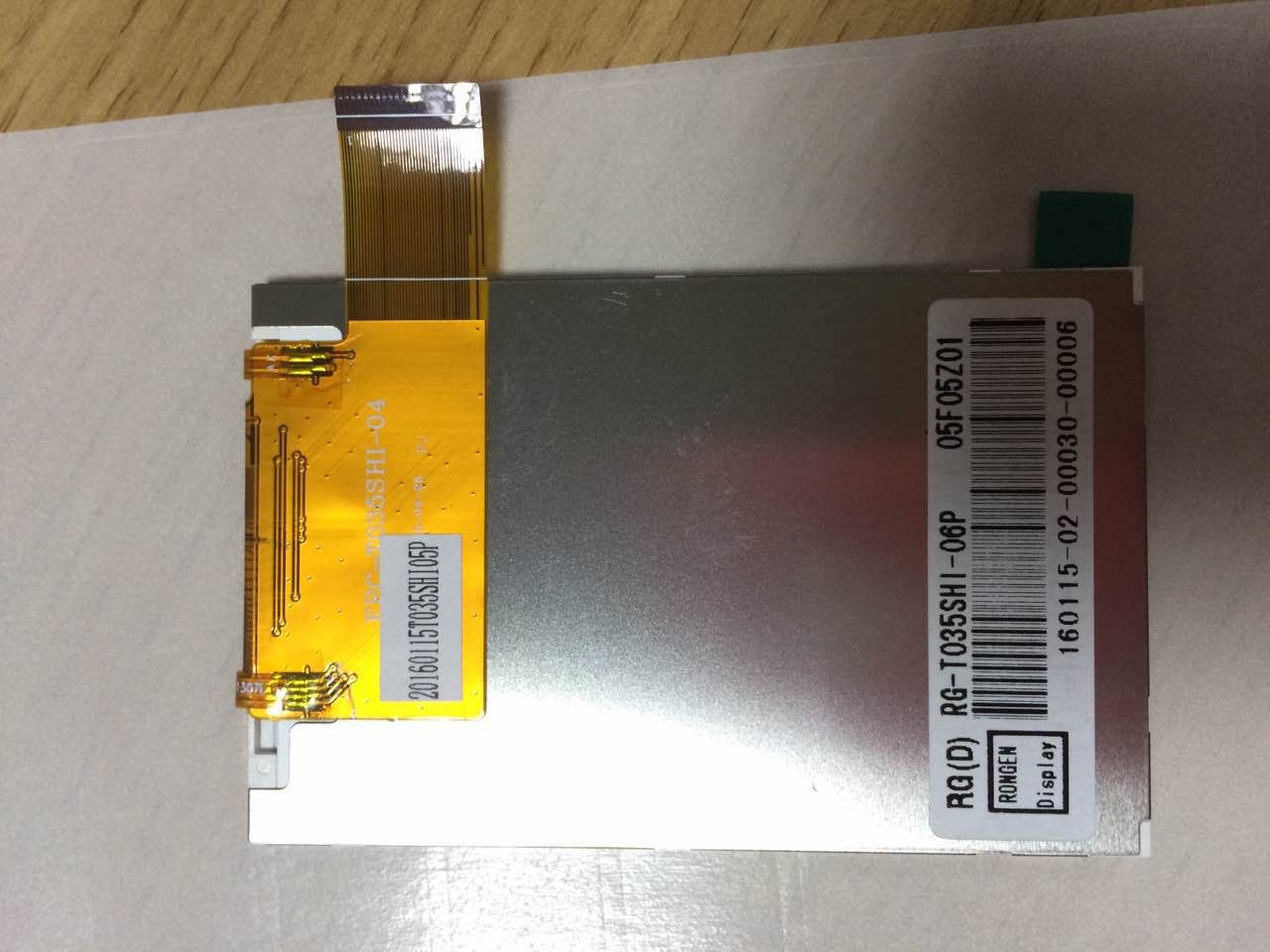

RG-T035SHI-06P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Rongen |
| Resolution: |
320(RGB)X480 |
| Luminance: |
280 CD/M2 |
| Contrast Ratio: |
500: 1(Typ. ) |
| Aspect Ratio: |
4: 3 |
| Size: |
3.5 |
| Active Area: |
48.96X73.44mm |
| Controller: |
Ili9488 |
| Backlight: |
6-LED |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |
Product Description
Brand: RONGEN
HS: 8528511000

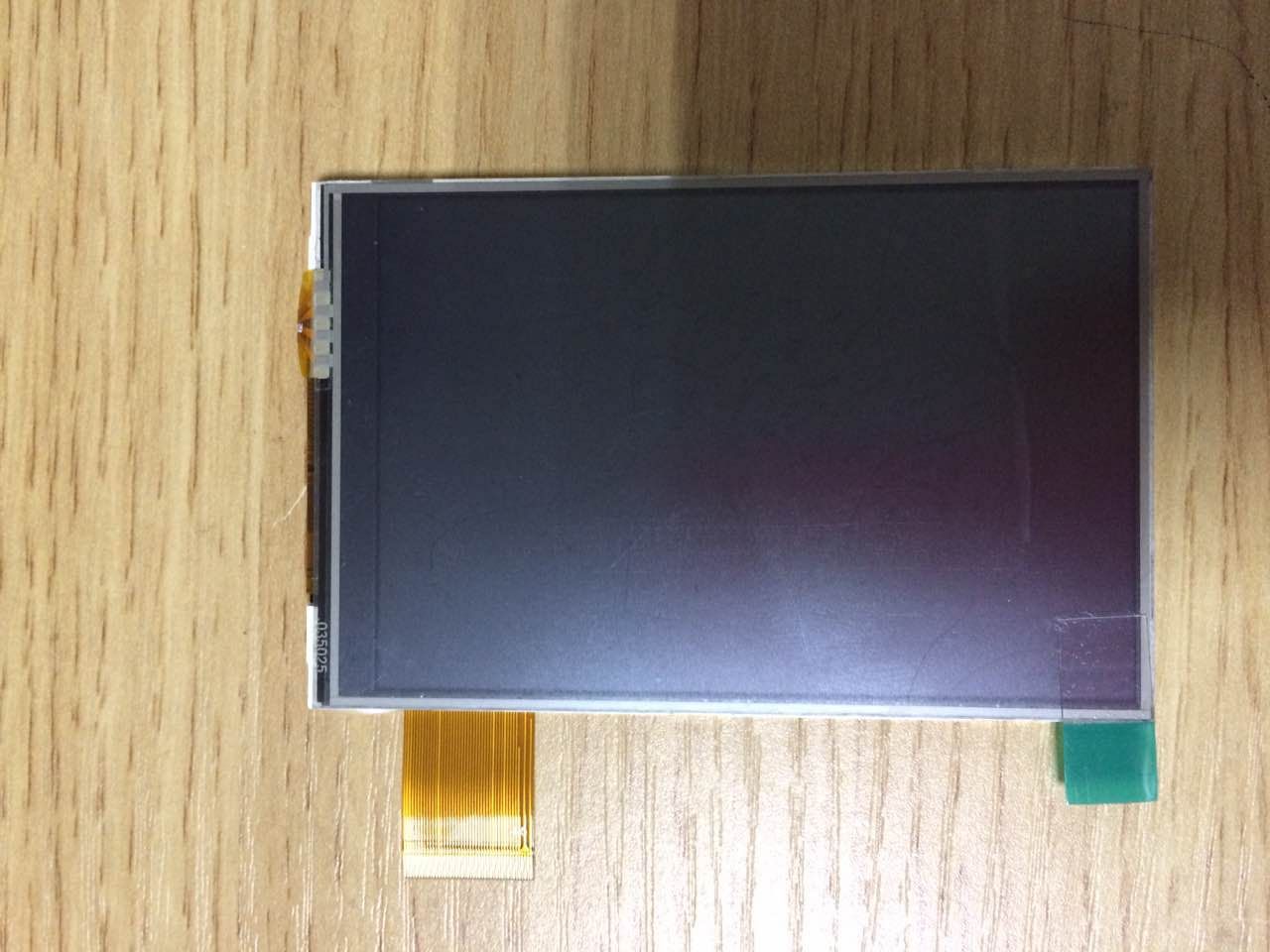

Spc: 3.5inch TFT LCD screens320x480 with RTP
Specification:
Screen Size: 3.5inch
Resolution: 320(RGB)x480
Luminance: 280 cd/m2
Contrast Ratio: 500: 1(Typ. )
Active Area: 48.96x73.44mm
Response time(ms): 25(yp. )(Tr+Td)
Viewing Angle: 60/60/40/60 (Typ. )(CR≥ 10)
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Electrical Interface(data): Parallel RGB
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
