| Prod Model: |
SP035GT-07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Capacitive |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |

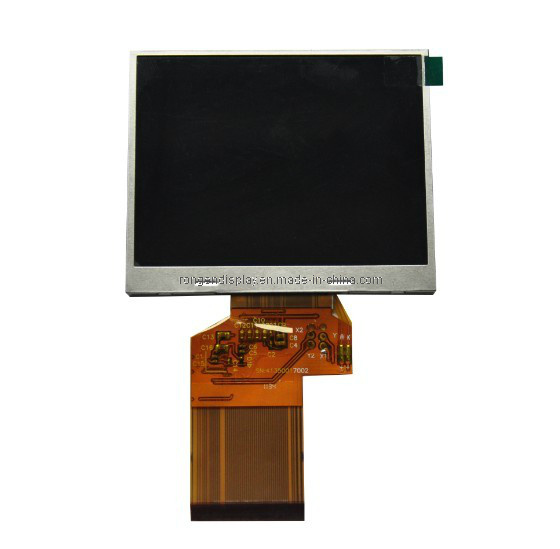

Product Description
Brand: RONGEN
LCD Size: 3.5inches
LCD Model: SP035GT-07
LCD Resolution: 320(RGB)x240
Specification:
Screen Size: 3.5inches
Resolution: 320(RGB)× 240
Luminance: 350CD/m2
Size: 76.9x63.9x2.95mm
Active Area: 70.08x52.56mm
Contrast Ratio: 500: 1(Typ. )
Response time(ms): 25(yp. )(Tr+Td)
Viewing Angle: 60/60/40/60 (Typ. )(CR≥ 10)
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Electrical Interface(data): Parallel RGB
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
