| Prod Model: |
PST035TLV-03P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5inch |
| Resolution: |
320RGB*240 |
| Interface: |
24 Bit RGB |
| Brightness: |
300CD/M2 |
| Viewing Angel Direction: |
60/60/40/60 |
| Contrast Ratio: |
350 |
| Application: |
GPS, Camcorder,Digital Camera |
| Type: |
LCM |
| Usage: |
Small-sized LCM |
| Display Technology: |
TFT |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
10ms |
| Customized: |
Customized |
Product Description

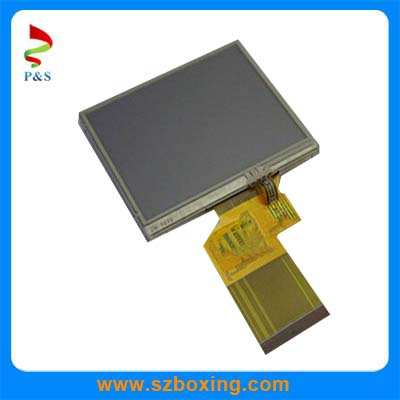

3.5 inch TFT LCD Module with resistive touch screen
1.Company Advantage
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
2. Application
3. Product processing
4. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
5. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
| Mechanical Specifications |
| Item | Specification | Unit | Remark |
| LCD Size | 3.5 | inch |
|
| Outline dimension | 76.9(W) ×63.9(H) ×3.2(D) | mm |
|
| Active area | 70.08(W) × 52.56(H) | mm |
|
| Dot pitch | 0.0219(W) × 0.219(H) | mm |
|
| Resolution | 320 × 3(RGB) ×240 | pixel |
|
| Absolute Max.Rating |
| Item | Symbol | Value | Unit | Remark |
| Min | Typ | Max |
| Supply voltage | VDD | -0.3 | 3.3 | 5 | V | – |
| Operating temperature | TOPR | -20 | – | 70 | Degree | – |
| Storage temperature | TSTG | -30 | – | 80 | Degree | – |
| Backlight Driving Conditions |
| Item | System | Condition | Value |
|
| Unit | Remark |
|
|
| Min | Typ | Max |
|
|
| Forward Voltage | Vf | If=20mA | – | 19.2 | – | V |
|
| Uniformity( with L/G) | Bp | If=20mA | 80 | – | – | % |
|
| Luminance for LCD | Lv | If=20mA | 20,000 | 3600 | – | cd/m2 |
|
| Item | Symbol | Condition | Values | Unit | Remark |
| Min. | Typ. | Max. |
|
| Viewing angle(CR≥10) | θL | Φ=180° | 50 | 60 | – | Degree |
|
| θR | Φ=0° | 50 | 60 | – |
|
| θT | Φ=90° | 30 | 40 | – |
|
| θB | Φ=270° | 50 | 60 | – |
|
| Response time | TON | Normal
θ=Φ=0° | – | 10 | 20 | msec |
|
| TOFF | – | 15 | 20 | msec |
|
| Contrast ratio | CR | 200 | 350 | – | – |
|
| Color Chromaticity | WX | 0.26 | 0.31 | 0.36 | – |
|
| WY | 0.283 | 0.333 | 0.383 | – |
|
| Luminance | L | 240 | 300 | – | cd/m2 |
|
| Luminance uniformity | YU | 75 | 80 | – | % |
|
