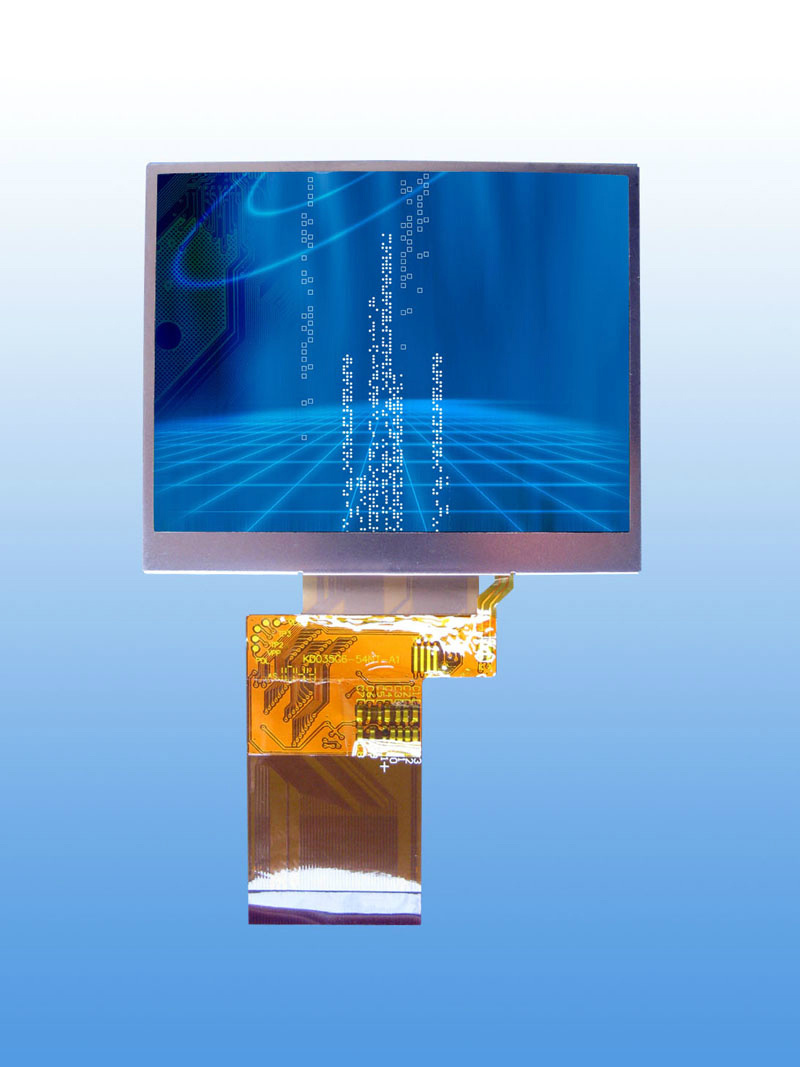

3.5" LCD Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
BD035HBHT4 LCD Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 3.5": |
TFT Module |
Product Description
Module Number : BD035HBHT4
Diagonal Size : 3.5 "
Resolution : 240x 320
Module Size (mm) : 64.00x85.00x4.10
Active Area (mm) : 53.64x71.53
Interface : 3-Wire SPI + 18 bit RGB
Polarizer : Transmissive
Backlight : LED (115 cd/m2)
Touch Panel:Yes
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
