| Prod Model: |
RG-T035MLQZ-01P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Rongen |
| Product Name: |
Rg-T035mlqz-01p |
| Size: |
3.5" |
| Resolution: |
320(RGB)X240 |
| Luminance: |
450CD/M2 |
| Contrast Ratio: |
500: 1(Typ. ) |
| Aspect Ratio: |
4: 3 |
| Screen Size: |
76.9X63.9X2.95mm |
| Operation Temperature: |
-20 ~ 70 |
| Storage Temperature: |
-30 ~ 80 |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Capacitive |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |
Product Description

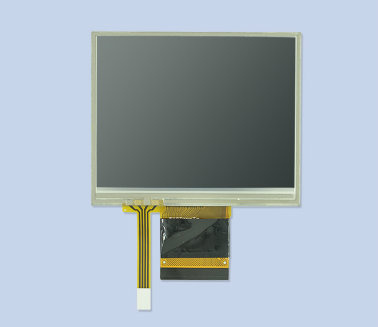

3.5 inch High Brightness tft LCD display| Item | Contents |
| LCD Type | TFT |
| Display Color | 16.7M |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 76.9x63.9x3.1mm |
| Active Area(W×H) | 70.08×52.56mm |
| Number of Dots | 320x240 dots |
| Controller | SSD2119 |
| Power Supply Voltage | 3.3V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 6× 2-LEDs(white) |
| Weight |
|
| Interface | RGB888 |
Why Choose Rongen Display?
- FOG automatical device can ensure the capacity of 1000,000 per month.
- Reliability test and full examination to ensure the high quality of the display.
- Strictly ISO quality management system.
- Mature and Professional after service.
- Various cooperation experience with big brands.
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
