| Prod Model: |
TM0902F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part No.: |
3.5'' TFT LCD Module 320X240 Dots |
| Outline Dimension(mm): |
76.9X63.9X3.15 |
| Active Area(mm): |
70.08X52.56 |
| Resolution(Dots): |
Qvga, 320*RGB*240 |
| Operating Temperature(°c): |
-20~+70 |
| Storage Temperature(°c): |
-30~+80 |
| Number Of Color: |
16.7m Color |
| Number Of Dots: |
320(RGB)X240dots |
| Screen Size: |
≤17" |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1024x768 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
3ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
Product Description
Packaging & Delivery
Packaging Details: | Packed in anti-static bag each, a certain qty. in one carton |
|---|
| Delivery Detail: | 4-5 weeks for mass production after samples approved |
|---|

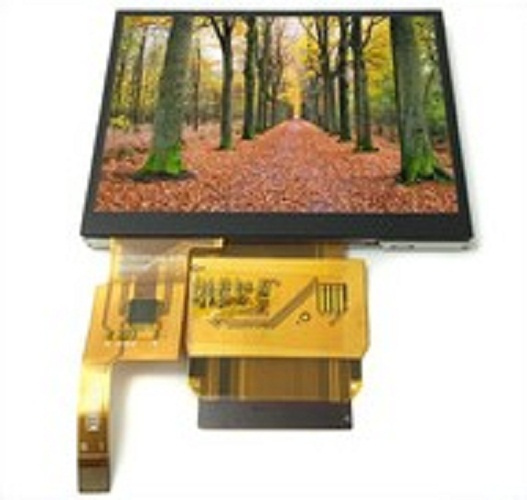

3.5 inch 320x240 dots tft lcd small dispaly with resistive touch
--Specifications:
Item | Specification |
| Part No. | 3.5'' tft lcd module 320x240 dots |
| Outline Dimension(mm) | 76.9x63.9x3.15 |
| Active Area(mm) | 70.08x52.56 |
| Resolution(dots) | QVGA, 320*RGB*240 |
| Operating temperature(°C) | -20~+70 |
| Storage temperature(°C) | -30~+80 |
| Number of color | 16.7M color |
| Number of Dots | 320(RGB)x240Dots |
| Black light | 6-LED White |
| Display mode | TFT Transmissive Normal white |
| Surface treatment | Antiglare |
| View direction | 6H |
| Weight(g) | TBD |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) |
| Interface | Digital |
| Module lifetime(Hours) | 50,000-100,000 |
