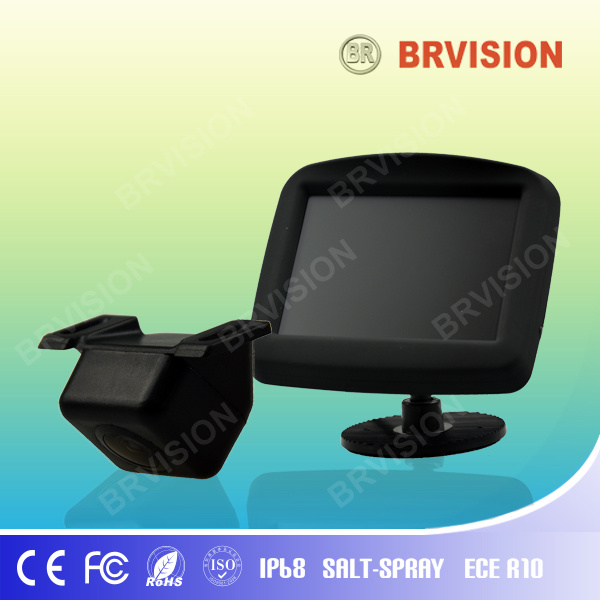

3.5"Car Rear View System with Mini Night Visioncamera

3.5
Price: US $ 65/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BR-TM3501-MNC09
Display Type: Reverse Image
Alarming Distance: 2.5-0.35m
Probe Diameter: 18.8mm
Interface: RCA
Shell Material: ABS Plastic
Function: Night Vision
Chip: CCD
Definition: 420tvl
Probe Number: 1/2/3/4
Certification: Emark

Product Description



-3.5" Digital High resolution LCD monitor
- Resolution: 320*240
- One video input with RCA connector
- Automatically switch into reversing image when put on the revers gear
- 12 power input.
- Bracket mount to stick on the window shield glass.
- Option bracket: Ford, Toyota, Volkswegen, Citroen bracket
- Drill hole Rear View Camera for option.

- Image Sensor : 1/4" Sharp/Sony Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68
- Vibration Rate: 10G
- Night Vision function: 16pcs LED lamp
- Audio Function: Avilable
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 420TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:2.8mm
- Wide angle: 120°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°
- Housing: Sliver/White/Black housing for option


Screen size3.5inch
Resolution800*480*RGB
SystemPAL/NTSC automatically
Audio and video4 video/1audio input  Quad images,2/3/4 image optional
OSD menuLanguage,brightness, contrast, trigger priority delay display setting
Luminance250cd/SM
Working temperature-20°C-+70°C
Storage temperature-30°C-+80°C
Voltage12V-24V DC
Connector 4 pin or RCA
Accessoriesuser manual/remote controller/powr calbe/sunshade/scre
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
