Prod Model: |

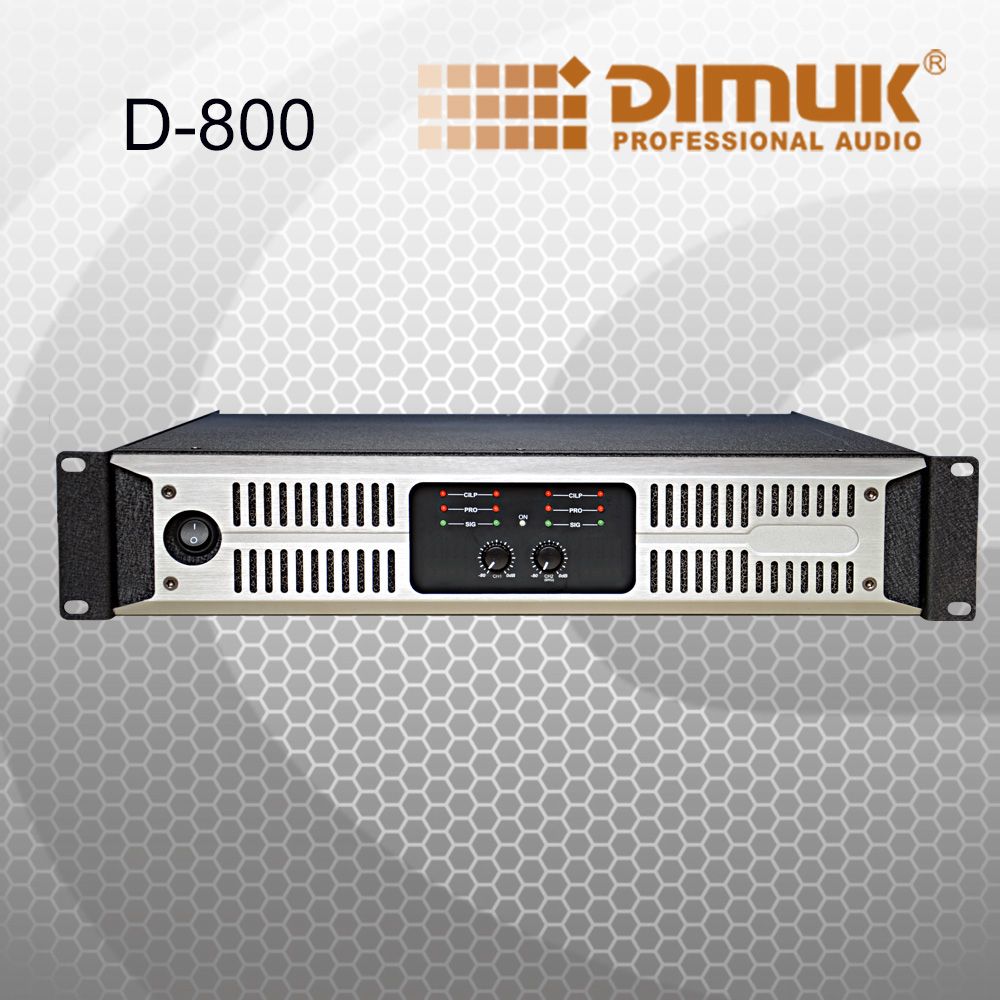

D-800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
White |
Function: |
Post Amplifier |
Tube Type: |
Tube Amplifier |
Voltage: |
AC 220V |
Element Number: |
Push-Pull Amplifier |
Output Number: |
4 |
Used For: |
Professional |
Conductive Mode: |
D |
Usage: |
Professional Performance |
Sound Channel: |
Stereo |
Product Description
D series amplifier have a hard-earned reputation for die-hard reliability and consistently superior audio performance.
Keu Features
Built-in regulation assures consistent, undiminished power output with no sonic degradation
Highly efficient
MODEL |
D-300 |
D-500 |
D-800 |
D-1100 |
D-4300 |
D-4500 |
D-4800 |
|
Output power |
|
|
|
|
|
|
|
|
8ΩStereo Power |
2x300W |
2x500W |
2x800W |
2x1100W |
4x300W |
4x500W |
4x800W |
|
4ΩStereo Power |
2x430W |
2x750W |
2x1200W |
2x1600W |
4x450W |
4x750W |
4x1200W |
|
2ΩStereo Power |
NC |
NC |
NC |
NC |
NC |
NC |
NC |
|
8ΩBridged Monon Power |
900W |
1500W |
2400W |
3200W |
2x900W |
2x1500W |
2x2400W |
|
4ΩBridged Monon Power |
NC |
NC |
NC |
NC |
NC |
NC |
NC |
|
FREQUENTY RESPONSE |
20Hz-20kHz +-0.5dB |
THD+N(Rated power,4Ω/KHz)% |
0.10% |
Signal Noise Ration(dB) |
100dB |
Input connectors |
Combo XLR type,3pin |
Link Connectors |
XLR type,3pin male |
Input Impedance |
20kΩBalanced /10kΩUnbalanced |
Output Connectors |
Speakon Connectors (NEUTRIK) |
Indicators(per channel) |
Temperatuer,DC,sub/ultea-sonic,short Circuit,overload,IGM,output |
Power Requirement |
180-260V~50-60Hz |
Dimension |
483x430x88mm |
Weight |
10.5KG |
10.5KG |
12KG |
13KG |
13KG |
13KG |
13KG |
|
GuangZhou Dimuk Audio Co Ltd is one of the best manufacturer of PRO audio equipment from China. Well trained workers. Up to date production equipment. Experienced engineer. Strict quality control one hour reach GuangZhou port have made us keep good quality and reliable cooperation for global valued customers.
Our products included professional PA loudspeakers Karaoke speakers and power amplifiers. No matter you need sound system for Theater. Concert Clubs & Disco or Sports Arena. Dimuk Audio will always be your right Choice.
