| Prod Model: |
FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Switch Power Supply Amplifier/Digital |
| Power Handling: |
2350wx2 at 8ohms |
| Frequency Response: |
2Hz-34.2kHz |
| Channel: |
2 |
| T.H.D.: |
<0.1% |
| Safe Protection1: |
DC Protection |
| Safe Protection2: |
Short Circuit Protection |
| Safe Protection3: |
Overheat Protection |
| Safe Protection4: |
Input and Output Overload Protection |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Usage: |
Professional Performance |
| Function: |
Digital |
| Sound Channel: |
2 Channel |
| Output Number: |
2 |
| Voltage: |
AC100-120V or AC220-240V |
Product Description
FP14000 2X7000W High-End Amazing Power Extreme Audio Power Amplifier
Overview:total output power of 14000W an unprecedented achievement in a 2U frame weighing only 12 kg,making it ideal for powering larger subwoofers.
1. The latest design with switch power supply
2. Digital with light weight
3. Big watts with 2350w per channel
4. Super performance with excellent quality
Features:
1.Unprecedented power density FP 14000 delivers a total of 14000 W (2 x 7000 W @ 2 ohms) in only 2U.
2.Fantastic nice sound quality FP 14000 is optimized for sustained performance into extreme low-frequency loads, yet it also maintains reputation for exceptionally smooth and transparent mid- and high-frequency response.
3.NomadLink network ready Monitoring and control of key functions accessible via the intuitive DeviceControl software and the robust, daisy-chained NomadLink network, as well as by the leading third party control platforms.
4.Patented Class TD amplifier topology Road-proven output stage delivers Class B audio quality with Class D efficiency.
5.Regulated Switch Mode Power Supply (R.SMPS) Output power remains constant even with significant drops in the mains voltage.
6.Efficient cooling system Unique, lightweight copper cooling system dissipates more heat to allow extended peak output.
7.Adjustable parameters Selectable Gain, scalable Voltage Peak Limiter (VPL), and bridge-mode operation allow custom configuration for any system or application.
8.XLR input and link connectors
9.Heavy-duty binding posts
10.Comprehensive protection and warning Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start.Specification:| Specifications |
| Model | FP14000 |
| Max Output Power(8ohm) | 2350W×2 |
| Max.Output power(4ohm) | 4400W×2 |
| Max.Output power(4ohm) | 7000W×2 |
| T.H.D(1W.20Hz-20KHz) | <0.1% |
| Signal To Noise Ratio | >112dBA |
| Cross Talk(1KHz) | >70dB |
| Frequency Response | 10Hz-35KHz |
| Default Gain | 35dB |
| Gain Selectable | 23,26,29,32,35,38,42,44dB |
| lnput Connecters | 3-Pin XLR. |
| Onput Connecters | Neutrik Speakon |
| Main Power Supply | 100V-120V/220V-240V(±10%)50-60Hz |
| Weight | 14Kg |
| Dimensions | 483(W)×396(D)×88(H)mm |

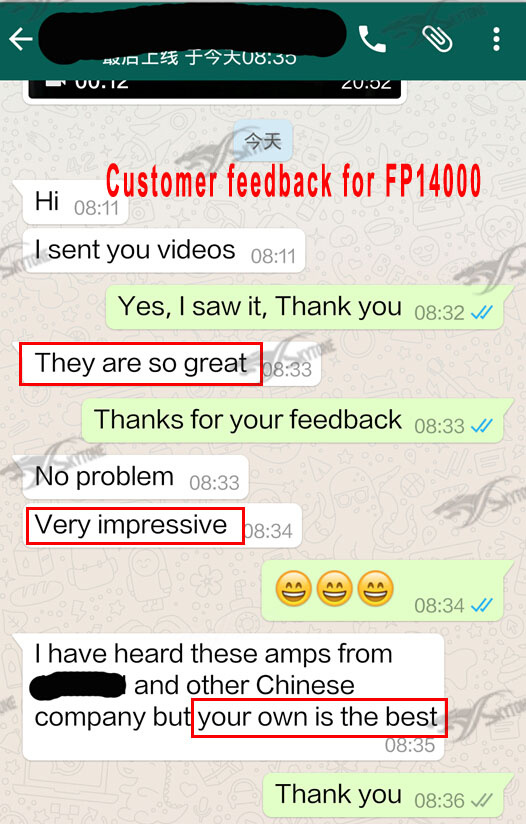

Customer feedback:
Production photo:
![]()
Certifications:
![]()
Our amplifier provide following protections:
![]()
Our advantages: 1. Reply your enquiry in 24 working hours.
2. Experienced staff answer all your questions in fluent English.
3. Special discount and protection of sales area provided to our distributor.
4. Specialized in speakers over 13 years in China.
5. A team of designers and engineers are capable to create new items according to personal request.
6. Customized design is avaliable.
7. Welcome OEM and ODM.
