| Prod Model: |
QFI-2F |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Flake Ice Thickness: |
1.5mm - 2mm |
| Evaporating Temperature: |
-20 Deg. Celsius |
| Condensing Temperature: |
40 Deg. Celsius |
| Inlet Water Temperature: |
16 Deg. Celsius |
| Cooling Capacity: |
11kw |
| Cooled Method: |
Air Cooled |
| Power Supply: |
3pH 380V/50Hz |
| Total Input Power: |
9.7kw |
| Machine Size: |
1500X1085X1208mm |
| Usage: |
for Sea Food Refrigeration |
| Application: |
Commercial |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Structure: |
Separated Type |
| Condensing Mode: |
Air-Cooled |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
| Filtering Device: |
With Filtering Device |
| Power: |
9.7 |
| Ice Shape: |
Flake |
Product Description

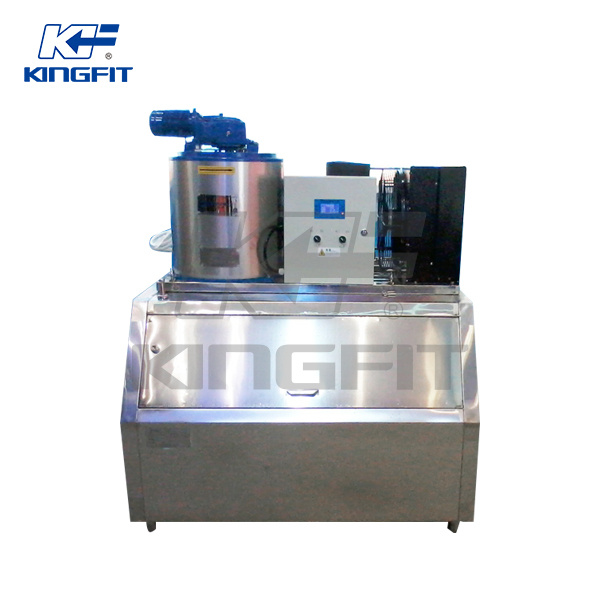

QFI-2F Flake ice machine ( 2000kgs/day)
No. NameDetails
01 Ice capacity 2t/24h
02 Cooling capacity 55kW
03 Evaporating temp -20deg. C
04 Condensing temp 40deg. C
05 Standard ambient temperature 25deg. C
06 Standard water temperature 16deg. C
07 Total Power 9.7kW
08 Power supply (voltage) 380V-3P-50HZ
09 Water pressure 0.1Mpa-0.4Mpa
10 Refrigerant R22
11 Ice temp -5deg. C
12 Thickness of ice 1.5mm-2.0mm
13 Overall size(L*W*H)mm 1500X1085X1208
|
QFI-XF/XS Series Flake Ice Machine Technical parameters |
|
Model |
Capacity
(kg/24h) |
Refrigerating
capacity (KW) |
Total Power |
Cooling
method |
Unit Dimension
(L×W×D(mm) |
Weight
(kg) |
|
QFI-0.5F |
500 |
3.05 |
2.27 |
Air cooed |
1310×690×709 |
160 |
|
QFI-1F |
1000 |
6.25 |
4.21 |
1310×690×882 |
210 |
|
QFI-1.5F |
1500 |
8.15 |
5.42 |
1550×1000×970 |
330 |
|
QFI-2F |
2000 |
10.32 |
6.72 |
1550×1000×1020 |
360 |
|
QFI-2.5F |
2500 |
13.12 |
8.52 |
1550×1000×1050 |
390 |
|
QFI-3F |
3000 |
19.17 |
9.82 |
1550×1000×1130 |
470 |
|
QFI-5F |
5000 |
28.8 |
18.4 |
1850×1370×1373 |
1100 |
|
QFI-5S |
5000 |
28.8 |
15.28 |
Water cooled |
1850×1370×1373 |
1100 |
|
QFI-8S |
8000 |
43.2 |
22.79 |
2300×1650×1525 |
1300 |
|
QFI-10S |
10000 |
51.5 |
29.17 |
2300×1650×1745 |
1500 |
|
QFI-12S |
12000 |
79.0 |
42.0 |
2480×2000×1780 |
2000 |
|
QFI-15S |
15000 |
106.6 |
55.47 |
3200×2010×2061 |
3200 |
|
QFI-20S |
20000 |
113.6 |
65.57 |
3400×2180×2370 |
4200 |
|
QFI-25S |
25000 |
154.8 |
77.25 |
3800×2540×2452 |
5000 |
|
QFI-30S |
30000 |
184.5 |
92.4 |
4500×2540×2772 |
6000 |
|
QF-35S |
35000 |
219.5 |
108.35 |
4780×3010×2658 |
6500 |
|
QFI-40S |
40000 |
253.8 |
121.85 |
5000×3010×2818 |
7500 |
|
QFI-50S |
50000 |
329.1 |
160.15 |
5000×3010×3158 |
10000 |
|
QFI-60S |
60000 |
393.7 |
189.35 |
5500×3010×3358 |
12000 |
|
Standard ambient temperature: 25deg. Celsius; Water supply temperature: 16deg. Celsius; |
|
Refrigerant: R22, R404a. |
|
Power supply: 3PH 380V/50HZ/60HZ; 3PH 460V/60HZ; 3PH 230V/60HZ. |
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
