| Prod Model: |
HBF2T-R4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Ice Shape: |
Flake Ice |
| Condition: |
New |
| Ice Temperature: |
25-18 |
Product Description

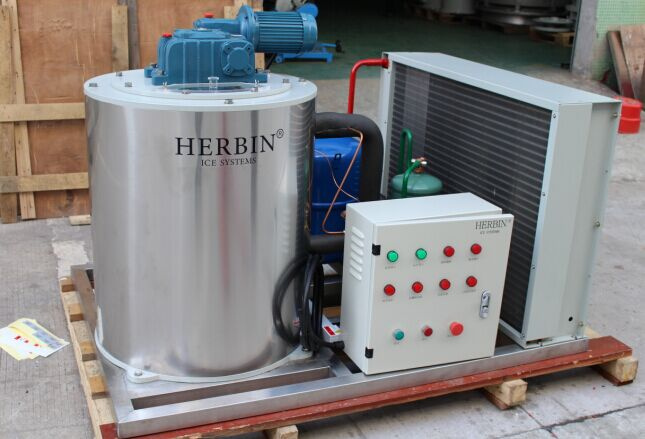

2ton home use Flake Ice Machines
Special Designed ice storage bin for flaker ice machine,it is very convenient for storaging ice.
Always used in the field of aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, supermarket or seafood restaurant or mines...Etc for its clean ice and convenience as well as low cost to keep food fresh.The flake ice machine is warmly welcomed for its clean, shapeliness, whiteness, glittering and translucent as well as low temperature to firstly keep fresh such as fish, meat and chicken then show a good view to the visitor and customers.
Compare to other supplier of flake ice machines in the industry,HERBIN ICE SYSTEMSowns its unique technology and get much better performance.
A.Superb Stability and reliability, long use life.
B.User-friendly design, intellectualized PLC touch-screen controller
The intellectualized PLC touchscreen control system, user-friendly designed, which is very convenient for operator.The intellectualized historical failure recordfunction and guidance of troubleshooting makes easier and simple operation and maintenance.The running time setting function convenienced operator, saving energy and reduce cost.
C.Sub-cooled ice, excellent fast cooling
Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling power.
D.Low maintenance and operation cost
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
E.Energy-efficient and cost saving
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict HERBIN quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-RAY./ Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp.Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum..
Refrigeration System
*Superb Stability and reliability, long use life.
Advanced workmanship and new technology makes high quality flake ice machine, you can always trust on.Rugged, heavy-duty design offers years of trouble-free operation.
*Energy-efficient and cost saving
The elaborately designed and equipped ice flaker offers a smooth operation, with high efficiency to fulfill the energy-saving.
PATENTED H-M Control System
Unique Vivid H-M Interactive control systemGive use access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably then makes great convenience to the customer to operate the machine and settle the trouble.
1.All the running status playing live in touch-screen, convenient as your FAMILY air-conditioning.
2.Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred.
3.Stop-time could be set at your will.
4.The thickness of the flake ice could be adjustable with setting the icing time.
5.Warranty :18months
Technical parameters
Model |
HBFE-1T |
Daily Output |
2t/24h |
Cooling Capacity(KW) |
11.6 |
General Power(KW) |
8.06 |
Compressor Input(KW) |
6.9 |
Reducer Power(KW) |
0.37 |
Pump Input(KW) |
0.016 |
Condenser Input(LW) |
0.68 |
Power Supply |
3P/380V/50Hz |
Water pressure |
0.1Mp-0.5Mpa |
Refrigerant |
R404a |
Wate Inlet/drain pipe |
1/2" |
Weight(KG) |
420KG |
Dimension(mm) |
1500*1100*1045 |
Warmly welcome to visit our website www.herbin.en.alibaba.com
Any questions pls just feel free to feedback us and we can solve your inquiry within 24 hours.
Thanks and best regards!
Shenzhen HERBIN Ice Systems Co., Ltd is a manufacturer of flake /tube/cube/block ice machines with well-equipped testing facilities...
More
Shenzhen HERBIN Ice Systems Co., Ltd is a manufacturer of flake /tube/cube/block ice machines with well-equipped testing facilities and strong technical force.
The brand name HERBIN has been recognized as a byword for quality products and superb services. The novelty of quality and technology is praised and advocated by the harsh customers from Europe, Australia and America; The Human-microcomputer interaction, unmanned operation and self-contained protection & intelligent control system set the trend of ice making automation in 21st century.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in the supermarkets, bars and restaurants, seafood and meat processing plants, poultry slaughtering houses, leather manufacturing, and industries of chemical dye, mining, concrete cooling, medical equipment, ocean-going fishing and artificial skiing field and other industries.
