| Prod Model: |
SLTF1205001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sltf1205001 |
| Diameter In Mm: |
130 |
| Diameter In Inch: |
5 |
| Voltage(V): |
12 |
| Current (a): |
4 |
| Speed(Rpm): |
5000+/-200 |
| Airflow(M^3/H) @100PA: |
260 |
| IP Rating: |
67 |
| Type: |

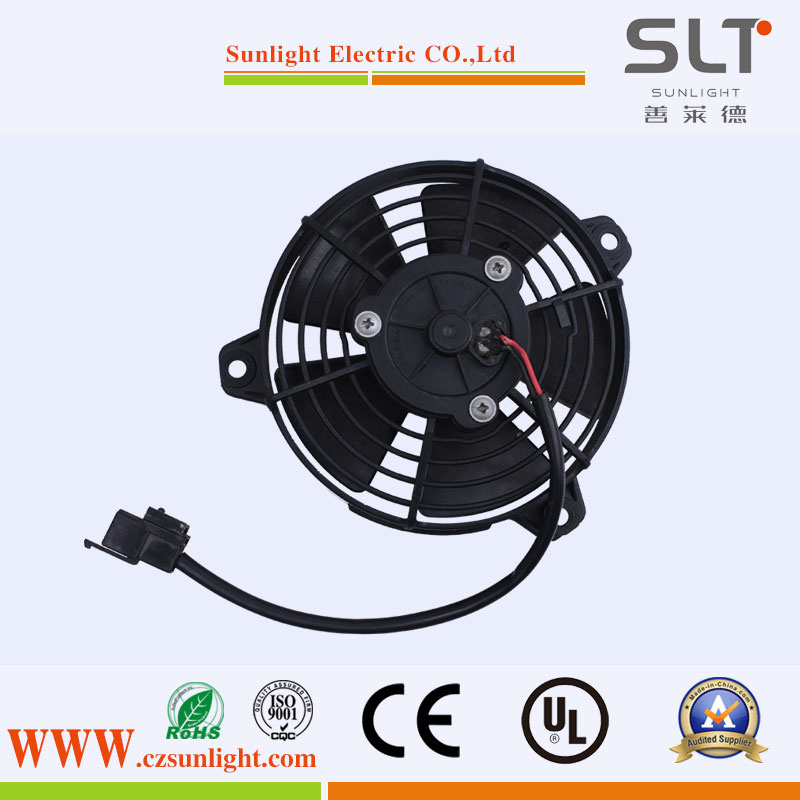

Axial Flow Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Application: |
Household, Industrial |
| Timer: |
Without Timer |
Product Description
1.Diameter:130-450mm/5-15inch
2.Voltage(V):6V/12V/24V/36V/48V
3.Current (A):2A-12A
4.Speed(rpm):1000-9000
5.Airflow(m^3/h) @100Pa:260-1000
6.Rating:IP 67
| Part Number | SLTF1205001 |
| Diameter in mm | 130 |
| Diameter in inch | 5 |
| Voltage(V) | 12 |
| Current (A) | 4 |
| Speed(RPM) | 5000+/-200 |
| Airflow(m^3/h) @100Pa | 260 |
| IP Rating | IP67 |
| Part Number | Diameter in mm | Diameter in inch | Voltage(V) | Current (A) | Speed(RPM) | Airflow(m^3/h) @100Pa | IP Rating |
| SLTF1211001 | 280 | 11 | 12 | 8 | 2700 | 700 | IP67 |
| SLTF1205001 | 130 | 5 | 12 | 4 | 5000+/-200 | 260 | IP67 |
| SLTF1212001 | 300 | 12 | 12 | 10 | 2700 | 1000 | IP67 |
| SLTF1208001 | 190 | 8 | 12 | 8 | 3200 | 540 | IP67 |
| SLTF1216001 | 400 | 16 | 12 | 20 | 3200 | 2400 | IP67 |
| SLTF1212002 | 300 | 12 | 12 | 10 | 3200 | 1000 | IP67 |
| SLTF1213001 | 330 | 13 | 12,24 | 10 | 3200 | 1050 | IP67 |
| SLTF1214001 | 356 | 14 | 12,24 | 12 | 3200 | 1380 | IP67 |
| SLTF2406002 | 147 | 6 | 24 | 4 | 2700 | 260 | IP67 |
| SLTF1221001 | 521 | 21 | 13 | 24 | 3200 | 3000 | IP67 |
The Advantages of our axial fan
a.Super Long life motors
b.Lower noise
c.High efficiency
d.Lower weight
e.Guarantee for 3 years
Application
A:Transport:On the top roop of the Bus,in the cars,heavy duty truck and beach buggy etc.
B:Agriculture
C:Household Appliance: kitchen ventilator,domestic appliance etc.
Why choose us
A. Quantity in sure.
B. Technical departments and Price is competitive.
C. Service is excellent.
FAQ
Q:What products that you will apply ?
A:Our products are widely applied in Car, Beach buggy , Truck, Bus and so on
Q:What is your installation dimensions ?
The max size and diameter of the fan as your request.we can make the fan according to your requirement
Q:What are the specifications of the DC motor ?
A:Such as voltage,current,speed,airflow
Q:What's the request of the operation temperature ?
A:As usual,our products are suitable for the temperature between -40 to 80.
Q:How does your factory do regarding quality control?
A:"Quality is priority. AMB people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained UL , CE, SGS,Rohs .
Warning
We highly recommend not to use our fans in flammable and combustible environments.
Improper hading and wrong usage of the fan may cause injuries.
Axial Fan maintenance
1,Using environment should be keep clean and tidy,Fan surface should be keep clean,Inlet and outlet should not have the sundry.
2,Only can run of the fan is completely normal, s at the same time to ensure the power supply and voltage stability.
3,Fan in the running process if found to have abnormal situation, should immediately stop check
4,According to use environment conditions do not regularly to supplement or replace bearing grease.
5,Fan should be stored in dry environment, avoid motor be affected with damp .
Equipments
Company & certifications
a. Modern office building, we warmly welcome your visiting.
b.We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
c.ISO, CE, GS, Rohs certificates. We have been making good progress.
Shipment and Package
a.Strong packaging to ensure safty during transportation.
b.This supplier supports Trade Assurance.
Follow the Trade Assurance process and get:
1.On-time shipment and pre-shipment product quality safeguards
2.Refund up to the covered amount agreed with your supplier
3.Supplier's Trade Assurance Limit:
Personal Information
if you need more information. please contact with us, our contact information:
Changzhou sunlight Co., Ltd
Contact Person: Mary Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-13915006892
Website: www.czsunlight.com or www.sunlightmotor.com
Sunlight is specialized in providing Axial fan, DC Motor, BLDC, parts and solutions. We insist in being best supplier with high reputation. Our head office Wenwei factory was found in 2000, which produce the parts of fan and motor in the began. The sub company Ronda manufactures aerator and was built in 2008. The sales number is around 6000M, and the area is about 5000 square meter, 200 employees, the products are sold to America, Europ, Asia and so on.
As a professional manufactuerer, we design and produce Axial fan, DC motor, brushless motor, stepper motor, plastic mould and spare parts, the products are applied to Car, bus, truck, home appliance, medical equipment, electric tools and so on. Quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills. Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
Sunlight provide the better power source for you, and at the same time, we offer the technical information and data for motor industries, suppliers and our partners.
Where there is power, there is sunlight.
