| Prod Model: |
YJ-24SP1.8-H58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Way: |
Seperated |
| Tank Capacity: |
250L |
| Suitable For Person: |
5-6 |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
Solar Keymark |

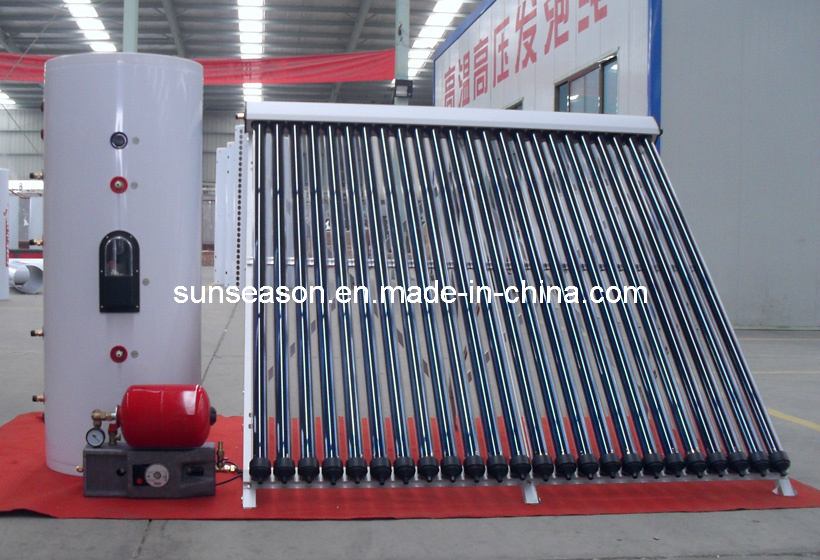

Product Description
Features for split solar water heater:
1, collectors separates from the storage tank, the tank can be installed anywhere inside the house.
2, the collector can be put on the inclined roof, wall or flat place.
3, Easy retrofitting to existing systems.
4, Suitable for single and multiple solar heating application systems;
5, Preferred option for extremely cold areas and questionable water quality.
6, Intelligent control and automatic operation.
7, the system controller has the anti-freezing function that the temperature circulation will operate while it reaches the fixed temperature.
Technical Parameters:
1. Inner tank: 1.0-2.0mm thickness SS304-2B stainless steel, with copper coil inside.
2. Outer tank: 0.4mm thickness color steel
3. Capacity: 150L-500L
4. Thermal insulating: 50mm high pressure polyurethane foaming
5. Collector:
Manifold: Red copper inner manifold, aluminum alloy outer manifold
Vacuum tube: 1.6mm thickness borosilicate glass3.3, 58mm× 1800mm, with copper heat pipe
Working pressure: ≤ 0.6Mpa; Absorptance≥ 91%
Absorbing coating: Cu-Al-SS
Manifold(interior): Red copper; (exterior): Aluminum Alloy
Glass tube heat pipe: Anti-freezing>-40º C
Bracket: 2.5mm thickness aluminum alloy.
6. Including: Water tank, solar collector, central controller, circulating pump, expansion tank, electric heater(2.5kw).
Working principle:
1. When the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.
2. The circulation pump makes heat-conducting liquid circulate automatically.
3. The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.
4. In case the temperature of the water tank does not reach to max, then start the auxiliary heating device
5. In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be shut up automatically.
|
Model |
Qty. of vacuum tubes |
thickness of Inner tank |
Length of copper coil(m) |
capacity(L) |
|
single coil |
double coil |
|
YJ-15SP1.8-H58 |
15pcs |
1.2mm |
18 |
18+12 |
150 |
|
YJ-20SP1.8-H58 |
20pcs |
1.5mm |
18 |
18+12 |
200 |
|
YJ-26SP1.8-H58 |
26pcs |
1.5mm |
18 |
18+12 |
260 |
|
YJ-30SP1.8-H58 |
30pcs |
1.5mm |
24 |
24+18 |
300 |
|
YJ-40SP1.8-H58 |
40pcs |
2.0mm |
24 |
24+18 |
400 |
|
YJ-50SP1.8-H58 |
50pcs |
2.0mm |
32 |
32+24 |
500 |
