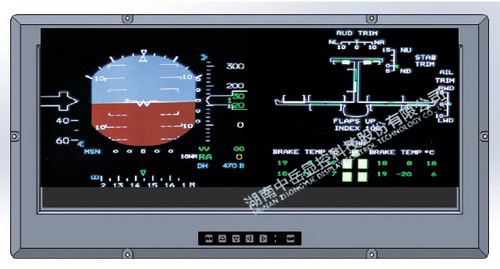

25.6" Rugged Airborne TFT LCD Display for Aviation Displays
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
ZXD-256P0800-J1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Military Field |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| 3D: |
Not 3D |
| Interface Type: |
DVI |
| Screen Size: |
25.6" |
| Aspect Ratio: |
8:3 |
| Optimum Resolution: |
3200 X 1200 |
Product Description
Product Name25.6" Rugged Airborne TFT LCD Display for Aviation Displays
Product Advantages1. With low power consumption LCD screen,ultrahigh resolution and Good low
temperature performance (- 40 degrees work without heating in low temperature),
the product can work normally in - 45ºC low temperature environment. 2. The use of Optical bonding technology, LED backlight highlight technology and
anti reflection coating technology, reduce specular reflectivity, make the product is
visible under strong sunlight, DAY mode highest brightness can achieve 800nits,
minimum brightness only 0.17 nit. At the same time, Full night-vision compliance optional.
3. Using Optical Bonding technology, greatly enhance the ability of anti shock and vibration.
Support RS232 / RS422 serial communication.
Product Parameter | ZXD-256P0800-J1 |
| Model No. | ZXD-256P0800-J1 |
| Resolution | 3200×1200 |
| Active Image area | 24"×9"( inch) |
| Outline dimensions | Customized |
| Brightness | Max Brightness>800nits;
Min Brightness<0.17nit; |
| Contrast ratio(dark ambient) | >1000:1@ 0H/0V |
| Contrast ratio(shimmer night vision) | >5:1 (107000Lux) |
| Specular reflectance | <1% |
| Brightness non-uniformity | ≤20% |
| Viewing envelope (CR >5:1) | ±85° H, ±85° HV |
| Signal input | DVI |
| Gray shades (colors) | 256 level |
| Power supply | DC28V |
| Power consumption | Normal temperature power Consumption≤80W |
| Weight | ≤18kg |
| Environment suitability |
| Work temperature | -45ºC~70ºC |
| Storage temperature | -55ºC~90ºC |
| Humidity | 95% @60ºC |
| Environmental | DO-160E, MIL-STD-810E |
| Altitude | >19000m |
| Vibration | 0.05 g2/Hz 100 - 500 Hz |
| Shock | 6g,11ms (3axia,6direction) |
| MTBF | 10000 hours |

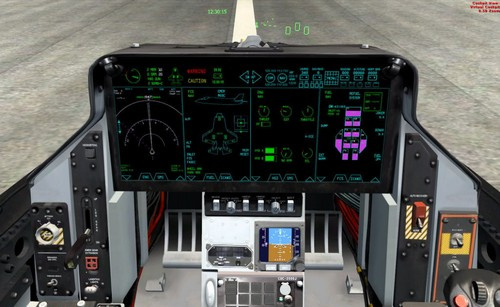

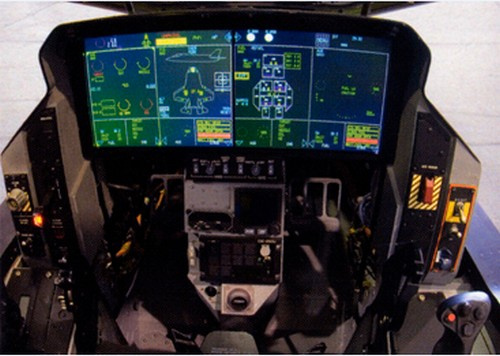

Application Picture
Hunan Zhongyue Display Control Technology Co., Ltd is a high-tech joint-stock enterprises, specialized in research and development, production and technical service for military products. The company, founded in 2013, covers an area of 2000 square meters, having 20 million RMB registered capitals. At present, we have more than 40 employees and most of them have great experience in the field of military industry. We have a mature and solid team and have become an excellent military products supplier after many years of experience.
R&D capabilities and production capacity of our company at a leading position in the same industry, has assumed a large number of military and national defense scientific research mission. Our company has made a large number of high-level results in display technology, graphics display control card and military board field, with a number of patented technologies of independent knowledge ownership, such as: Low temperature transparent heating technology, highlighting dual LED backlight technology, optical bonding technology, multi-PIP technology, ultra-low power consumption dual-core three-display CPCI mainboard. Our company has sophisticated LCD screen secondary cutting technology platform, optical bonding technology platform, LED backlight technology platform, sophisticated image processing technology and high reliability military board technology that the monitor, graphics display control and all kinds of military boards can be customized according to customer requirements of different shapes, different sizes, different brightness and different resolution or other special requirements.
Currently, rugged LCD display module and graphic image display control card developed and produced by our company has been widely used in airborne, vehicle, ship and other military fields as well as airports, railway stations and outdoor display equipment and other civilian areas. The display size from 0.63 inch to 65 inch and resolution from 480X480 to 4096X2160 full-coverage. High product reliability, has been highly praised by customers and military. The display drive technology of our company lives in the national front. Among them, large-size high-resolution rugged display with resolution 4096X2160 becoming the earliest company successfully developed this resolution LCD drive technology by EPGA. 0.63-inch, 1-inch and 1.8-inch image display source are successfully used in airplane head-up system and helmet head system. In addition, the company has developed a variety of 3U, 6U series ARM, X86, POWERPC architecture low-power motherboard. All boardcards are embedded with complete BIT fault diagnosis. At the same time, we also produce display and control platform, all-in-one microcomputer, military notebook and other variety of electronic devices.
To allow users to enjoy a more simple, quick and more comprehensive services, through the integration of application of innovative hardware and software integration technology, our products and application solutions of the same strain, allowing users to system compatibility, stability, reliability and maintainability greatly enhanced.
In the future, we will grasp all opportunities to achieve company development sustainably and scientifically, making ourselves better contribute to national defense.
