| Prod Model: |
TG240128A-07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction: |
SMT |
| Display Format: |
240X128 Dots |
| Display Type: |
Stn, Negative, Blue |
| Backlight: |
White Backlight |
| Outline Dimension: |
144.0X104.0mm |
| V.a. Size: |
114.0X64.0mm |
| Certificate: |
RoHS |
| Warranty: |
12 Months |
| Type: |
Graphic |
| Display Technology: |
STN |
| Usage: |
Small-sized LCM |

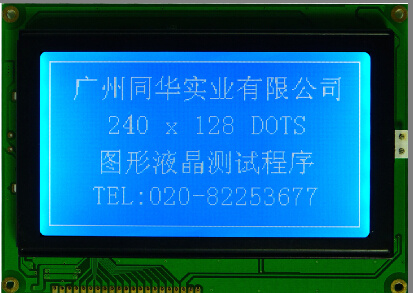

Product Description
FUNCTIONS & FEATURES
Construction SMT
Display Format 240x128 dots
Display Type STN, Transmissive, Negative, Blue
Controller T6963C or equivalent controller
Interface 8-bit parallel interface
Backlight white/side light
Viewing Direction 6 O'clock
Driving Scheme 1/128 Duty Cycle, 1/12.2 Bias
Power Supply Voltage 5.0 V
VLCD Adjustable For Best Contrast 17.8V (VOP. )
Operation temperature -20° C to +70° C
Storage temperature -30° C to +80° C
Product range
1) TN, STN, FSTN, DFSTN LCD panel / LCD modules
2) Customized LCD panels / LCD modules
3) Small TFT LCD panels / LCD modules
Character LCD Module: Whole product series for for8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 40x2, 40x4, characters each in the format of 5x8 dot matrix.
Graphic LCD Module: Including 96x26 dots, 122x32 dots, 128x32 dots, 128x64 dots, 192x64 dots, 160x160 dots, 240x128 dots, 240x160 dots, 320x240 dots series.
Established in 1995, Guangzhou Tinsharp Industrial Co., Ltd. is one of the major manufacturers of Liquid Crystal Displaying (LCD) products in China. We specialize in design, manufacture and sale of LCD and LCD modules.
Having accumulated precious experience in this field, our production capacity and expertise have been growing sharply along with the market share. With the support of our professional and devoted work team specialized in both R&D and total quality control, we are able to supply cost-effective and quality guaranteed products in the LCD and Liquid Crystal Modules (LCM) areas. Moreover, both standard series and customer-tailored products are available.
Specifically, the main products include:
1) Character and graphic LCD modules
2) Segment LCD modules
3) TN/STN/FSTN LCD panels
4) Customized LCDs/LCD Modules
Our products have been widely used in many fields, such as measuring instruments, electrical appliances, and communication terminals. About one third of our products are selling well directly and indirectly in the American, East Asian, and European markets.
