| Prod Model: |
PAK240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
13.3kg |
| Color: |
Black |
| Speaker System: |
Mono |
| Application: |
Commercial |
| Operation Mode: |
Knob Control |
| Hi-Fi: |
Hi-Fi |
| Speaker Material: |
Metal |
| Monitor: |
LCD Screen |
| THD: |
<0.03% |
| Noise: |
<95dB |
| Certification: |
UL |
Product Description
Product description

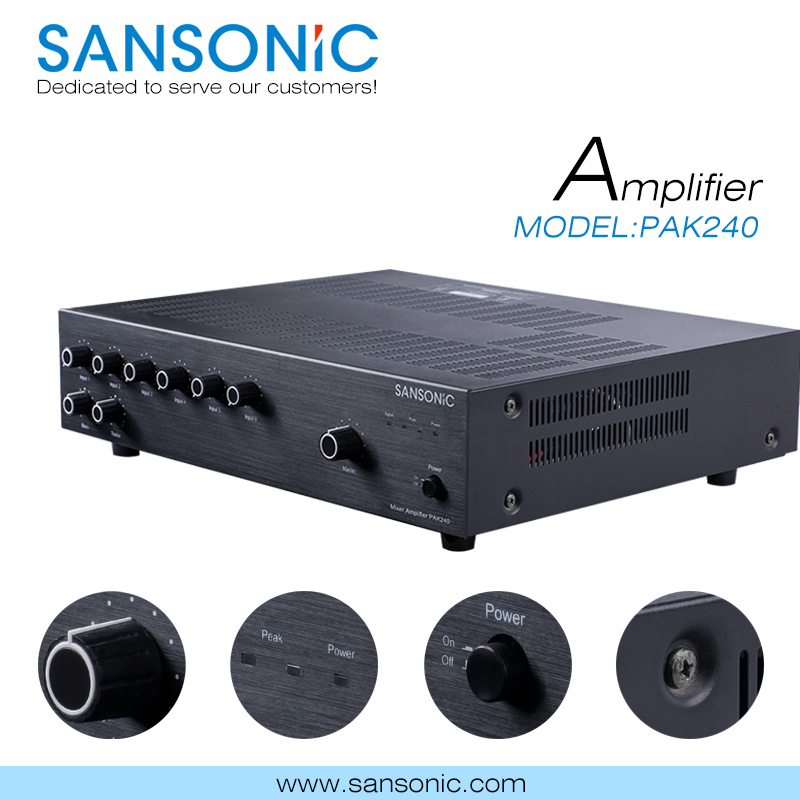

PAK240 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 240W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 25v, 70v and 8ohm are selectable for different speaker installation matching. Less than 1% at 1kHz,Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. 1-5 line microphone balanced input or linear balanced input, input sensibility: linear 316mV microphone 3.16mV;
3. 6 line RCA liner input, input sensibility: 100mV or 316mV, switch by the on/off button
4. The panel with volume adjustment knob
5. Two way of power output: rated power output 25V/70V and rated resistance 8Ω;
6. Pre-out linear output
7. line 1,2 linear output
8. Zone 2 linear output
9. signal lamp and Peaking light display
10. Switch on/off lash the protection loudspeaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Specification
Modle
PAK240
Power requirment
110-125V AC or 220V-230V AC,50/60Hz
Rated power
240W
Distortion
Less than 1% at 1 kHz
Frequency Response
50~20,000Hz(±3dB)
Outputs
Recording Output
0dB, 600Ω Unbalanced, RCA pin jack
Liner: 1,2
0dB, 600Ω Unbalanced, RCA pin jack
Speaker Selection Output
Zone 2: 8Ω at 1.5 Watts & 600Ω line level at 1.5V
Direct Output
High Impedance:70V\25V screw terminal
Low Impedance: 8Ω screw terminal
Inputs
Input 1MIC
0.316 ~ 3.16mV (-50 ~ -30dBV) balanced Phenix Input
Input 1 LINE/TEL
316mV (-10dBV) 10kΩ (optional 600Ω transformer available) balanced Phenix
Input 2-5 Mic
0.316 ~ 3.16mV (-50 ~ -30dBV) balanced Phenix Input
Input 2-5 Line
316mV (-10dBV) 10kΩ balanced Phenix
Input 6 Line
300mV/100mV (-10dBV/-20dBV) Selectable Unbalanced, RCA pin jack
Operating Temperature
-10 to +40
Color
black
Dimensions(W*H*D):
420mm x 109mm x 357mm
Weight
13.3kg
