| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Eer: |
2.66 |
| Type: |
Central Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

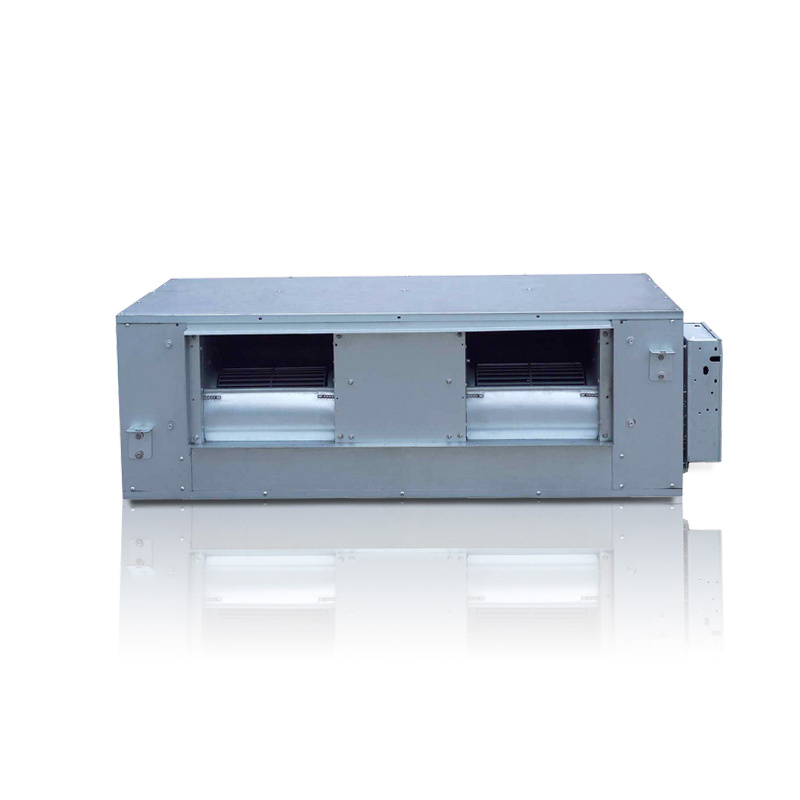

24000Btu Cooling OnlyT3 High Duct Type Air Conditioner
1. The filter can be easily removed or installed from the bottom for ease of cleaning:
Losen the fixed screws
Rmove the filter from the bottom
Clean the filter and replace it in the duct
2. Max static pressureof indoor unit is 160Pa. The longest distance of air supply is 14m, the max height of air supply is 6.5m, specially recommended for spacious and large rooms like large stores and factories
Specification
Power supply | V- Ph-Hz | 220~240-1-50 |
| Cooling | Capacity | Btu/h | 24000 |
| Input | W | 2669 |
| EER | W/W | 2.66 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| COP | W/W | / |
| Indoor fan motor | Model |
| YDK100-4X-1 |
| Qty |
| 1 |
| Input | W | 240/205/190 |
| Capacitor | uF/ V | 12μF/450V |
| Speed (Hi/Mid/Lo) | r/min | 990/900/870 |
| Indoor coil | Number of rows |
| 3 |
| Tube pitch(a)×row pitch(b) | mm | 25.4x22 |
| Fin spacing | mm | 1.6 |
| Fin type |
| Hydrophilic aluminium |
| Tube outside diameter .and type | mm | Φ9.5,inner groove tube |
| Coil length×height×width | mm | 700x356x66 |
| Number of circuits |
| 7 |
| Indoor air flow (Hi/Med/Lo) | m3/h | 1344/1294/1187 |
| Indoor external static pressure (Hi) | Pa | 100 |
| Indoor noise level (Hi/Med/Lo) | dB(A) | 47/46/45 |
| Throttle type |
| Throttle valve |
| Indoor unit | Dimension (W×D×H) | mm | 856x691x400 |
| Packing (W×D×H) | mm | 1090x768x440 |
| Net/Gross weight | kg | 45/52 |
| Design pressure | MPa | 2.94/1.0 |
| Drainage water pipe dia |
| ODφ25 |
| Refrigerant piping | Liquid side/ Gas side | mm | φ9.5/φ15.9 |
| Controller | KJR-10B/DP(T)-E |
| Operation temperature | ºC | 17-30
|
