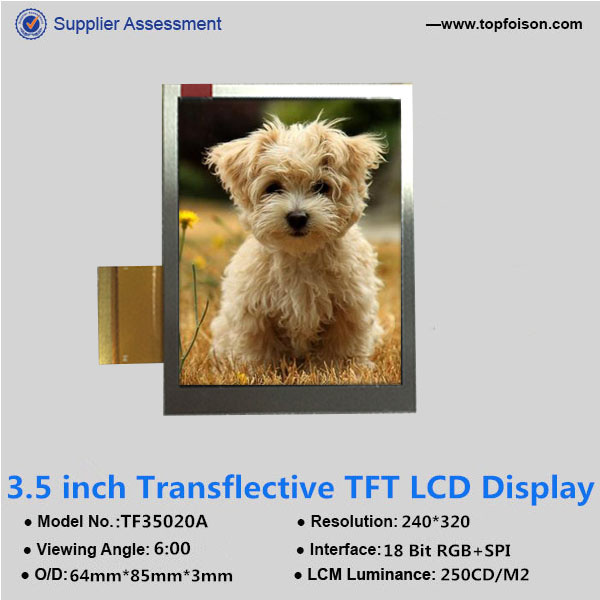

240*320 LCD Outdoor Display with 3.5inch with Sunlight Readable LCD Module

Name: 240*320 LCD Outdoor Display with 3.5inch with Sunlight Readable LCD Module
Brand: ec-portal.com
SKU: 743873065
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 30/Piece
Trade Terms:	EXW
Min Order:	2/Piece
Pay Type:	T/T

Send Inquiry

Showroom Product Company Profile

Prod Model:	TF35020A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
240*320 LCD Outdoor Display:	3.5inch with Sunlight Readable LCD
Type:	TFT
Application:	Indoor
Aspect Ratio:	4:3
Widescreen:	Widescreen
Feature:	Touch Display
Response Time:	30ms
3D:	Not 3D
Optimum Resolution:	240*320
Screen Size:	3.5inch
Interface Type:	RGB

Product Description

Item: 240*320 lcd outdoor display with 3.5inch sunlight readable lcd module TF35020A
Resolution: 240*320
Inserting Mode: Put-in Type
Viewing Angle: 6: 00
Interface: 18 Bit compatible RGB+SPI I/F
Outline Dimension: 64mm(W)× 85mm(H)× 3mm(D
Active Area:
LCD: 53.64mm(W) × 71.52mm(H)
Driver IC: --
PIN Nos.: 50
LED Connect Mode: 10 LEDs in parallel
Operating Voltage: -0.3~4.6V
Operating temperature -20~70° C
Storage temperature -30~80° C
Backlight Luminance: 250CD/M2
LCM Luminance: 5000CD/M2
LCM Brightness Uniformity: 80

We are professional TFT LCD manufacturer with our own factory in Shenzhen China. We have our own professional R&D groups specialized in a wide range from TN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization. All the products produced in our company enjoys the most advanced production craft and technology as well as the strictly ISO quality management system which widely used in the mobile phone, car, industrial products, medical treatments and consumer area and so on.
