Prod Model: |
BCD-238 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Use: |
Refrigerator-Freezer |
Style: |
Upright |
Gross Volume Total (L): |
242 |
Net Volume Total (L): |
233 |
Refrigerant (R600A/R134A): |
R600A/R134A |
Foaming Agent: |
Cyclopentane |
Power Voltage: |
220-240V/50Hz |
Condensor Type: |
Hidden |
Climate Class: |
N, St |
Defrost: |
Automatic |
Capacity: |
200-300L |
Type: |
Bottom-Freezer |
Power Source: |
Electricity |
Temperature Type: |
Double-Temperature |
Defrost Type: |
Frost-Free |
Certification: |
CE |
Door: |
Double |
Installation: |
Freestanding |
Material: |
PVC/VCM |
Climate Type: |
N, St |
Product Description

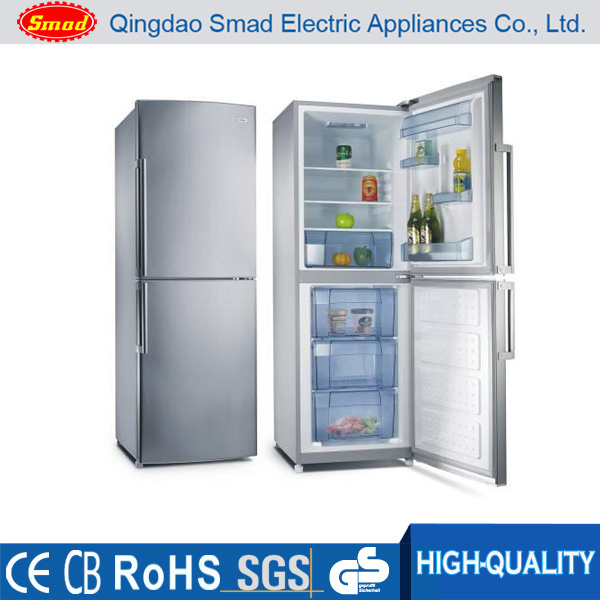

238L Double-Door No Frost Bottom Freezer Refrigerator
1. OEM
2. Certificate: CE, CB, RoHS, SAA, MEPS, ERLs, GS, SASO
3. No Frost Refrigerator
4. Double-Door no Frost Refrigerator
5. Bottom Freezer Refrigerator
Product Type |
|
Model No. | BCD-238 |
|
|
Gross Volume Total (l) | 242 |
Net Volume Total (l) | 233 |
Net Volume Fridge (l) | 143 |
Net volume freezer (l) | 95 |
Cooling System |
|
Refrigerant (R600a/R134a) | R600a/R134a |
Foaming Agent | Cyclopentane |
Power Voltage | 220-240v/50Hz |
Condensor Type | Hidden |
Temperature Control | Mechanical |
Energy Class | A/A+ optional |
Energy Consumption (kWh/24h) | 0.75 |
Energy Consumption (kWh/year) | 274 |
Climate Class | N, ST |
Noise Level dB(A) | ≤ 42 |
RoHS compatible | Yes |
General Feature |
|
Number of Doors | 2 |
Plastic Top Cover | No |
Reversible Door | No |
Door lock | Optional |
Handle Type & Material | External/Al |
Door Type | Round corners |
Door Panel Material & Color |
|
PCM (basic model) | Yes/White, Silver& Black |
VCM | Yes/INOX, pink & Red |
GLASS | Yes/red, white& yellow |
Cabinet Color & Material | White/ABS |
Fridge Compartment |
|
Evaporator Type | Hidden |
Defrost | Automatic |
Drain pan (Material/no. ) | HIPS/1 |
Interior Lamp | Yes/10 |
Adjustable shelf type / number | Glass / 2 |
Crisper cover type / number | Glass / 1 |
Crisper Drawer Material / Number / Color | PS / 1 / light blue |
Door Balcony Material /Number /Color | PS/5/light blue |
Door Rack Material /Number /Color | No |
Butter and cheese compartment | No |
Egg Tray | No |
Beverage bottle bin | 2.0L |
Freezer Compartment |
|
Freezer Rating | 4Star: -18 |
Freezing Capacity | 4...5kg/24h |
Evaporator Type | Hidden |
Defrost | frost free |
Freezer Drawer Type / Number / Color | PS/4/light blue |
Freezer Door Rack Type / Number / Color | No |
Ice Cube Tray | No |
Freezer shelf (Material/No. ) | No |
Dimensions |
|
Dimension Product (W*D*H, mm) | 556*670*1729 |
Dimension Package (W*D*H, mm) | 624*707*1779 |
20' / 40' / 40' HC Quantity (piece) | 27/57/77 |
Weight (kg) Net / Gross | 62/70 |
|
|
Approval | CE/GS/SASO |
Qingdao Smad Electric Appliances Co., Ltd., was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become one normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual production of 350 million Yuan.
The development of SMAD is the fastest in the field as a new member of the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
Now SMAD have one sole proprietorship factory and two joint venture factories. Our factories are equipped with the top-level production equipments and testing facilities. We also have well qualified engineers and highly trained technical staff, which promotes the group's opportunity to work out successful partnerships. We guarantee products with superior quality, competitive price and excellent customer service.
We have more than 50 items in our product line. Our products range from freezers, refrigerators, wine cellars, showcases, and ice makers to washing machines.
We are quite proud of our ability of R&D. During design and production process of our products, SMAD produces products of true humanity by the leading of consumers' necessity. Every several months, new models are developed to meet the changeable requirements of our customers.
Since our establishment, SMAD has always been emphasizing on building an effective quality management system. Our rigid control on quality under the framework of ISO9001 has standardized and systemized every functioning department and manufacturing process as well as managing operation.
In the meantime, SMAD gains not only China CCC certificate, but also many overseas certificates such as CE, RoHS, ETL, and GOST.
In accordance with our principle of "supplying the fine and reliable quality products for respected customers", the products from SMAD production lines have been satisfying the customers the domestic and overseas.
SMAD is always ready to eagerly supply customers with excellent products and satisfying services, and warmly welcome you to join us to cooperate for a brighter future.
