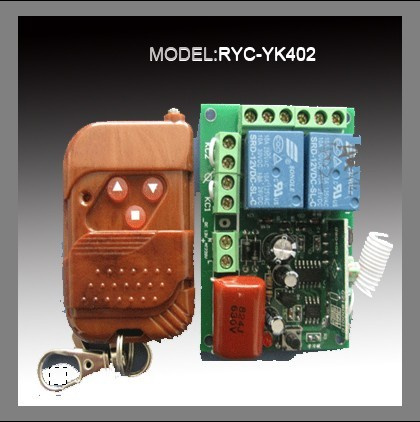

220 Volt AC Motor Reversing Controller (RYC-YK402)

Prod Model:	RYC-YK402
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part Number:	Ryc-Yk402
Operating Voltage:	DC220V
Receiving Frequency:	315MHz
Receiver Sensitivity:	-95db
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal

Product Description

AC motor reversing controller RYC-YK402 (with limit switch function)

I. Features:
1, 2-way passive output, that is, two sets of output switching signal, with a double limit function.
2, mainly used: Motor forward reverse, remote control electric gate (gate volume slide up and down), remote control curtains sliding around, remote motor up and down movements, security and other remote areas.
3, using a large-capacity relay, can control kW motor and equipment.
4, the use of wireless coding technology, no direction, switches without disturbing each other.
Second, the main technical indicators:
Operating voltage DC220V
Receiving frequency 315MHz
Receiver Sensitivity-95dB
Work jog, interlocking, self-locking
Maximum load 7A

Third, the operating instructions

1) AC220 Control Board Power Specifications: AC220V. Control output is relay mode without power. Output way: Jog, self-locking, interlocking three ways, the output mode can be changed at any time.

2) with an interlocking manner to control the motor turn around time, and if used in place control, you can disconnect the control panel cable KC1 and KC2, access a set of normally closed auxiliary contact of the limit switch, stop function can be realized in place. (KC2 is close to the receiver module that controls a relay)

3) Output mode selection and learning methods: Press the remote control to any key indicator should blink continuously learn otherwise, this module can not learn this remote control. (Jog and self-locking mode requires at least two remote control buttons, interlocking approach requires at least three remote control buttons) 4) Output mode selection: Press the control panel button to learn hold for about two seconds. After learning indicator is lit, do not release the button to learn, another about four seconds, the learning will light up and change out. Do not release the button to learn about two seconds after learning a few flashes for about two seconds, the learn indicator flashes twice, another about two seconds, the indicator light will blink three times to learn. LED flashes once in the study after learning indicator flashes twice before the release button to learn, then the output mode to jog mode. After learning indicator blinks twice, three times before learning indicator blinks, release the learn button, then the output is self-locking manner. Learning blinks three times, put learning by
Key, then the output is interlocked.

5) Learning Method: Press the control panel button to learn hold for about two seconds, the learning indicator lights, release the button to learn, to learn pressing any key on the remote control to learn indicator light flashes three times after the change light, said control first road success in learning. Then press the remote control to learn another foreign one key indicator flashes three times after learning becomes off, the control of the second way to learn successful completion of this study. The control panel can memorize up to sixteen remote control, seventh will cover the first memory remote control. (Except interlocked learned two key, another one of the keys for the stop button)

6) Clear Learning code: Press the control panel button to learn hold for about two seconds, the learning light is on, do not release the button to learn, another about four seconds, the learning will light up and change out. Code means all memory clear, if you do not change the control output mode, release the learn button. To maintain a clean code is output before the output unchanged. Otherwise repeat 4) action
