| Prod Model: |
BR220D10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Outdoor AD Player |
Product Description

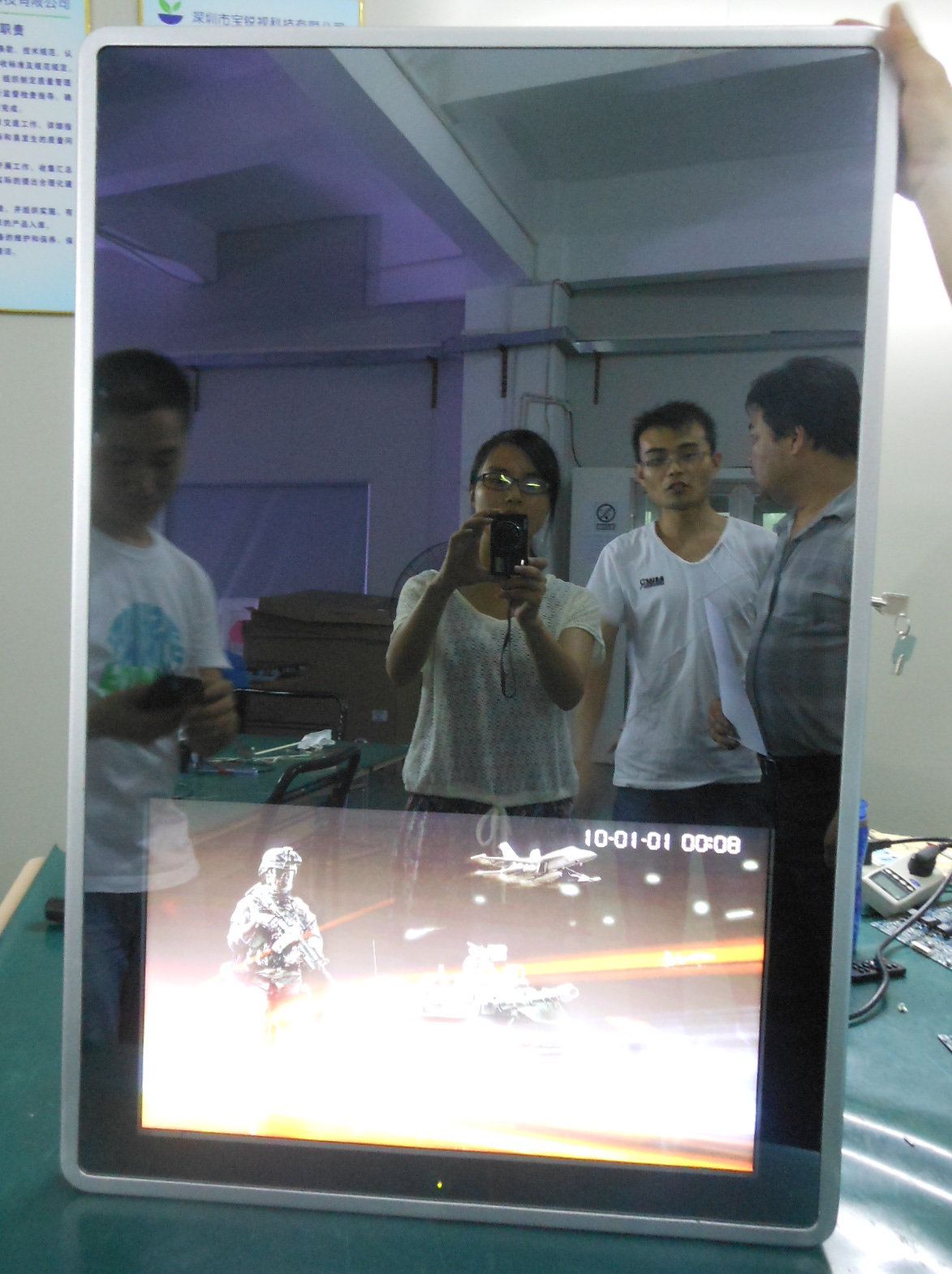

22" outdoors advertising machine is a high Visible LCD screen even under bright sun, this products use the advanced LCD screen. The products equip with the highlight backlight module, Brightness control panel and backlight compensation control system which are researched and developed absolutely by ourselves. The maximum backlight power is only 25 watts in the work of state and the brightness of our products can reach 1000 CD/ m2 (nits).
In such a brightness condition, the screen can show the images clearly in a bright light environment. On the screen menu, the switches for brightness and contrast regulating are adopted, so the brightness of screen can be reduced to meet the interior dark environments. The product can be widely used for the city square, bus stations, shopping centers, large supermarket chains, banks, telecommunications, business offices and other facilities of the terminal display.
Features:
Use LED backlight, all-day work and visible in the sun;
Wide temperature operating temperature;
Excellent contrast;
HFC control panel can automatically adjust the brightness from day to night and can extend the life of the display;
Fine-quality images, vivid, bright colors and high resolution.
The shape of a variety of flexible installation size, can be customized.
|
Active screen size |
21.46 inches (545.22mm) |
|
Active Display Area |
473.76(H) x 296.1(V) mm |
|
Active Display Area |
0.282mmx 0.282 mm |
|
Pixel Format |
1680 x 1050 |
|
Display Colors |
16.7M |
|
Contrast ratio |
1000: 1 |
|
Luminance, white |
1000cd/m2 |
|
Power Consumption |
< 46 |
Watts(Typ. ) |
|
Visible angle |
160/160(° ) |
|
Aspect Ratio |
16: 10 |
|
Response time |
5(ms) |
|
Display operating mode |
Transmissive mode, normally white |
|
Surface treatments |
Hard coating (3H), Anti-glare treatment of the front polarizer |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
