| Prod Model: |
CM2205A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
1000:1 |
| View Angle: |
Ud:80/80 R/L:85/85 |
| Power Consumption: |
30W |
| Power Supply: |
DC10.5-32V |
| Certification: |
FCC |
| Video Output: |
HDMI |
| Placement: |
Roof |
| Combination: |
Radio |
| Resolution: |
1920(H)×3(RGB)×1080(V) |
| Screen Size: |
21.5 |
| Voltage: |
10.5-32V |
Product Description
Products Discription:

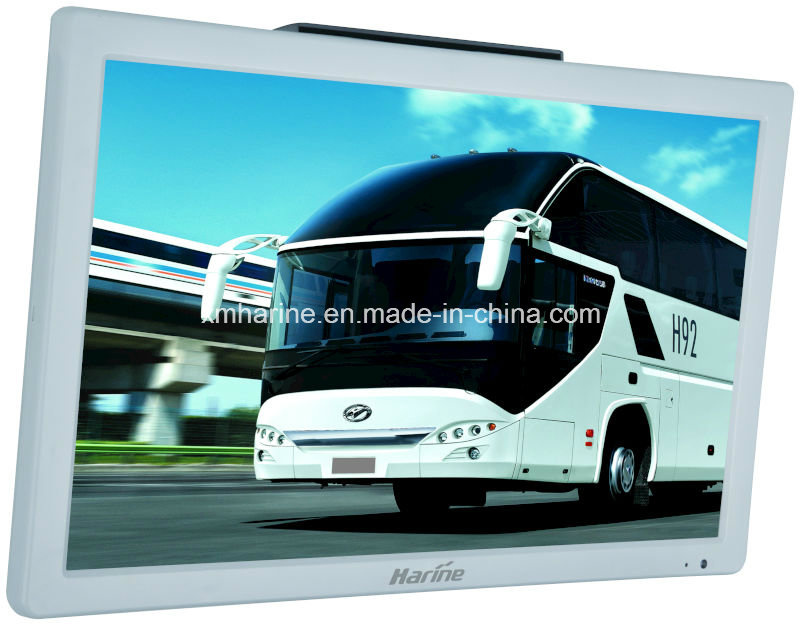

21.5 ROOF MOUNTED LED backlight monitor, AV(standard)/VGA(Optional)/HDMI(Optional) input with CE and FCC certificated.
Specification:
1)Screen Size : H495.6mmXV292.2mm
2)Backlight Source :LED
3)LCD Screen : TFT LCD Screen
4)Aspect Ratio :16:9
5)Resolution :1920(H)×3(RGB)×1080(V)
6)Contrast Ratio :1000:1
7)Brightness :250cd/m2
8)Response Period : 5ms
9)View Angle : U:80/D:80 L/R: 85
10)Analog Adjustments : Brightness, Contrast, Chroma(0~100)
11)Color System : PAL/NTSC optional
12)Video Input : 1VP-P 75Ω VGA signal input (optional)
13)Interface :RCA input or VGA input (optional)
14)Power Supply :DC 10.5-32V
15)Product Dimension : L530mm×W321mm×H47mm
16)Housing Color : Ivory/Grey/Black
17)Net Weight : ≤6KG
18)Gross Weight :≤7KG
19)Operating Temperature :-0~50°C
20)Storage Temperature : -20~60°C
21)Power Consumption : Less than 30 W
22)Cetification : CE FCC
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
Thanks and welcome for visiting:
1)Screen Size: | H:495.6mmXV:292.2mm |
| 2) Backlight Source: | WHITE LED |
| 3) Aspect Ratio: | 16:9 |
| 4) Resolution: | 1920(H) X3 (RGB) X1080(V) |
| 5) Contrast Ratio: | 1000:1 |
| 6) Brightness : | 250cd/m2 |
| 7) Response Time : | 5ms |
| 8)View Angle : | U:80/D : 80 L/R: 85 |
| 9) Color System : |
PAL/NTSC optional |
10)Video input : | 1VP-P 75Ω VGA signal input (optional) |
| 11) Power Supply : | 10.5~32V DC |
12) Storage Temperature: | -20~+60 |
