| Prod Model: |
GAS20RZ88889/10TB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12" with 8" |
| Color: |
Yellow (Amber) |
| Format: |
888.8 |
| IP Grade: |
IP65 |
| Control Way: |
RF Remote |
| Control Distance: |
30m-100m |
| Brightness Grade: |
7 Grades |
| Voltage: |
12V |
| Material: |
Iron Case, PCB Boards and LED Lamps |
| Name: |
Four Digit LED Numeric Display |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
12mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Market Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
1024 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Advertising |
| Certification: |
ETL |
Product Description

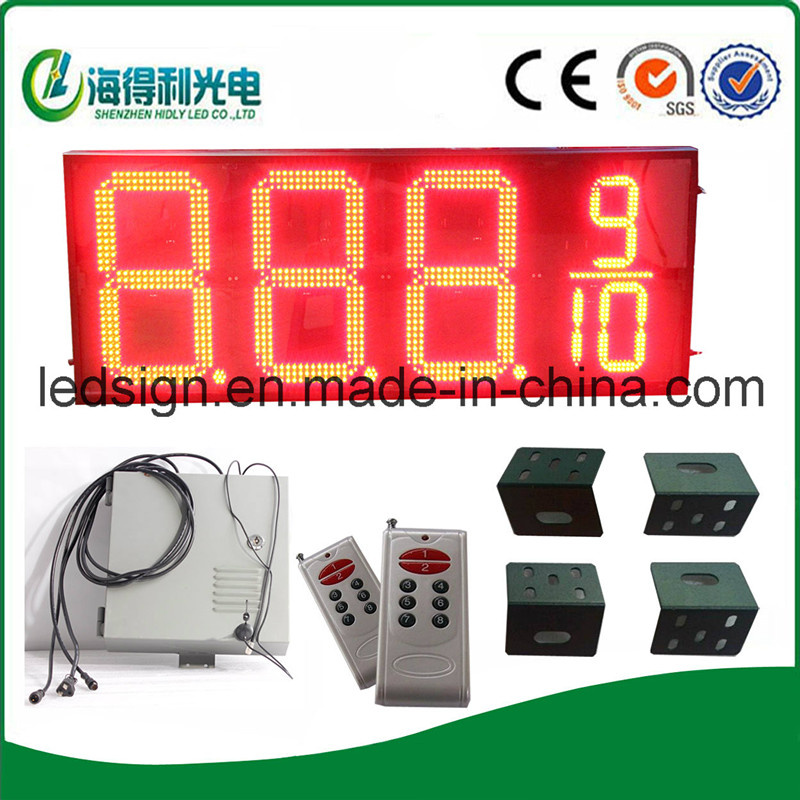

20inch Red Color 88898/10 Four Digit LED Numeric Display (GAS20RZ88889/10TB)
LED number display is mainly use at gas station to show the gas price.which is use the remote to change the price,High brightness.save energy,automatic adjustment brightness and son on are the features of led number display.if you have any interesting in hidly led number display. please contact to us Brenda directly.
Brenda
Tel: +8618028962817
Specifications for four digit led numeric display
1. High brightness and quality
2. Enerqy--savor
3. CE or RoHS
4. With RF controller
5. Wide range-8inch, 10inch, 12inch, 16inch, 18inch and 20inch
Four digit led numeric display is programmed by SCM and control the high-brightness LED to display many different price digits. It is energy saving, environmental protection, easy-operation, catch eyes, it is new-style gas price display.
-----------------------------------------------------------------------------------------------------------------
Specifications for four digit led numeric display
1. Highly brightness LED are arranged to several 8 figure, the digits can be up to 32PCS.
2. Single side, double sides, three sides, four sides.
3. Support remote editing, 30m distance for infrared communication; Support PC program and wireless communication, distance can be 800m.
4. Adjusting the brightness automatically by skylight brightness, the display can adjust 8levels of brightness automatically between evening and daytime
6. Visual distance. 100m
7. Visual angle. 90degree
8. Brightness. 4000CD/m2
9. Color. Red, green, amber, white or customized color.
10. Digit mesurement. 12.5inch(digit height) 1inch=25.4mm=2.54cm
11. Single dimension. 233mmX325mm
12. Location hole dimension. 218mmX310mm
13. Single 8 figure weight. 400g
14. LED quantity of one 8 figure. 250PCS
--------------------------------------------------------------------------------------------------------------------
Technical info for four digit led numeric display
1. Controller power. 1.5watt, one controller can drive 32PCS"8"figure
2. Max power of 12.5inch is 12watt
3. Voltage. AC110 or AC220.
4. One power of 12V30A can connect 14PCS LED signs(360*0.8/20=14)
5. Method of controlling LED brightness. Manual operation(by remote controller)and automatically control(by light sensor to adjust brightness higher during daytime, and lower during evening to save energy. )
6. Component.: Main board(one controller can drive up to 32PCS of"8"figure maximum. ), power supply, remote controller, infrared receiver port, light sensor.
7. We can customize your products according to your detailed requirements, like voltage, power, installation size, display colors etc.
--------------------------------------------------------------------------------------------------
Why Choose DongGuan LED Electronic. Co., Ltd?
* Long history, good reputation, high quality, best service, reasonable price in the market.
* Short delivery time. Sample delivery within 5 days ( normal size and design); Bulk order delivery within 10 working days (normal size and design)
* Professional technology support and professional engineer team.
* Larger export market in every country in the world
* Relative certifications: CE, UL, RoHS and son on.
* Salesman provide the professional service and support to every clients.
---------------------------------------------------------------------------------------------------------
FAQ
1. What is the lead time of sample?
---sample will be deliveried within 5 working days for normal size and design.
2. What is the lead time of wholesale order?
---wholesale order lead time: 10 working days for normal size and design.
3. How can i pay if you want to make business with you?
---T/T, 50% deposit, 50% before delivery; Sample must be payed full; Western Union, Paypal, and swift account, if you need other payment item, please discuss with us.
4. If i want to purchase some led display, which beyond your size and color option, can you make it?
---yes, we can customized for you.
5. Before send inquiry to us, please confirm which color and size you need, then we can quote you the best price...
Many thanks for your kind time to check our four digit led numeric display, if you need more information about our four digit led numeric display. Please feel free to contact me...And wish you have a nice day.
Size | 8inch | 12inch | 12.5inch | 16inch | 18inch | 20inch |
Quantity of LEDs | 108pcs | 250pcs | 250pcs | 273pcs | 635pcs | 669pcs |
Front Height | 195mm | 300mm | 310mm | 400mm | 462mm | 500mm |
PCB Size | 143mm*327mm | 225mm*317mm | 232mm*327mm |
300mmx422mm
| 353mmx498mm | 390mmx558mm |
Color | red / yellow / green / blue /amber / white |
Cabinet Size
(8889/10 or 888.8with waterproof iron cabinet) | 27*64.3*4cm | 40*100*4cm | 40*100*4cm | 49*126*4cm | 56*147.3*6cm | 62*164.5*6cm |
| Control box size: | 300*300*80mm |
| Control System | RF controller. RF remote, Meanwell Power supply and Fan,7 grade automatic adjustment brightness |
| Control Distance | 30m --100m |
| Package | Plywood with EPE, Netural package.
|
