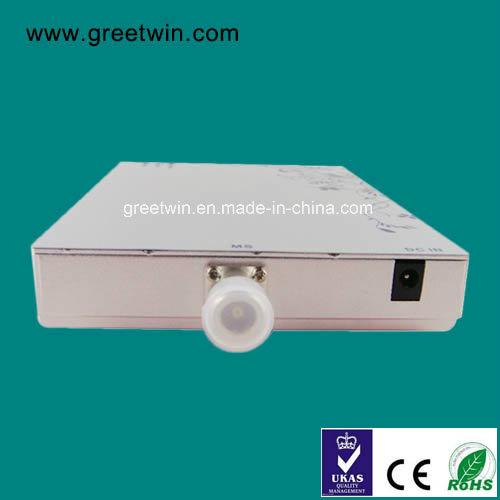

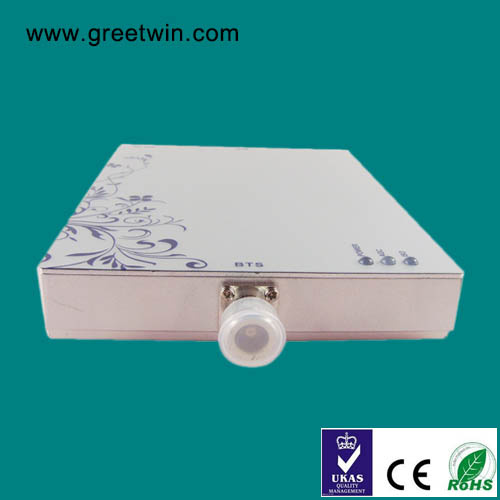

20dBm Egsm Repeater Amplifier Cell Mobile Cell Phone Amplifier (GW-20HEG)

20dBm Egsm Repeater Amplifier Cell Mobile Cell Phone Amplifier (GW-20HEG)
Price: US $ 20/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: GW-20HEG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:900MHz: 880-915MHz,925-960MHz
Type: Signal Repeater
Transmission Medium: Wireless

Product Description

20dBm Egsm repeater amplifier cell mobile Cell Phone Amplifier (GW-20HEG)

Model: GW-20HEG

Indoor Signal Booster series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.

Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.

Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 500~3000 m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.

5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.

Antenna isolation testing,Prevent the oscillation
7. Support system CDMA450, LTE700, LTE800, iDEN, CDMA800/GSM850,
GSM900, EGSM, AWS1700, DCS1800, PCS1900,WCDMA, LTE2600,etc


Standard Package:
1) AC90-264V, DC9V/3A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)


Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.


Frequency Range Uplink Downlink
CDMA 450 452.5 - 457.5MHz 462.5 - 467.5MHz
LTE700 A/B 699- 716MHz 729- 746MHz
LTE700 C 777- 787MHz 746- 756MHz
LTE700 D 788- 798MHz 758- 768MHz
 LTE 800 832- 862MHz 791- 821MHz
iDEN 806- 824MHz 851- 869MHz
CDMA 800/GSM 850 824- 849MHz 869- 894MHz
GSM 900 890- 915MHz 935- 960MHz
EGSM 880 - 915MHz 925 - 960MHz
AWS1700 1710- 1755MHz 2110- 2155MHz
DCS 1800 1710- 1785MHz 1805- 1880MHz
PCS 1900 1850- 1910MHz 1930- 1990MHz
WCDMA/3G 2100 1920- 1980MHz 2110- 2170MHz
LTE 2600 2500- 2570MHz 2620- 2690MHz
Max. Gain 60 - 70dB 65 - 75dB
Max. Output Power 14 - 20dBm 17 - 24dBm
Band width Wide Band
Manual Gain Control 31dB     / 1dB Step
Automatic Gain Control >20dB
Ripple in-band ≤ 6dB
Return loss ≤ -10dB
Noise Figure ≤ 6dB
Spurious Emission
&Intermodulation
9KHz~1GHz ≤ -36dBm
1~12.75GHz ≤ -30dBm
WCDMA Spurious Emission Mask Meet 3GPP TS 25.143 ( V 6.2.0 )
Modulation Accuracy ≤ 12.5%
Peak Code Domain Error ≤ -35dB@Spreading Factor 256
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Power Supply AC100-240V,DC9V/3A
Power LED Power indicator
ISO LED Red Autoexcitation or High Power
Green Standard
AGC LED Off Low Power or No power
Green  Standard
Red Full Signal,  ALC On
Mechanical Specification
RF Connector N-Female
Impedance 50 ohm
Humidity < 90%
Operating Temperature -10°C~55°C
Environment Conditions IP40
Size 204mm×128mm×27mm
Weight < 1.5 Kg
