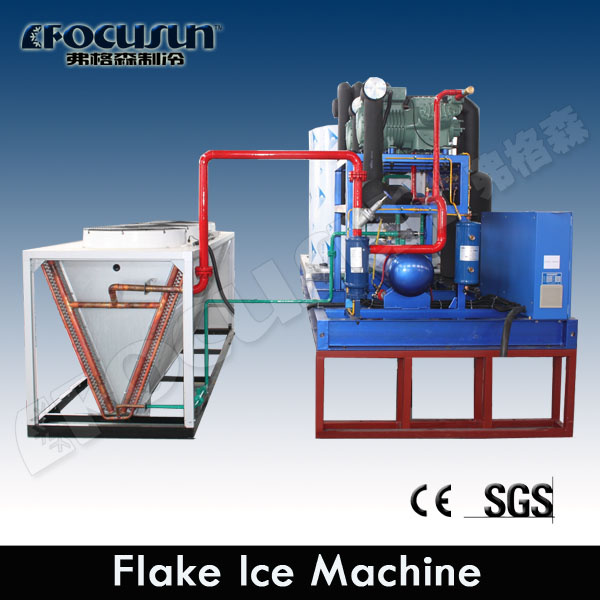

2016 New Advanced Flake Ice Plant

Prod Model:	FIF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor:	Bitzer/Bock/Copeland
Gas:	R22/R404A
Water Source:	Fresh Water/Seawater
Ice Shape:	Flake Ice
Condition:	New

Product Description

Company Information
 Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.

There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Flake Ice Feature
*Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.
*The thin ice can be directly used for stirring and mixing refrigerated materials.
*No acute edges and corners so it will not damage the surface of the cooled object.
*Large contact area and fast cooling speed.
*Easy to crush and mold.

Focusun supply 3 types flake ice maker:
1. fresh water technology;
Feature:
*Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
*Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
*The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
*Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
*Direct liquid feeding and dry evaporation, simple & safe to control.
*Integrated modular design, convenient to install and maintain.

2. seawater technology;
2.1. seawater technology-land use;
Design Feature:
*Use seawater as inlet water, which is mainly suitable for coastal areas;
*Adopt special anti-corrosion materials for pipes, deepened oil tank and marine used seawater condenser;
*A number of different daily capacities models are available;


Model	Daily  Capacity	Refrigerant	Electricity  consumption	Operating  weight	Size (L×W×H)
FIF-50WB	5T	R404A	21.8kw	1120kg	2200×1050×1550mm
FIF-60WB	6T	R404A	22kw	1600kg	2150×1350×1580mm
FIF-80WB	8T	R404A	26kw	1800kg	2450×1650×1600mm
FIF-100WB	10	R404A	34.3kw	3000kg	3550×1550×2100mm
FIF-150WB	15T	R404A	49.35kw	3400kg	4000×1850×2400mm
FIF-200WB	20T	R404A	68.4kw	3600kg	4200×2000×2914mm

2.2. seawater technology-marine use;
After making thorough research on the global market demand and climate conditions in different areas, Focusun develops Marine used flake ice making machine in order to provide professional service for marine cooling operation on the boat.
Focusun seawater flake ice plant is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels.

Design Feature:
Adopt Bitzer deepened oil tank and marine used seawater condenser;
Module design adopted with all spare parts welded;
Onboard ice machine operates normally regardless of the vessel's pitching and rolling;

Model	Daily  Capacity	Refrigerant	Electricity  consumption	Operating  weight	Size (L×W×H)
FIF-05	0.5T	R404A	2.5kw	530kg	1100×700×630mm
FIF-08	0.8T	R404A	3.67kw	560kg	1200×740×650mm
FIF-10	1T	R404A	4.3kw	620kg	1200×740×800mm
FIF-20	2T	R404A	7.15kw	680kg	1560×1200×960mm
FIF-30	3T	R404A	11.3kw	720kg	1700×900×1200mm
FIF-40	4T	R404A	14.94kw	780kg	1700×900×1201mm
FIF-50	5T	R404A	17.28kw	860kg	2200×1050×1550mm
FIF-60	6T	R404A	21.24kw	950kg	2200×1050×1606mm

3. 20ft/40ft containerized technology;
Container integrated structure enables easiness on installation, transportation and production;
Economically saving on operation and convenient maintenance.


Model		Daily  Capacity	Refrigerant	Electricity  consumption	Operating  weight	Size (L×W×H)
20ft	FIF-50C	5T	R404A	17.72kw	3600kg	6058×2438×2591mm
	FIF-100C	10T	R404A	34.31kw	4700kg	6058×2438×2591mm
	FIF-120C	12T	R404A	38.8kw	5500kg	6058×2438×2591mm
	FIF-150C	15T	R404A	49.35kw	5500kg	6058×2438×2591mm
	FIF-200C	20T	R404A	60.41kw	6100kg	6058×2438×2591mm
40ft	FIF-250C	25T	R404A	78.85kw	6500kg	12192×2438×2895mm
	FIF-300C	30T	R404A	102.45kw	6800kg	12192×2438×2895mm
	FIF-400C	40T	R404A	147.35kw	8000kg	12192×2438×2895mm
	FIF-500C	50T	R404A	176.3kw	8500kg	12192×2438×2895mm
	FIF-600C	60T	R404A	204.9kw	9200g	12192×2438×2895mm

Your demand:
Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, ice size in local market or desired ice making time, suitable suggestions provided or can be also specially customized.

PS: Standard ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);

FAQ
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
You're invited to visit our official website www.focusun.com, if any other questions, please don't hesitate to contact us, we're glad to help with your business project!
