| Prod Model: |
SZTP1150-6.95 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Popular Product 6.95 Inch LCD Display for Industry |
| Size: |
6.95" Inch |
| Model: |
Sztp1150-6.95 |
| Structure: |
Pet + Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
4 Wire Resistive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
16:9 |
| Application: |
Industrial Control System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
6.95 Inch |
| Customized: |
Cutom Service Available |
Product Description
Product Descreption

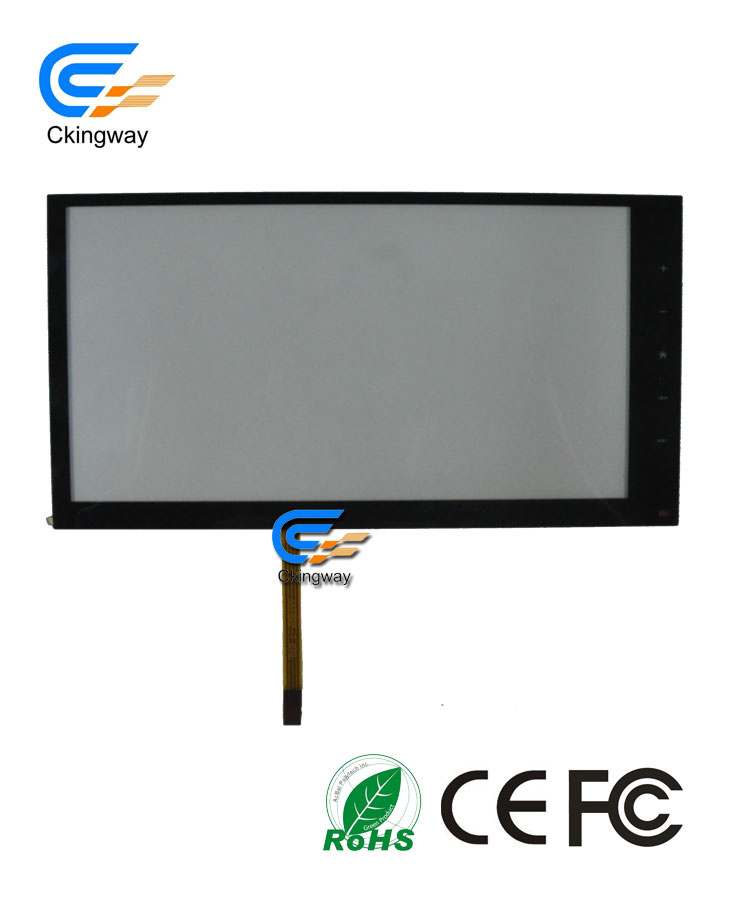

The Feathers Of 2016 Most Popular Product 6.95 Inch LCD Display for Industry As Bellow:
1. 6.95 Inch Size.
2.High Quality And High Sensitivity.
3.Adapt To Various Environmental Conditions.
4. 4 Wire And Pin 4 Plug Connector Resistive Touch Screen.
5.Custom Service Available.
| Size | 6.95" inch |
| Structure | PET + Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 4 Wire Resistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Packing & Delivery of 2016 Most Popular Product 6.95 Inch LCD Display for Industry:
Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.
2016 Most Popular Product 6.95 Inch LCD Display for Industry for Term of payment:
1.Full payment before delivery.
2.Prepay 30% as the deposite,T/T 70% the balance before delivery.
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.
4.Payment method can be nogotiated .
About Warranty: 1 Year without damaged by people actions.
