Shenzhen Ckingway Technology Co., Ltd. >> 2016 Hot Selling 6.95'' TFT-LCD Displays for Industry

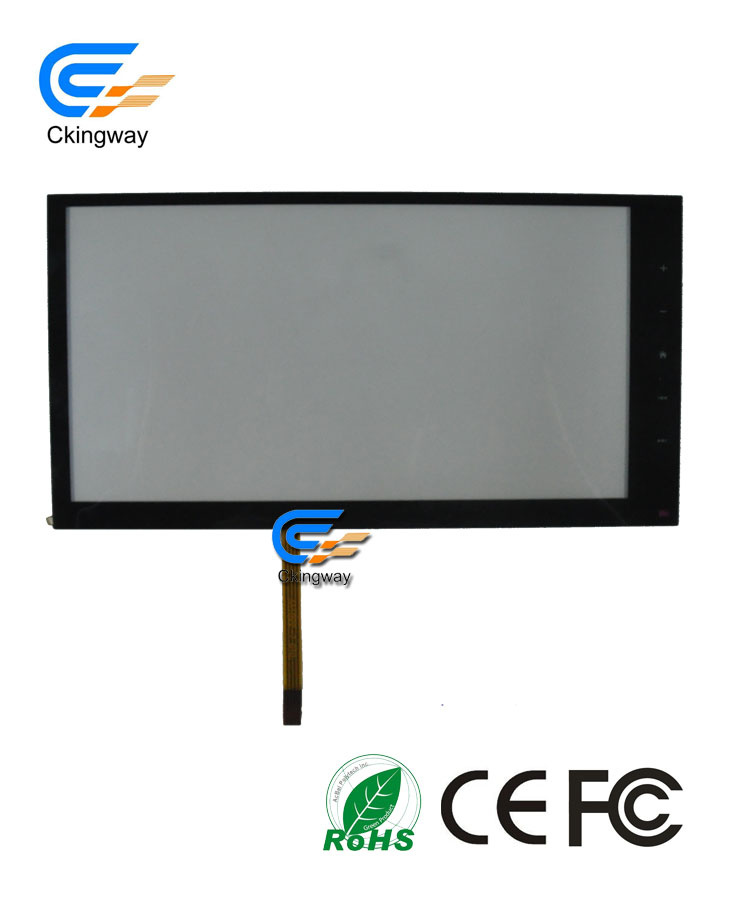

2016 Hot Selling 6.95'' TFT-LCD Displays for Industry

2016 Hot Selling 6.95'' TFT-LCD Displays for Industry
Price: US $ 6.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: SZTP1150-6.95
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Hot Selling 6.95'' TFT-LCD Displays for Industry
Size: 6.95" Inch
Model: Sztp1150-6.95
Structure: Pet + Film + Glass
Connector: Pin 4 Plug Connector
Thickness: 1.4 ± 0.15 mm
Touch Media: Finger, Touch Pen
Type: 4 Wire Resistive Touch Screen
Ratio: 16:9
Resolution: 4096*4096
Aspect Ratio: 16:9
Application: Industrial Control System
Screen Type: Resistive
Resistive Touch Screen Type: Analog
Screen Size: 6.95 Inch
Customized: Cutom Service Available

Product Description


Product Descreption


The Feathers Of 2016 Hot Selling 6.95''  TFT-LCD Displays For Industry As Bellow:

1. 6.95 Inch Size.
2.High Quality And High Sensitivity.
3.Adapt To Various Environmental Conditions.
4. 4 Wire And  Pin 4 Plug Connector Resistive Touch Screen.
5.Custom Service Available.


Size6.95"  inch
StructurePET + Film +  Glass
ConnectorPin 4 plug connector
Thickness1.4 ± 0.15 mm
Touch MediaFinger, Touch Pen
Type4 Wire Resistive Touch screen
Ratio16:9
Resolution4096*4096
Response Time≤ 10 ms
Supply Voltage5V DC , 35 mA
Transparent≥ 75%
Screen ResistanceX:100-500Ω Y:200-1000Ω
Insulation Resistance≥20MΩ(10V DC)
Pressure50 - 150 g
Surface Hardness3H
Life Span> 1,000,000 time knocking ;
≥ 100,000 time in paddling
Operating Temperature- 10ºC ~  +60ºC
Storage Temperature- 20ºC ~ +70ºC
Storage Humidity20 ~ 85% RH (except  congeal fog)
Custom ServiceAvailable


Packing & Delivery of 2016 Hot Selling 6.95'' TFT-LCD Displays for Industry:

Packing:  Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.


2016 Hot Selling 6.95''  TFT-LCD Displays For Industry  for Term of payment:

1.Full payment before delivery.

2.Prepay 30% as the deposite,T/T 70% the balance before delivery.

3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.

4.Payment method can be nogotiated .

About Warranty: 1 Year without damaged by people actions.
Ckingway introduction

Ckingway technology Co., Ltd. Established in 2009, we focus researching & developing, design, manufacture and sales integrated into one target on resistive touch panel, capacitive touch panel and LCD/LCM (liquid crystal display module). Coming along with electronics consumer products increasing rapidly recently, our product has been holding steady marketing share in touch display field under our teamwork strongly, while industry chain getting more ruggedized, professionalized.

Ckingway's product range of application widely, is applied to automobile electronic, medical equipment, industrial control, security monitor and digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, all products met RoHS testing request completely and have RoHS certification.

Ckingway holds business ideology report that: Quality and service will not stopping to develop to be excellent., creat value for customers. We implement management policy with institutional and hommization combination, for" connecting people, as career into integrity, profits shared each other, progressing by together" talent development strategy. R&D team with efficient and unite we had, can be make a response to market rapidly.
