| Prod Model: |
FIF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Water Source: |
Fresh Water/Seawater |
| Gas: |
R22/R404A |
| Voltage: |
220V/240V/380V/415V/440V |
| Frequency: |
50Hz/60Hz |
| Ice Shape: |
Flake Ice |
| Condition: |
New |
Product Description
Focusun supply 3 types flake ice maker:
1. fresh water technology;
Feature:
Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
Direct liquid feeding and dry evaporation, simple & safe to control.
Integrated modular design, convenient to install and maintain.
2. seawater technology;
2.1. seawater technology-land use;
Design Feature:
Use seawater as inlet water, which is mainly suitable for coastal areas;
Adopt special anti-corrosion materials for pipes, deepened oil tank and marine used seawater condenser;
A number of different daily capacities models are available;
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Operating
weight |
Size (L×W×H) |
| FIF-50WB | 5T | R404A | 21.8kw | 1120kg | 2200×1050×1550mm |
| FIF-60WB | 6T | R404A | 22kw | 1600kg | 2150×1350×1580mm |
| FIF-80WB | 8T | R404A | 26kw | 1800kg | 2450×1650×1600mm |
| FIF-100WB | 10 | R404A | 34.3kw | 3000kg | 3550×1550×2100mm |
| FIF-150WB | 15T | R404A | 49.35kw | 3400kg | 4000×1850×2400mm |
| FIF-200WB | 20T | R404A | 68.4kw | 3600kg | 4200×2000×2914mm |

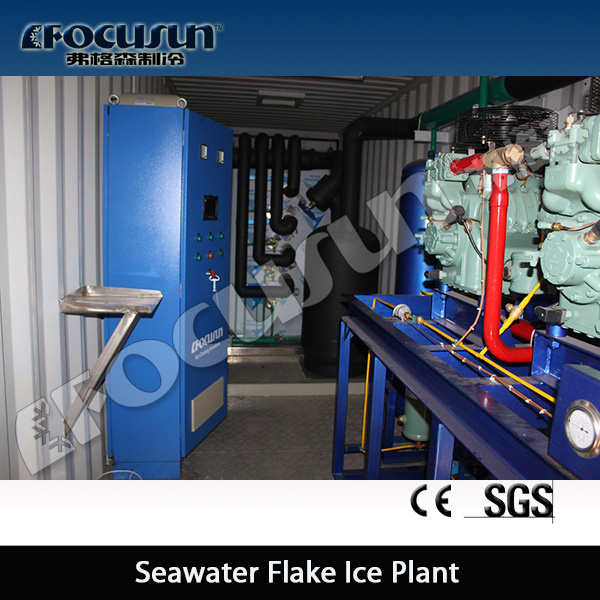

2.2. seawater technology-marine use;
After making thorough research on the global market demand and climate conditions in different areas, Focusun develops Marine used flake ice making machine in order to provide professional service for marine cooling operation on the boat.
Focusun seawater flake ice plant is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels.
Design Feature:
Adopt Bitzer deepened oil tank and marine used seawater condenser;
Module design adopted with all spare parts welded;
Onboard ice machine operates normally regardless of the vessel's pitching and rolling;
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Operating
weight |
Size (L×W×H) |
| FIF-05 | 0.5T | R404A | 2.5kw | 530kg | 1100×700×630mm |
| FIF-08 | 0.8T | R404A | 3.67kw | 560kg | 1200×740×650mm |
| FIF-10 | 1T | R404A | 4.3kw | 620kg | 1200×740×800mm |
| FIF-20 | 2T | R404A | 7.15kw | 680kg | 1560×1200×960mm |
| FIF-30 | 3T | R404A | 11.3kw | 720kg | 1700×900×1200mm |
| FIF-40 | 4T | R404A | 14.94kw | 780kg | 1700×900×1201mm |
| FIF-50 | 5T | R404A | 17.28kw | 860kg | 2200×1050×1550mm |
| FIF-60 | 6T | R404A | 21.24kw | 950kg | 2200×1050×1606mm |
3. 20ft/40ft containerized technology;
Container integrated structure enables easiness on installation, transportation and production;
Economically saving on operation and convenient maintenance.
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Operating
weight |
Size (L×W×H) |
| 20ft | FIF-50C | 5T | R404A | 17.72kw | 3600kg | 6058×2438×2591mm |
| FIF-100C | 10T | R404A | 34.31kw | 4700kg | 6058×2438×2591mm |
| FIF-120C | 12T | R404A | 38.8kw | 5500kg | 6058×2438×2591mm |
| FIF-150C | 15T | R404A | 49.35kw | 5500kg | 6058×2438×2591mm |
| FIF-200C | 20T | R404A | 60.41kw | 6100kg | 6058×2438×2591mm |
| 40ft | FIF-250C | 25T | R404A | 78.85kw | 6500kg | 12192×2438×2895mm |
| FIF-300C | 30T | R404A | 102.45kw | 6800kg | 12192×2438×2895mm |
| FIF-400C | 40T | R404A | 147.35kw | 8000kg | 12192×2438×2895mm |
| FIF-500C | 50T | R404A | 176.3kw | 8500kg | 12192×2438×2895mm |
| FIF-600C | 60T | R404A | 204.9kw | 9200g | 12192×2438×2895mm |
Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, water source, suitable suggestions provided or can be also specially customized.
PS: Standard ice maker is designed on 30ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);
Don't hesitate to contact us, will reply within 24 working hours!
