| Prod Model: |
RF-V22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
RF-V22 |
| Weight: |
0.3kg |
| Dimension: |
45X32.8X12.8mm |
| Positioning Accuracy: |
10-15m (Open Sky) |
| GPS Chip: |
Mtk Chip |
| Band: |
850/900/1800/1900hmz |
| Working Time: |
2-3days |
| Long Time Standby: |
6-7days |
| Working Temperature: |
20 ~ +70 |
| Use: |
Automotive |
| Screen Size: |
4.3" |
| Chip: |
Mtk Chip |
| Brand: |
Haoday |
Product Description

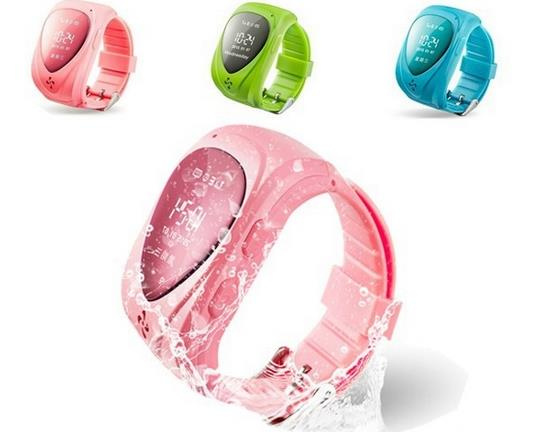

2015 waterproof Kid GPS watch, children Child Watch, Child gps tracker bracelet or Wristband for Children kid smart watch RF-V22
Feature
GPS+GSM+GPRS wireless network
A-GPS for fast locating
Fashionable Unique design
GSM 850/900/1800/1900 MHz
Built-in high sensitive MTK GPS chip
LDS laser GSM antenna with Stronger Signal
Ergonomics design
Environmental TPE wristband
Long working time with 400mAh battery
Two-way communication function
Phone call avaliable - 2 family numbers supported
Tamper Alarm
Low battery alarm
SOS alarm
Geo-fence alarming
Web based tracking software and Mobile APP
Specification
Brand | Haoday |
| Backup Battery | 400mah |
| Power Comsumption | 55mA/h |
| Dimension | 45X32.8x12.8mm |
| Weight | 39g |
| Work time | 2-3 days in normal mode and 6-7days stand by time |
| Operating Temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Module | MTK3336 |
| Chipset | MTK MT6260 |
| GPS Sensitivity | -159Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 5-15meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Sensor | Accelerometer , Light Sensor |
| LED | LED display to show GPS/GSM status and date/time |
| Button | ON/OFF button, 2 Fast Phone call buttonS |
| Interface | 1 USB recharger |
