| Prod Model: |
OP1100 |
| Markets: |
North America,Western Europe |
| Frequency Range: |
2.412GHz-2.472GHz |
| Transmit Power: |
16dBm-19dBm |
| Wireless Standard: |
802.11 B/G/N |
| Receiver Sensitivity: |
71-74dBm |
| Operating Voltage: |
20V(+/-10%) |
| Operating Current: |
4A |
| Wireless Network Type: |
Station/Ap Mode |
| Security: |
Wep/Wpa-Psk/Wpa2-Psk |
| Encryption Type: |
Wep64/Wep128/Tkip/AES |
| Type: |
WIFI Wireless Speaker |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Radio |
| SNR: |
70-80dB |
| Color: |
Black |
| Special Function: |
With Remote Control |
| Compatible Product: |
Universal |
| Interface: |
3.5mm Line in |
| Sound Channel: |
1 |
Product Description
DESCRIPTION

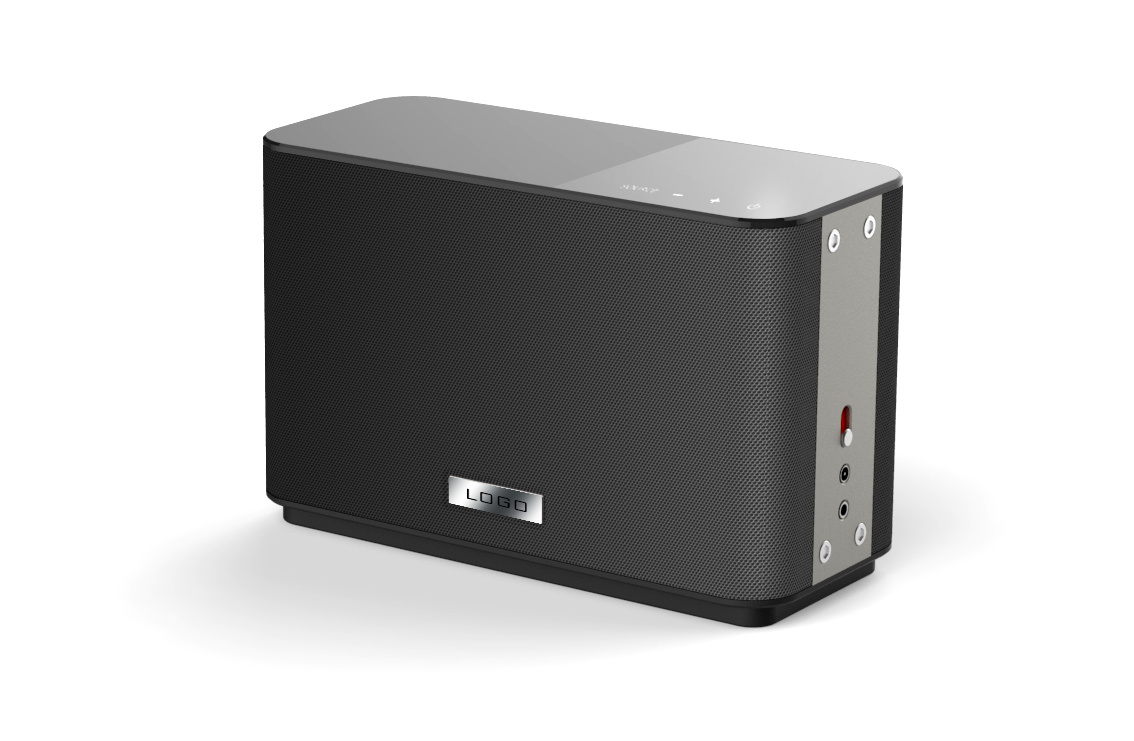

OP1100 Wi-Fi speaker is an affordable and flexible wireless speaker with Wi-Fi connectivity. OP1100 offers rich, detailed and vibrant sound despite its size and comes with two tweeters for 360 Degree sound,and an upward-firing subwoofer for powerful bass.OP1100 specification is used to build for wireless home audio system.It was designed for supporting the 802.11b/g/n , support QPLAY and compatible DLNA. OP1100 support high quality music format like APE,FLAC etc.
FEATURES
| Compatible with WiFi 802.11b/g/n, 2.4GHz band only Support for WiFi STATION/AP mode |
| Support for TCP/IP/UDP network protocol |
| Support UPnP 1.0 Specifications |
| Support for 3.5mm Line In |
| Support for MP3, APE,FLAC,WAV, OGG, AAC and other main musical formats |
| Compatible with DLNA protocol, support DMP, DMR |
| Support DHCP protocols. |

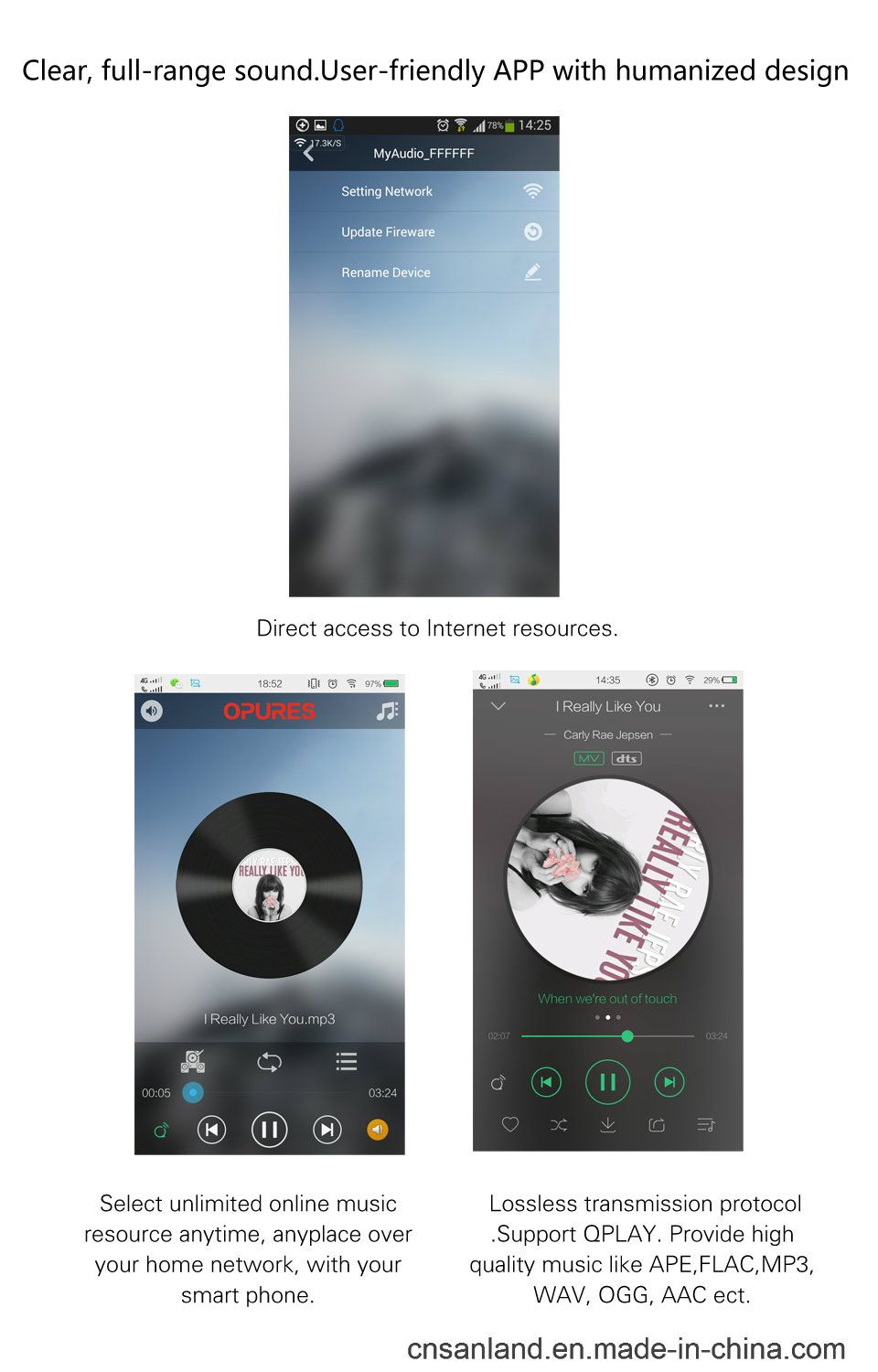

| Support smart phone as remote controller. |
| Web configuration on network settings. |
| Sample rate: 32/44.1/48kHz; Bit rate up to 320k bps; stereo |
| 24bit DAC SNR 105dB ("A" weighted), THD+N -95dB at 48kHz |
| Hardware reset to factory default settings. |
BASIC PARAMETERS
| | ITEM | PARAMETER |
| Wireless Parameters | Standard Certification | N/A |
| Wireless Standard | 802.11 b/g/n |
| Frequency Range | 2.412GHz-2.472GHz |
| Transmit Power | 64QAM: 19 dBm(Max.) |
| HT20: 17 dBm(Max.) |
| HT40: 16 dBm(Max.) |
| Receiver Sensitivity | 802.11b: -74dBm |
| 802.11g: -74dBm |
| 802.11n: -71dBm |
| Hardware Parameters | Data Interface | Stereo audio input interface with 3.5mm |
| Operating Voltage | 20V(+/-10%) |
| Operating Current | 4A |
| Operating Temperature | -25ºC - 85ºC |
| Storage temperature | -40ºC - 135ºC |
| Dimension | |
| Software Parameters | Wireless Network Type | Customizable (Station/AP mode) |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Encryption Type | WEP64/WEP128/TKIP/AES |
| User Configuration | WEB page |
| Client Application Software | Support for custom software |
OP1100 System
| Specification | High efficiency Class-D amplifier |
| 10W x 2 mid-range 1.5" 4 ohm |
| 20W Sub-woofer 4" 8 ohm |
| Anti-Clipping |
| Multi-band bi-quad for sound enhancement |
| DC Input : 20V 4A |
| Input | Wi-Fi |
| 3.5mm Line In |
| Control | Soft key | Source |
| Vol - |
| Vol + |
| Mute |
| On/Off slide switch |
| LED indicators | Blue when AP mode |
| Cyan when Station mode |
| Green when Line In |
| Red when mute |
