| Prod Model: |
CY-58-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Evacuated Tube |
| Circulation Type: |
Direct / Open Loop (Active) |
| Heating System: |
Thermosyphon (Passive) |
| Connection Type: |
Direct-Plug |
| Installation: |
Freestanding |
| Outer Tank Diameter: |
420/460/470/480mm |
| Inner Tank Diameter: |
315/360/370/380mm |
| Outer Tank Material: |
Galvansied Steel with Ivory White Coating |
| Inner Tank Material: |
SUS304-2b |
| Insulation Thickness: |
50/55/60mm |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CCC |
| Composition: |
Solar Water Heater Tank+Bracket+Vacuum Tubes |
Product Description

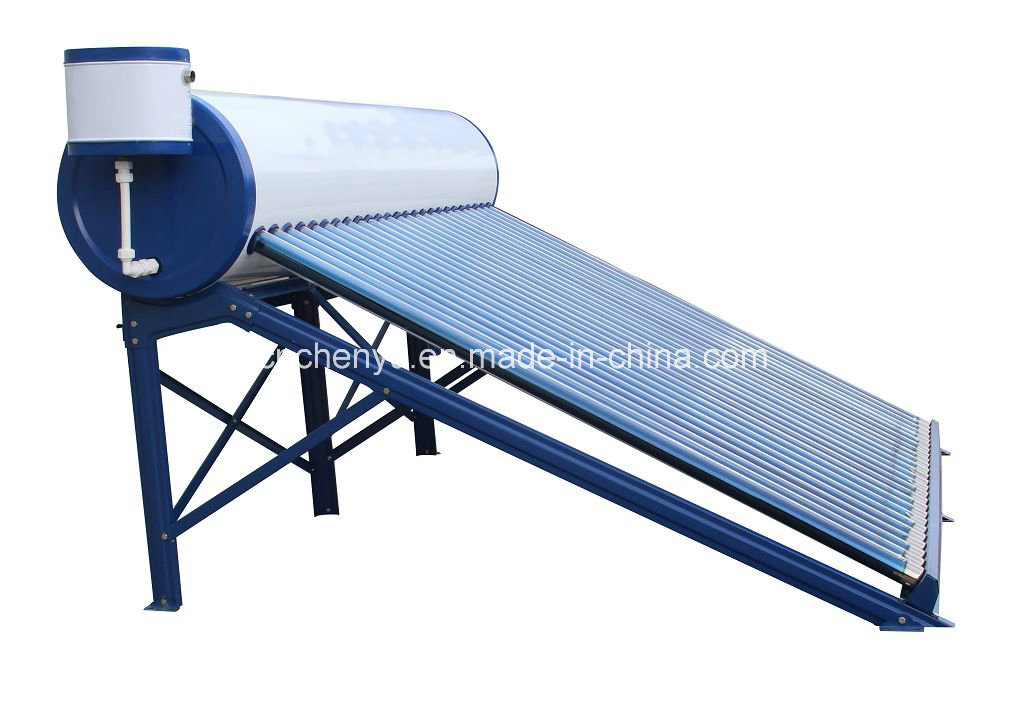

2015 High Quality Assured Compact Non-Pressure Solar Water Heater with Side-Mount Assistant Tank
Solar water heater specification:
2015 High Quality Assured Compact Non-Pressure Solar Water Heater with Side-Mount Assistant Tank |
System capacity |
100 liters-360 liters |
Outer tank |
Color coated steel <0.30mm-0.40mm> |
Inner tank |
Food grade SUS304-2B stainless steel <0.30mm-0.50mm> |
Insulation |
40KG/CBM High density polyurthane foam |
Frame/bracket |
Galvanized steel with high quality spray painting <1.2 mm- 1.5mm> |
Solar collector tube |
Specification 47x1500mm, 58x1800mm |
Thickness 1.6mm borosilicate 3.3 glass |
AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5) |
SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5) |
Vacuum tightness P< 0.005Pa |
Idle sunning property parameter Y=260-300 m².°c/KW |
Black Tube Holder |
High quality Nylon 66, adjustable |
Welding |
Auto pulse welding or Auto argon arc welding |
Holes design of tank |
Air vent, overflow, inlet,outlet,sensor and electric heater (or as customer request) |
Optional accessories |
Auxiliary electric heater 1.5/2.0/2.5KW |
Assistant tank 3/5/8/10/12/40/50 liters |
Intelligent controller |
Magnesium rod |
Solar water heater working principle
Core Part of Solar Water Heater is 3 Target Solar Vacuum Tubes.
"managenent firm-painted technology" and auto compater-controlled coating, to make vacuum tube has a high absorb efficiency, the cold water is heavy than hot water,hot waer is flow up in the vacuum tube, cold water go down, the water in the tank can be heated sooner or later.
