| Prod Model: |
WiFi Doorbell |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Video Doorbell |
| Talkback Type: |
Color Video |
| Wireless: |
Wireless |
| Active Doorbell: |
Wireless Video Doorbell |
| Wireless Video Doorbell Function: |
Remote Control Unlocking |
| Application Scope: |
Home |
| Waterproof: |
Waterproof |
| Power Source: |
Plug |
| Brand: |
Cobell |

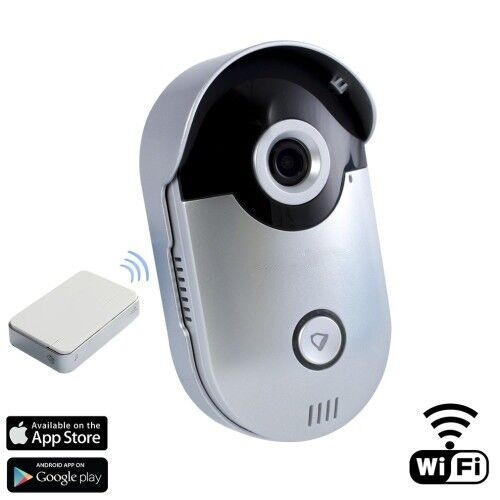

Product Description
1. Features
(a) When visitor presses the doorbell button, it will send live video feed to your smart phone
(b) Wherever you are, you can get a call for quick checking and talk with the visitor
* Patent Design |
* 2.5mm Wide-Angle Lens |
* Compatible with Free IOS and Android App |
* Support IEEE 802.11 b/g/n wireless connection |
* Support WEP, WPA and WPA2 encryption |
* Support 12-24VAC (12VDC optional) current |
* Support two-way audio |
* Support Motion Detection alarm |
* Support P2P |
* IP66 waterproof |
* FCC, CE, ROHS standard |
* Release the electric lock |
2. Specification
Model: |
Cobell |
RF Bell Receiver |
Image Sensor |
Image Sensor |
Color CMOS sensor |
Null |
Display Resolution |
VGA(640*480),QVGA(320*240) |
Null |
Lens |
Lens Type |
Glass Lens |
Null |
Focal Length |
2.5mm |
Null |
Aperture |
F2.5 |
Null |
Angle of view |
135° |
Null |
Audio |
Input/Output |
Built-in two-way audio |
Null |
Audio Compression |
ADPCM/G.726 |
Null |
Video |
Video Compression |
MJPEG |
Null |
Image Frame Rate |
15fps |
Null |
Resolution |
VGA(640*480),QVGA(320*240) |
Null |
Stream |
Single stream |
Null |
Night Visibility |
4pcs IR-LEDS, Night vision up to 10 meters |
Null |
Light Frequency |
50Hz, 60Hz |
Null |
Network |
Ethernet |
10/100Mbps RJ-45 port (Optional) |
Null |
Protocol |
TCP/IP, UDP, DHCP, P2P |
Null |
Wireless Standard |
IEEE 802.11b/g/n |
Null |
Data Rate |
IEEE802.11b: 11Mbps(Max.)
IEEE802.11g: 54Mbps(Max.)
IEEE802.11n: 150Mbps(Max.) |
Null |
Wireless Security |
WEP, WPA, WPA2 |
Null |
App |
By Phone |
Android, iOS |
Null |
Physical |
Dimension |
117(L)*64(W)*23.6(H) mm |
103(L)*69(W)*23(H)mm |
Net Weight |
90g |
70g |
Gross Weight |
400g |
Shell |
ABS Plastic |
ABS Plastic |
Power |
Power Supply |
12~24VAC/0.5A(12VDC optional) |
3VDC
Standby current<0.4mA
Working Current=50mA |
Battery |
Null |
2 pieces AA Battery |
Environmental |
Operate Temper. |
-20° ~ 50°C (-4°F ~ 122°F) |
Operating Humidity |
20% ~ 85% non-condensing |
Storage Temper. |
-20°C ~ 60° (-4°F ~ 140°F) |
Storage Humidity |
0% ~ 95% non-condensing |
Other Feature |
Waterproof |
IP66 |
Indoor |
User Accounts |
Two levels user role |
Null |
Certification |
CE, FCC, RoHS |
Warranty |
Limited 1-year warranty |
Zilink is the supplier of intelligent electronic products, especially in smart home electrical appliance. The company specializes in video surveillance technology, as well as designing and manufacturing innovative IP and Wi-Fi surveillance products. The product line ranges from HD PTZ IP cameras, doorbell, switch to smart home gateway.
