| Prod Model: |
XH-18W-5V01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
74*29*42mm |
| Input Voltages: |
AC100-240V (Full Range), 50/60Hz |
| Input Current: |
0.4A |
| Output Voltage Range: |
5V/±0.5V |
| Output Current Range: |
0.1A-2.5A |
| Maximum Power: |
12.5W |
| DC Plug Size: |
2.5*0.7*8-10mm |
| DC Cable Length: |
1.2/1.5/1.8m (According to Requirement) |
| Protection Fuction: |
Over-Current/Voltage and Short-Circuit |
| AC Plug: |
European Standard (UK/Au/Jp/American Plugs, etc. C |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
Tablet PC |
Product Description

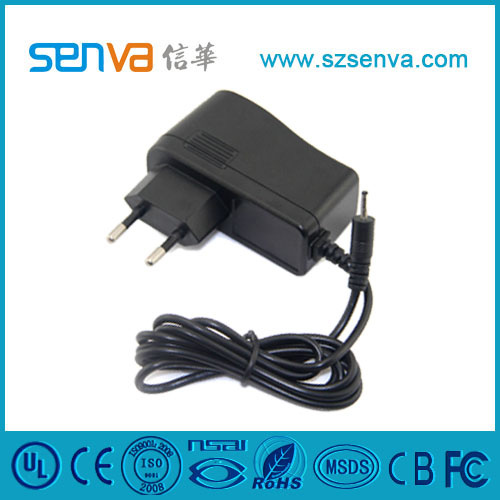

2014 Universal AC/DC Power Adapter for tablet
Features:
Outer Shell model No.:"LCF-108" ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？Dimensions:62*39*32MM？
Input Voltages: AC100V-240V, 50/60HZ
Input Current (rms): 0.4A
Output Voltage Range:5V/±0.5V
Output Voltage Regulation: ±0.5%
Output Current Range: 0.1A-1A
Maximum Power (Po): 5W
DC Plug Size: "Micro 5P" DC Plug(according to customer's requirement)
DC Cable Length: L=1.2M ？(according to customer's requirement) ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？
Protection Fuction: over-current/voltage and short-circuit
Load Regulation: ±0.5%
Detailed Product Description
Operating Temperature: 0-40
Storage Temperature:-20-75
(regular work after two hours in normal temperature)
Operating Relative Humidity: Max. 95%
MTBF: ±50,000 hours ？ ？ ？ ？ ？ ？ ？ ？
AC Plug: European standard(UK/AU/JP/American plugs, etc. ？can be custom-made) ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？？
Safety Approved Certification: UL, CE, RoHS, CB, ISO9001:2008, NSAI, MSDS, etc.
Rippel and Noise:≤100MV
Net Weight:0.073KG
Package: white box or Poly bag
？Input Characteristics
？？ 1 Input voltage
？？？？？？ Rated Voltage AC 100-240V
？？？？？？ Variation Range AC 90~264V
？？ 2 Input Frequency
？？？？？？ rated Frequency 50/60Hz
？？？？？？ Variation Range 50~70Hz
？？ 3 Input Current
？ ？ ？ ？1A mps max at any input voltage and rated,DC output rated load.
？？ 4 Inrush Current
？？？？？？ 50Aamps max .cold start at 100-240Vac input,with rated load.
？？ 5 AC Leakage Current
？？？？？ 0.25mA Max.At240Vac input.
Products show:
About ？ us
Shipping info
Why choose us?？
1. Professional manufacturer with the experience of 9 years for producing & 5 years for exporting, etc.
2. Factory direct sales with competitive price but high quality
3. Many certifications, e.g.: UL/CE/FCC/CB/RoHS/NSAI/MSDS/IOS9001:2008, etc.
4. Quick response？
5. Small MOQ
6. Strong OEM/ODM ability
7.10 minutes to airport？
8. Best service
Shenzhen Xingyuan Senva Technology Co., Ltd
As？a？leading？manufacturer？of？switching？power？supplies,we？supply？AC/DC？adapter,desktop？power？adapter,？wall？mount？adapter,？LED？power？supply,？security？power？adapter,？USB？car？charger,？USB？power？adapter？.
If？you？are？interested？in Senva`s？products,welcome？to？contact？us？for？more？details!
|
Input Characteristics |
|
1 Input voltage |
|
Rated Voltage AC 100-240V |
|
Variation Range AC 90~264V |
|
2 Input Frequency |
|
rated Frequency 50/60Hz |
|
Variation Range 50~70Hz |
|
3 Input Current |
|
0.4Amps max at any input voltage and rated,DC output rated load. |
|
4 Inrush Current |
|
50Aamps max .cold start at 100-240Vac input,with rated load and 25°C ambient. |
|
5 AC Leakage Current |
|
1A Max.At240Vac input. |
