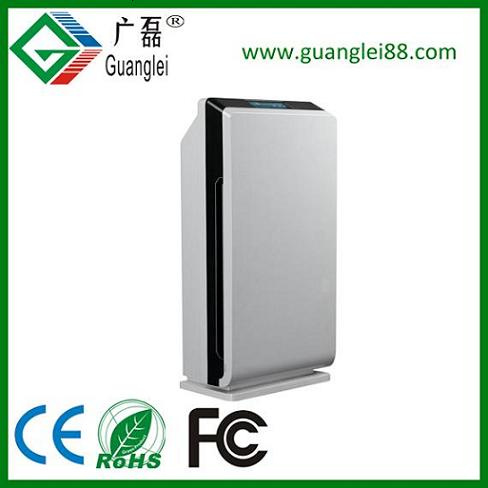

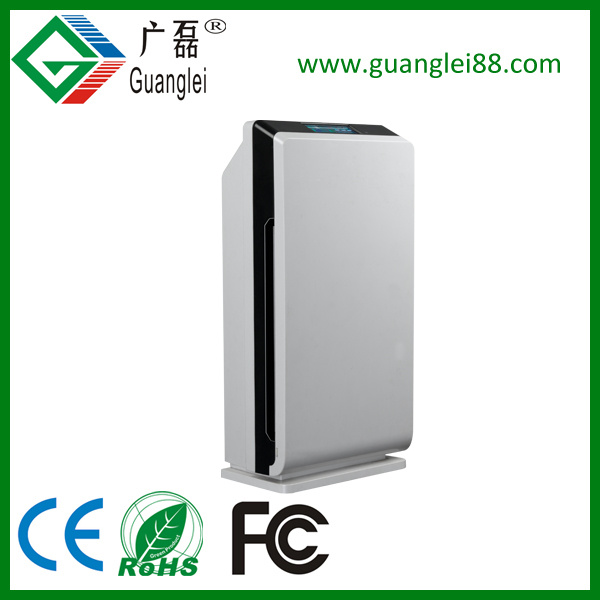

2014 OEM 220V HEPA Air Purifier with Active Carbon and UV

Prod Model:	GL-8128
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Home
Purifying Technology:	Air Ionizer
Air Volume:	301-400m³/h
Power Source:	AC Source
Certification:	CE, RoHS, CQC
Operating Principle:	Active + Passive
Structure:	Floor Standing
Anion Density:	>4000000pcs/m³
Type:	Ozone

Product Description

2014 oem 220V hepa air purifier with active carton and UV
GL-8128

UVC air purifier
HEPA air purifier
Active Carbon Air Purifier


OPERATING PROCEDURE:

1. Insert the plug, switch on the power, Press On/Off or on the remote control. The machine begins to self check for3 seconds after a beep created by the buzzer. The indicator lights on the control panel and the words as well as graphics on the screen all display The machine has entered into a working state of automatic mode.

2. Anion generator starts working, Air volume wokrs at a low level. Sensor detects the corresponding datas of temperature, humidity, dust and peculiar smell, LCD displays the working state. If no other operations, the backlight will be automatically off after 10 seconds.

COMMON OPERATION MODE

1. After turn on the machine. Working at a automatic mode as default, it automatically adjusts the air volume according to air quality.

2. Adjust"Auto/Manual"button to choose Auto Mode/ Manual Mode. In manual mode, setting a working way you like


AUTO/MANUAL MODE

. Press"Mode" to choose Manual/Auto Mode

1. Turn on the machine, it works at Auto Mode as default.

2. Press this button to choose Auto mode and Manual mode. There will be a long or short beep voice.
3. Working at Auto mode: If the air fresh, the machine works at a low speed; If air pollution is lowerl, the machine works at a middle speed; If air pollution is serious, the machine works at a high speed;

4. In manual mode, the machine can't automatically adjust air volume itself

ADJUST FAN SPEED

Press 'Fan' button to adjust the fan speed

1. In Manual mode, air volume can be in a low speed, middle speed or high speed.
High speed: Remove dust pollen fast. Low speed can be choosed only when the machine are in a silent state

2. In automatic mode: If air fresh, the machine works at a low speed; If air pollution is lower, the machine works at a middle speed,; If air pollution is serious, the machine works at a high speed. The second switch should be waited at least for 30 seconds after Automatic transmission

MAIN FUNCTION
1. Monitor the air quality in real-time, the machine works automatically
2. Efficient remove the harmful gas such as formaldehyde, benzene TOV, remove odors, etc.
3. Active oxygen monitor in real-time. Automaticly control the concentration of active oxygen released by machine
4. Ultraviolet sterilization, Every kinds of microorganisms can be killed, including reproductive body, spores mycobacteria, fungi, viruses, etc
5. The front filter, formaldehyde filter, activated carbon filter, HEPA filter. Four layers high efficiency filtration
6. High quantity of anion can absorb harmful materials, Promote the body's metabolism, improve human immunity


l  Specification:

1) Rate Voltage	AC100-240V/50 60HZ
2) Power	80W
3) Ozone output	500mg/h
4) Negative-ion output	5*106pcs/cm3
5) Dimensions	320*199*645 mm
6) Net weight	8kg
7) Color	milk white
8) Materials	ABS
9) UV lamp power	5W
11) Timing	1H 2H 4H 8H 12H
12) Feature	HEPA, active carbon net,Sensor, touch screen,remote control


l Basic Function:
1) Ozone output: 500 mg/h
2)Negative-ion output: 5*106 pcs/cm3
3) UV lamp power: 5W
4) HEPA nets , active carbon nets
5)3 grades air volume adjustment
6)Temperature and humidity sensor
7)Air quality induction.
8)Air volume working state display,
 LCD display temperature and humidity,
 Air quality status display touchable screan control.
9)Timing function
10) Sensor, touch screen
11) remote control

Package
1PC/CTN
Master CTN size: 373*243*690mm
20'FCL: 447 PCS
40'FCL: 959 PCS

CE RoHS FCC certification:

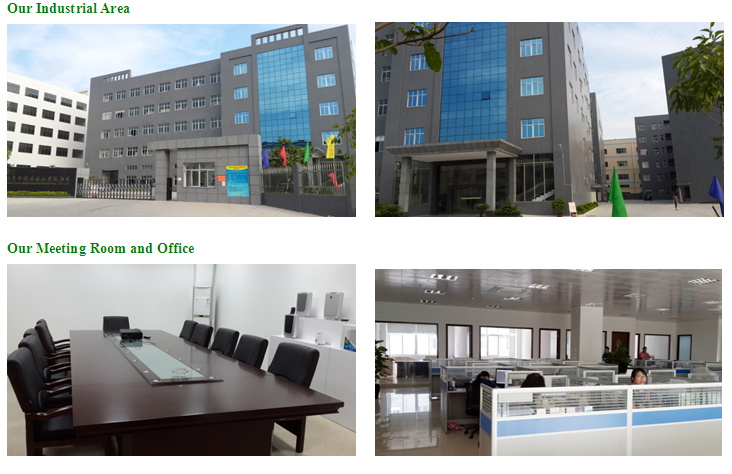

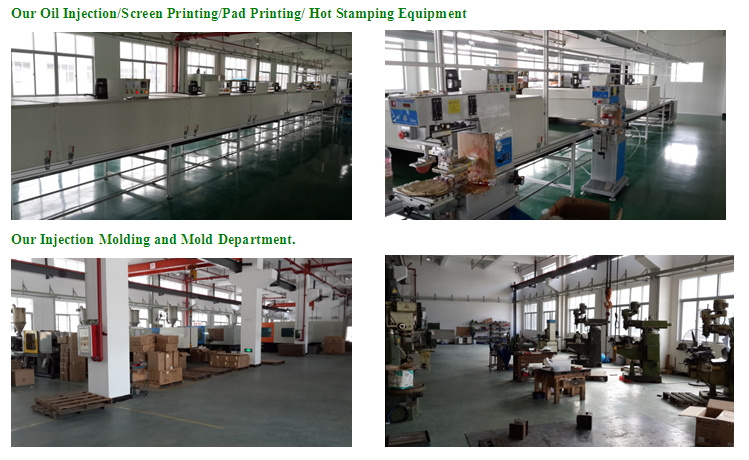

Factory:
