| Prod Model: |
FSB-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Built-in |
| Use: |
Freezer |
| Material: |
Stainless Steel |
| Style: |
Chest |
| Climate Type: |
T |
| Capacity: |
>300L |
| Door: |
Single |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
| Condition: |
New |
Product Description
Operation:

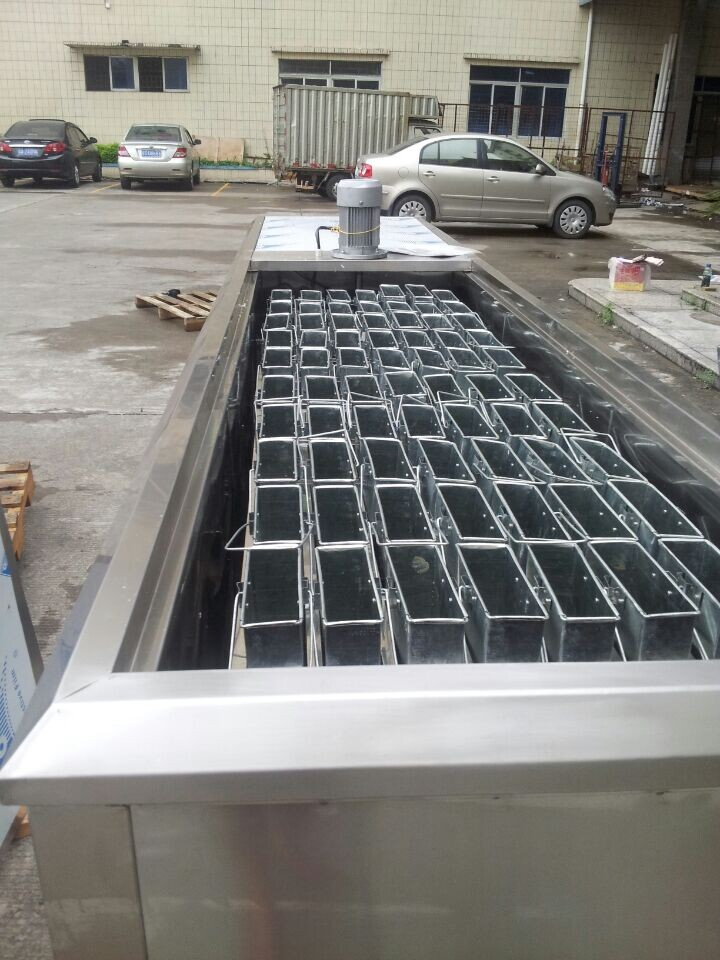

1. Adjust the machine. Make salty water as secondary refrigerant according with user manual. Fill water into ice moulds. Turn on the machine.
2. After ice block is frozen, take out the ice moulds and sink them into an unfreezing tank. Turn the ice moulds up side down and pour ice block out of the moulds. Carry the ice blocks into ice storage cool room.
3. Put the ice moulds back into the machines. Fill water in them and start the second batch.
| Model | Dimension | Power | France compressor | Capacity | Net weight |
| FSB-1 | 650x500x1200mm | 220V 50hz
6kw | 3 hp | 1ton/day | 1200kg |
| FSB-2 | 850x500x1200mm | 220v 50hz 8kw | 6 hp | 2tons/day | 1400kg |
| FSB-3 | 1100x500x1200mm | 220v 50hz 12kw | 9 hp | 3tons/day | 1600kg |
| FSB-4 | 1200x500x1200mm | 220v 50hz 16kw | 12 hp | 4tons/day | 1800kg |
| FSB-5 | 1400x500x1200mm | 380V/ 50Hz
3 Phase 20kw | 15 hp | 5tons/day | 2000kg |
Specifications
1.durable ice block machine 2.adopt famous compressor
maikeku high-quality ice block machine
model: MKK-1
output: 1000kg/d
refrigeration: R22
Cooling way: water
Net weight: 1200kg
the types of the ice block
| 5kg | 200*80*560(mm) |
| 10kg | 220*80*560(mm) |
| 15kg | 175*120*800(mm) |
| 20kg | 230*120*800(mm) |
| 25kg | 260*120*800(mm) |
characteristics
1. Professional control system
2. Auto-operation and auto-cleaning
3. Over current protection and Low voltage protection
4. Freezing cylinder prevent and protection
About us
Dongguan Maikeku industrial co., LTD is a professional refrigerant equipment manufacturer, the leader of ice cream &frozen yogurt machine manufacturer in China.We have patent product bulking machine, meanwhile ice cream machine, ice cream powder, slush machine, ice cream display cabinets, cake showcase, ice making machine, paper cup machine, paper bowl machine, ice block machine, ice lolly machine are our main products.
our service
1.Guarantee: one year
2. After-sales team offer technology support anytime and anywhere
Please feel free to contact with us!!
