| Prod Model: |
ADL-SP-58/1800-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used: |
Bathroom and Swimming Pool |
| Tank Capacity: |
200-500L |
| Inner Tank Material: |
Sus304-2b Food Grade Stainless Steel |
| Outer Material Of Manifold: |
Aluminum Alloy, 2.0mm |
| Frame Material: |
Aluminum Alloy, 2.5mm |
| Insulation Of Solar Collector: |
Rock Wool |
| Header Pipe: |
Copper, 1.0mm |
| Heat Pipe: |
Copper, 0.6mm |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
Solar Keymark, SRCC |
Product Description
SPECIFICATIONS OF SOLAR WATER HEATER SYSTEM
1. EN12975 & solar key mark, SRCC
2. Anti-freezen & pressurized
3. 15 Years Warranty for vacuum tube
4. Delivery: 20 days after the payment
SPLIT PRESSURIZED SOLAR WATER HEATER FEATURE:
1. Solar water heater with SOLAR KEYMARK certificate
2. Special high quality insulated material to reducing the heat loss rate
3. High quality heat pipe for efficient heat transferring and long life span. Of the solar water heater
4. Exquisite workmanship to guarantee the decent appearance
5. Certificate: Solar key mark, EN12975, CCC, CE, ISO
6. Can connected with the exsiting oil heater or gas heater
7. Long life span and no extra cost after installation
8. Easy opearation

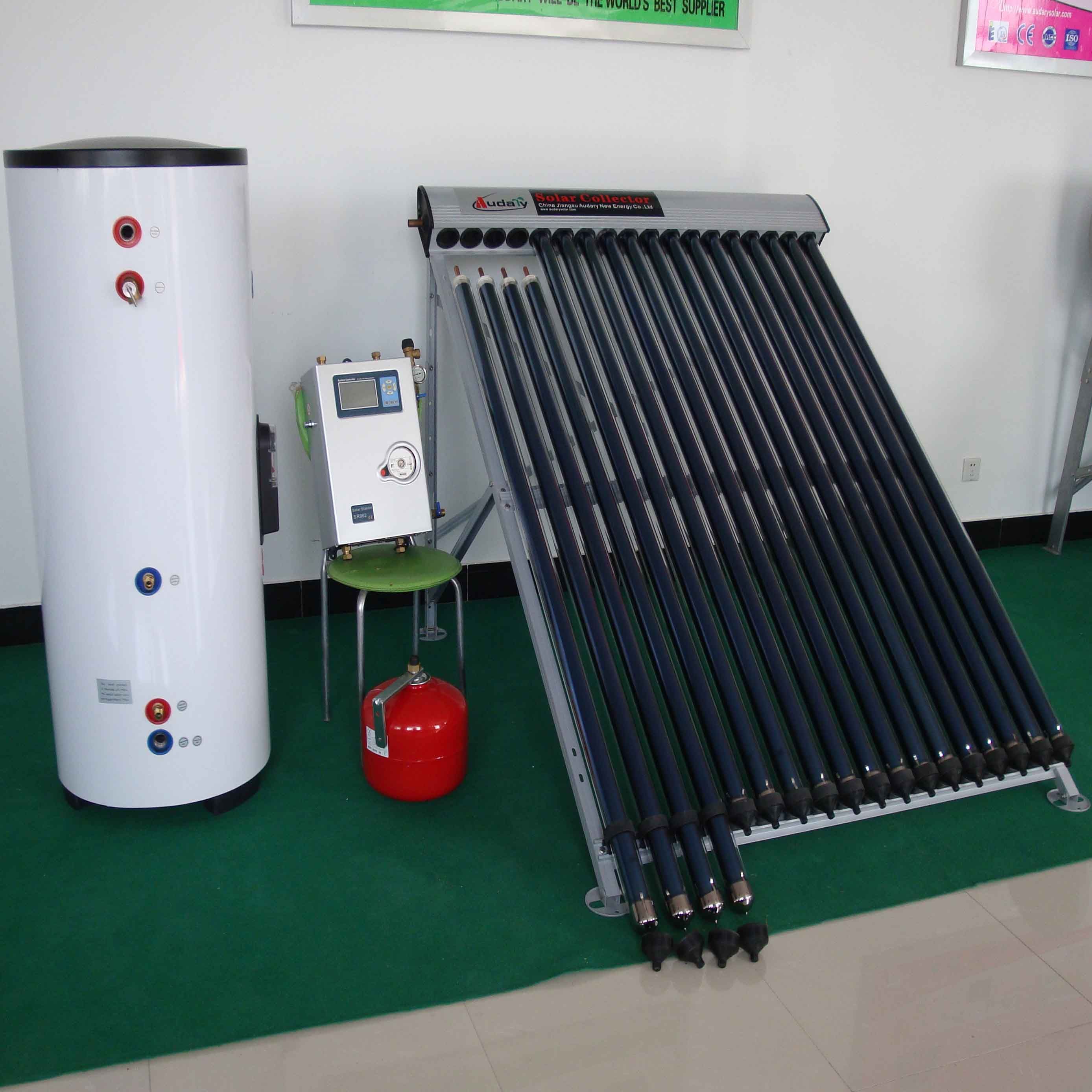

SPLIT PRESSURIZED SOLAR WATER HEATER SPECIFICATIONS:
1) Model No.: AUDARY(complete set)
2) Consist of solar collector, water tank/boiler, circulation pump, expansion evessel, controller, flowing meter, pressure gauge
3) Capacity: 150L, 200L, 250L, 300L, 400L, 500L
4) Working temperature: 99 celsius degree
5) Working pressure: 1.0MPa (10 bar)
6) Vacuum tube: D58, L1800mm
7) Absorber Area: 1.92m² /2.57m² /3.22m² /3.86m² , 4.65 m² , 7.76 m²
8) Cold resistance: -30
9) Stagnation temperature (° C): 300
10) Tube Hail Resistance ≤ 25mm
SPLIT PRESSURIZED SOLAR WATER HEATER PACKING:
1) Standard export packing for full container quantity
2) Special packing for sample orders
SOLAR COLLECTOR
|
Model name |
ADL-58/1800-10 |
ADL-58/1800-15 |
ADL-58/1800-20 |
ADL-58/1800-24 |
ADL-58/1800-30 |
|
Number of tubes |
10 |
15 |
20 |
25 |
30 |
|
Gross area(M2) |
1.67 |
2.29 |
3.05 |
3.8 |
4.67 |
|
Aperture area(M2) |
0.96 |
1.44 |
1.92 |
2.4 |
2.88 |
|
Weight empty(KG) |
41 |
56 |
68 |
82.5 |
99.5 |
|
Heat transfer medium |
pure water/glycol |
pure water/glycol |
pure water/glycol |
pure water/glycol |
pure water/glycol |
|
Working pressure |
6 Bar |
6 Bar |
6 Bar |
6 Bar |
6 Bar |
|
Max testing pressure |
12 Bar |
12 Bar |
12 Bar |
12 Bar |
12 Bar |
|
Max working temperaturer |
245 ° C |
245 ° C |
245 ° C |
245 ° C |
245 ° C |
|
Normal working temperaturer |
-35 ° C |
-35 ° C |
-35 ° C |
-35 ° C |
-35 ° C |
|
Min working temperature(If need) |
-60 ° C |
-60 ° C |
-60 ° C |
-60 ° C |
-60 ° C |
|
Inlet/outlet connection |
22mm |
22mm |
22mm |
22mm |
22mm |
|
Manifold packing(mm) |
1*920*195*150 |
1*1295*195*150 |
1*1670*195*150 |
1*1970*195*150 |
1*2420*195*150 |
FRAME
packing(mm) |
1*2030*120*120 |
1*2030*120*120 |
1*2030*120*120 |
1*2030*120*120 |
1*2270*150*120 |
|
Certificate |
EN12975-SOLAR KEYMARK, SRCC, |
EN12975-SOLAR KEYMARK, SRCC, |
EN12975-SOLAR KEYMARK, SRCC, |
EN12975-SOLAR KEYMARK, SRCC, |
EN12975-SOLAR KEYMARK, SRCC, |
|
|
|
Material |
|
|
Vacuum tube |
high borosilicate glass(58mm*1800mm) |
|
Coating |
SS-CU-AIN/ALN |
|
Heat pipe material |
TU1 copper |
|
Heat pipe length |
1790mm |
|
Heat pipe diameter |
condenser dia14mm, body dia 8mm |
|
Manifold header pipe |
TP2 copper dia 35mm |
|
Manifold casing |
anodized aluminum alloy |
|
Insulation |
rock wool with polyurethane foam |
|
Bracket |
Aluminum alloy |
|
Tube holder |
UV stabilized nylon |
|
Seals |
silicon seal |
|
Contact sheets |
aluminum fin |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
