| Prod Model: |
JJL |
| Solar Water Heater: |
200L Pressure Pre-Heated Solar Water Heater |
| Solar Water Heater Inner Tank: |
SUS304, SUS316, 0.4mm |
| Solar Water Heater Outer Tank: |
Galvanized/Color, Powder Coated, Stainless |
| Accessories For Opition: |
Assistant Tank, Magnesium Rod, Solar Controller |
| Tank Capacity Opition: |
100L, 120L, 150L, 180L, 200L, 250L, 300L, 360L |
| Solar Stand/Bracket/Support Material: |
Galvanized/Powder Coated /Aluminium/SUS201/SUS304 |
| Copper Coil Length: |
24m, 30m, 35m, 40m |
| Product: |
200L Pressure Pre-Heated Solar Water Heater |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |
Product Description
200L Pressure Pre-heated Solar Water Heater
We manufacturer of solar water heater more then 15years in China.
Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc.
Product Description:
1. Inner tank: SS304 stainless steel 0.5mm thick
2. Outer tank: SS304 stainless steel 0.4mm thick
3. Bracket: Zincification painting color black

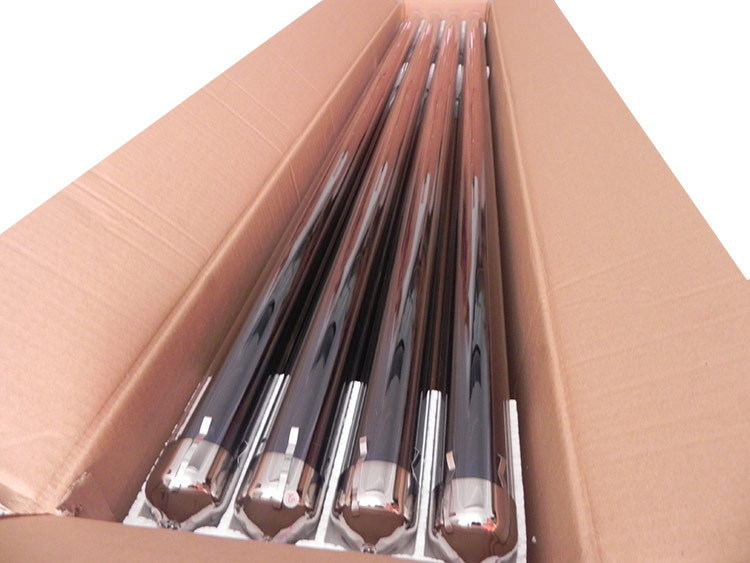

4. Solar vacuum tube:
A) Size: 58 x 1, 800mm
B) Qty: 20 / 24 / 30 PCS (copper coil: 20, 25, 30meter)
5. Temperature insulation layer: 5.5cm imported polyurethane, keep same temperature and high pressure foam
6. Tank diameter: 460mm
7. Temperature using range: Solar water heater can be used above 20 degrees below zero, in the case there is electrical heater to keep the water heat).
| Model | Dia. of tube | Length of tube | Quantity of tubes | Capacity(L) | Loading40HQ |
| JIJ5818-20-HPC | 58mm | 1800mm | 20 | 192 | 92 |
| JIJ5818-24-HPC | 58mm | 1800mm | 24 | 229 | 78 |
| JIJ5818-30-HPC | 58mm | 1800mm | 30 | 286 | 68 |
